EX200-2 1013981 Hitachi Planetary Gear Parts Travel Gearbox Gear Ring
EX200-2 1013981 Hitachi Planetary Gear Parts Travel Gearbox Gear Ring
EX200-2 1013981 Hitachi Planetary Gear Parts Travel Gearbox Gear Ring
EX200-2 1013981 Hitachi Planetary Gear Parts Travel Gearbox Gear Ring
EX200-2 1013981 Hitachi Planetary Gear Parts Travel Gearbox Gear Ring
EX200-2 1013981 Hitachi Planetary Gear Parts Travel Gearbox Gear Ring
Specifications
Brand Name :
Belparts
Model Number :
EX200-2 EX200K-2 EX200K-2
Certifiion :
OEM
Place of Origin :
China
MOQ :
1PC
Price :
Negotiated price
Payment Terms :
T/T, trade assurance,,Paypal
Supply Ability :
1000 pieces per month
Delivery Time :
Within 2 working days
Packaging Details :
Wooden /Carton/Standard shipping package
Product name :
planetary gear
Machine moldel :
EX200-2 EX200K-2 EX200K-2
Part number :
1013981
Quality :
After market
MOQ :
1PC
Warranty :
3 months
Description

EX200-2 1013981 Hitachi Planetary Gear Parts Travel Gearbox Gear Ring

Description

Appliion Excavator
Part name Travel Gearbox Gear Ring
Model Hitachi
Model EX200-2 EX200K-2 EX200K-2
MOQ 1PC
Warranty 3 months
Part number 1013981
Delivery Time Within 2 days after receiving the payment

Pictures

EX200-2 1013981 Hitachi Planetary Gear Parts Travel Gearbox Gear Ring

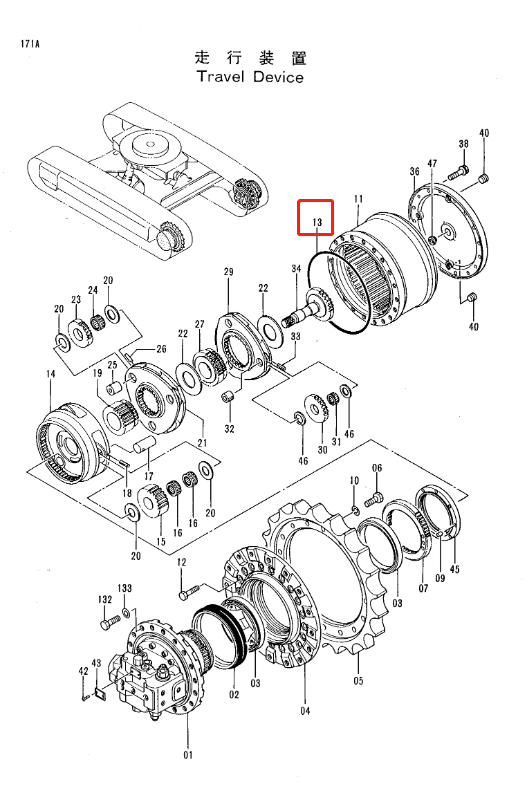

Drawing of the planrtary gear
EX200-2 1013981 Hitachi Planetary Gear Parts Travel Gearbox Gear Ring

List of spare parts

Pos. Part No Qty Parts name Comments
01-47. 9116393 [2] TRAVEL DEVICE ASS'Y
01. 9116390 [1] MOTOR;OIL
02. 4114753 [1] SEAL;GROUP
03. 4246793 [2] BRG.;ROL.
04. 1013983 [1] DRUM
05. 1010203 [1] SPROCKET
06. J932055 [16] BOLT
07. 3047448 [1] HUB
09. 4246783 [1] PIN;KNOCK
10. A590920 [16] WASHER;SPRING
11. 1013981 [1] GEAR;RING
12. J931660 [20] BOLT
13. 4246792 [1] O-RING
14. 1013980 [1] CARRIER
15. 3047444 [3] GEAR;PLANETARY
16. 4210850 [6] BRG.;NEEDLE
17. 4246790 [3] PIN
18. 4116309 [3] PIN;SPRING
19. 3047443 [1] GEAR;SUN
20. 4269295 [12] PLATE;THRUST
21. 1013979 [1] CARRIER
22. 4246785 [2] SPACER
23. 3047446 [3] GEAR;PLANETARY
24. 4246786 [3] BRG.;NEEDLE
25. 4246789 [3] PIN
26. 4246358 [3] PIN;SPRING
27. 3047442 [1] GEAR;SUN
29. 1013982 [1] CARRIER
30. 3047447 [3] GEAR;PLANETARY
31. 4246787 [3] BRG.;NEEDLE
32. 4246788 [3] PIN
33. 4192020 [3] PIN;SPRING
34. 2028213 [1] SHAFT;PROP.
36. 2028212 [1] COVER
38. J011230 [16] BOLT;SEMS
40. 4245797 [3] PLUG
42. M492564 [2] SCREW;DRIVE
43. 3053559 [1] NAME-PLATE
45. 3057125 [1] NUT
46. 4192983 [6] PLATE;THRUST
47. 4285323 [1] PIN;STOPPER
132. 4248607 [28] BOLT
133. 4018545 [28] WASHER
FAQ

1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.

2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.

3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.

4.When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.

5.How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.

About company

Exhibition

EX200-2 1013981 Hitachi Planetary Gear Parts Travel Gearbox Gear Ring

Excavator parts

EX200-2 1013981 Hitachi Planetary Gear Parts Travel Gearbox Gear Ring

Delivery

EX200-2 1013981 Hitachi Planetary Gear Parts Travel Gearbox Gear Ring

Packaging Details:

1.According to orders,pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside
6.Using wooden package.
7.We support the custom-made demand for package

Our advantage

1. Quality and delivery under control.
2. Original packing, neutral packing or customized packing.
3. Our price is very competitive compared with other suppliers'.
4. If you only can supply the part No. No problem, just send thepart no. to me, I will give you the right product. We have a good system about part No
5. More than 10 years of professional manufacture experience.
6. Small order allowed
