Specifications
Place of Origin :
Guangdong, China
Brand Name :
Haide
Model Number :
PC200/PC210/PC240/PC300/PC350/PC360/PC400/PC450/PC600/PC650/PC800
MOQ :
1
Maximum length :
34m
Applicable tonnage :
10ton to 350ton
Surface finish :
Sand-blasted and painted
Material options :
Q345B, Q690D, Weldox
Total length :
13000mm to 24000mm
Weight :
3000kg to 7000kg
Max dig depth :
9000mm to 18000mm
Max extensiveScope :
12500mm to 23600mm
Max dig height :
11300mm to 17300mm
Folding height :
2900mm to 3400mm
Bucket volume :
0.3m3 to 0.6m3
Excavator tonnage :
12ton to 45ton
Accessory included :
bucket, linkage, bucket cylinder, oil pipe/hose, lubriing system
Production leadtime :
15 days for 1 set, 20 days for 3 sets
Container capacity :
3 complete sets
Description
CE-approved PC Long Reach Boom and Arm
Product Specifiions
Attribute Value
Purpose Long reach appliion for excavator
Excavator model Any make and model of excavator
Colour Optional
Certifie CE and ISO certifie
Accessory included bucket, linkage, bucket cylinder, oil pipe/hose, lubriing system
Maximum length 34m
Surface finish Sand-blasted and painted
Applicable excavator tonnage From 10ton to 350ton
OEM service Available
Warranty 6 months
Product Features
  • Compatible with all makes and models of excavators
  • Standard supply includes: bucket, linkage, bucket cylinder, 4 oil pipes/hoses, 6 pins, and lubriing system
  • Multiple material options available (Q345B, Q690D, Weldox) to suit specific appliions
  • Large boom can be split into two sections for container transport
  • All steel plate edges are tapered by bevelling machine before welding for enhanced strength
  • One year warranty included
  • Reinforced construction available for heavy-duty appliions like mining operations
  • Compliant with Europe Machinery Directive 2006/42/EC Article 12 with CE certifiion
  • Additional pipeline can be installed for extra attachments (breaker, hammer, quick coupler, etc.)
  • Established references in Australia, Europe, India, Bangladesh, Canada, South-east Asia, and South America
Certifiion & Documentation

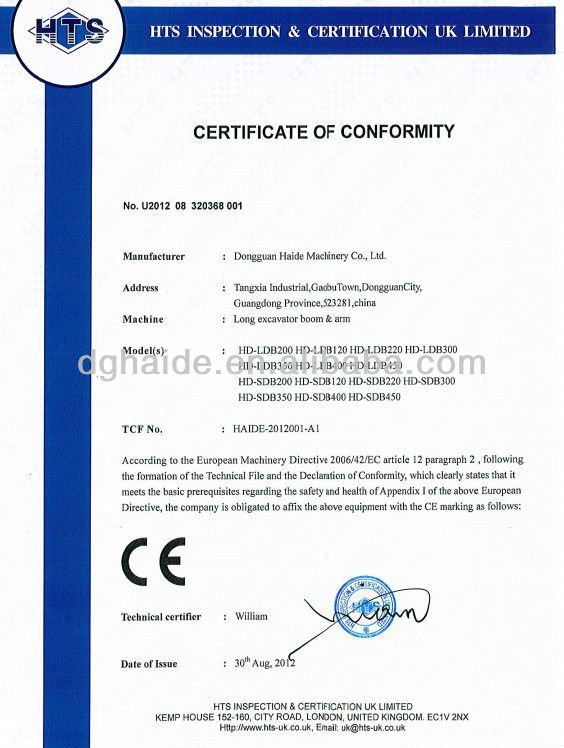

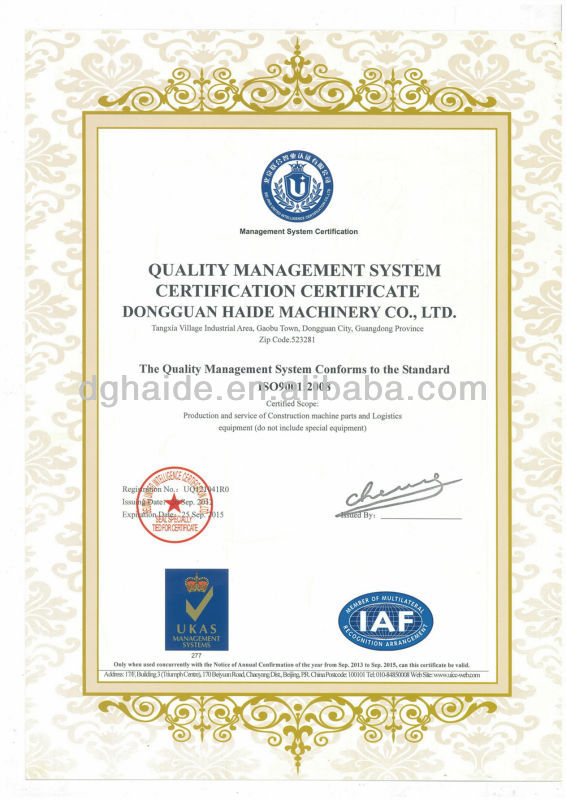

  • CE and ISO certifies provided
  • Detailed product brochure available in PDF format
Packaging & Shipping

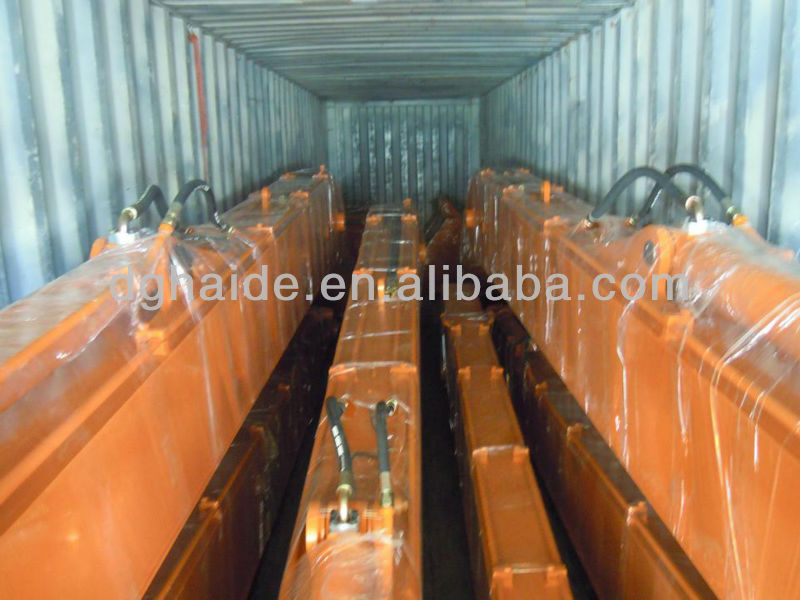

  • Initial protective film wrapping with steel wire securing inside containers

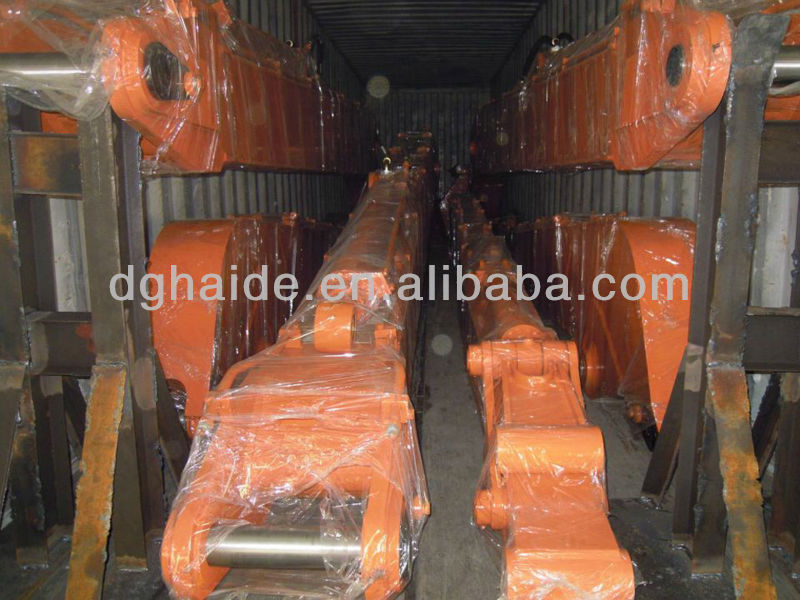

  • Three complete sets can be loaded per container using racks for upper sets
  • Production lead time: 15 days for 1 set, 20 days for 3 sets
Standard Models
Model LDB120 LDB200 LDB220 LDB300 LDB350 LDB400 LDB450
Total length(mm) 13000 15380 15380 18000 20000 22000 24000
Weight(kg) 3000 4000 4200 5200 6000 6500 7000
Max dig depth(mm) 9000 11340 11370 13000 15000 16500 18000
Max extensiveScope (mm) 12500 15100 15100 17600 19600 21600 23600
Max dig height(mm) 11300 12510 12610 13720 14920 16100 17300
Folding height(mm) 2900 2980 3040 3210 3210 3400 3400
Bucket volume(m3) 0.3 0.4 0.4 0.4 0.5 0.6 0.6
Excavator Tonnage(ton) 12 20 22 30 35 40 45
