Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D
Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D
Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D
Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D
Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D
Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D
Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D
Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D
Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D
Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D
Specifications
Material :
Q345B&Q690D
Surface finish :
Sand-blasted and painted
Boom length :
8.6meters
Arm length :
6.9meters
Total length :
13000-24000mm
Weight :
3000-7000kg
Max dig depth :
9000-18000mm
Max extensiveScope :
12500-23600mm
Max dig height :
11300-17300mm
Folding height :
2900-3400mm
Bucket volume :
0.3-0.6m3
Excavator tonnage :
12-45ton
Welding gas :
80% Argon, 20% CO2
Bushing material :
Copper with graphite
Seam preparation :
45 degree tapered
Place of Origin :
Guangdong, China
Brand Name :
Pile driving machine
Model Number :
SY235/SY265/SY335/SY485
Certifiion :
ISO9001:2008 and CE
MOQ :
1
Description

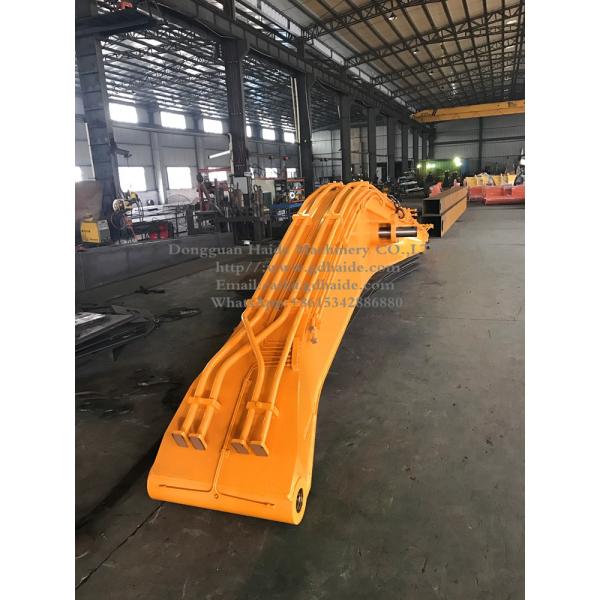

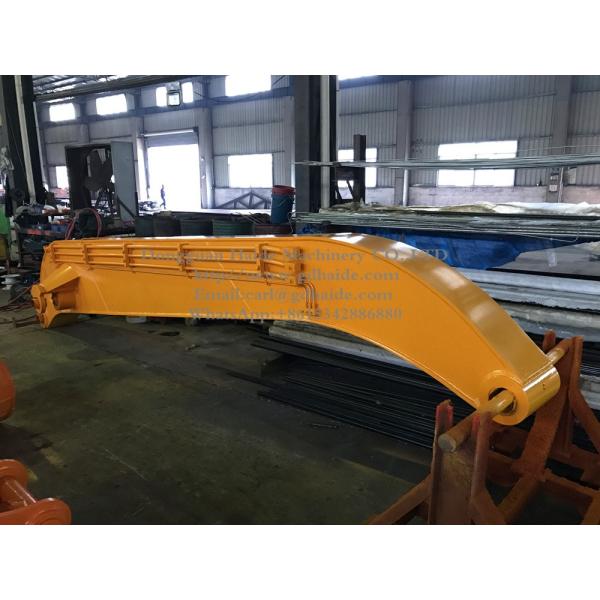

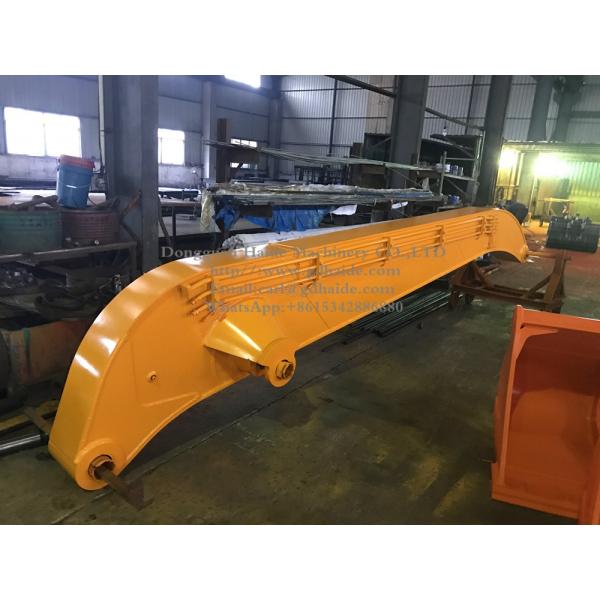

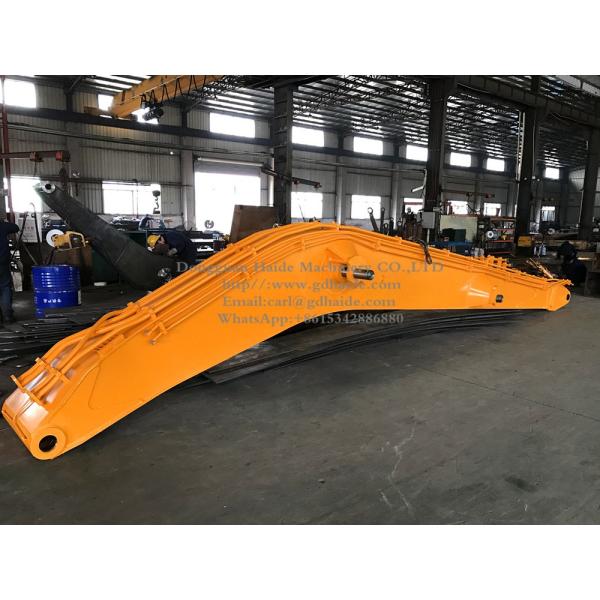

Excavator Long Boom and Arm for Pile Driving/Driver
Product Specifiions
Material Q345B & Q690D
Appliion Used excavator
Surface Finish Sand-blasted and painted
Warranty 6 months
Length of Long Boom 8.6 meters
Length of Long Arm 6.9 meters
Product Description

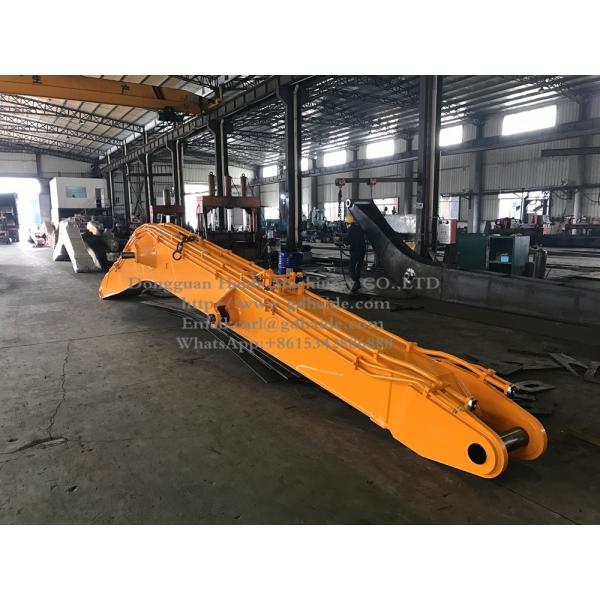

SANY excavator pile driving boom and arm is designed for extended reach and heavy-duty pile driving appliions.
  • Compatible with all makes and models of excavators
  • Standard supply includes: bucket, linkage, bucket cylinder, 4 oil pipes/hoses, 6 pins, and lubriing system
  • Multiple material options available (Q345B, Q690D, Weldox) to suit specific appliions
  • Two-piece boom design for easier container shipping

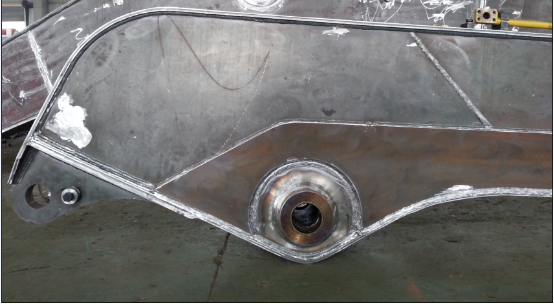

  • 45-degree tapered seams for superior welding quality
  • Optional boom cylinder and arm cylinder available
  • Customizable with additional pipelines for specialized appliions
  • Capable of producing booms up to 32m in length
Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D
Model Specifiions
Model LDB120 LDB200 LDB220 LDB300 LDB350 LDB400 LDB450
Total length (mm) 13000 15380 15380 18000 20000 22000 24000
Weight (kg) 3000 4000 4200 5200 6000 6500 7000
Max dig depth (mm) 9000 11340 11370 13000 15000 16500 18000
Max extensiveScope (mm) 12500 15100 15100 17600 19600 21600 23600
Max dig height (mm) 11300 12510 12610 13720 14920 16100 17300
Folding height (mm) 2900 2980 3040 3210 3210 3400 3400
Bucket volume (m³) 0.3 0.4 0.4 0.4 0.5 0.6 0.6
Excavator Tonnage (ton) 12 20 22 30 35 40 45
Production Processes

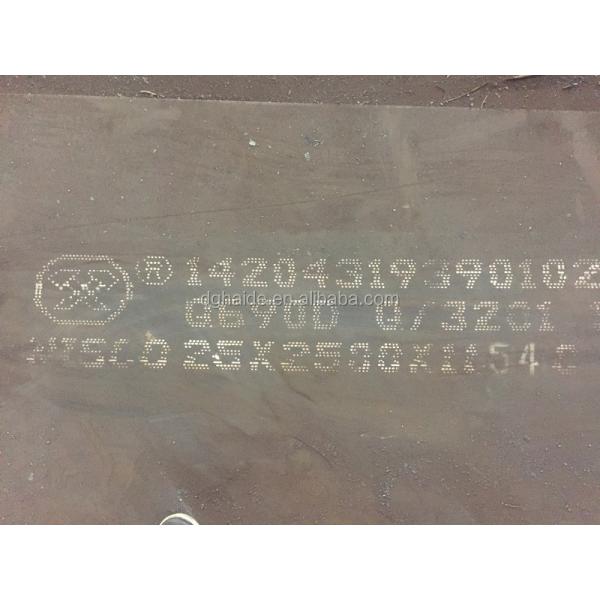

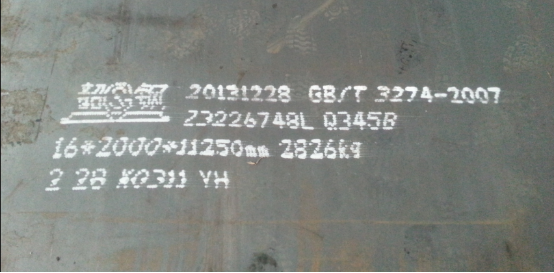

Material: Q345B and Q690D - Top and bottom use Q690D steel, other parts use Q340B steel.
Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D

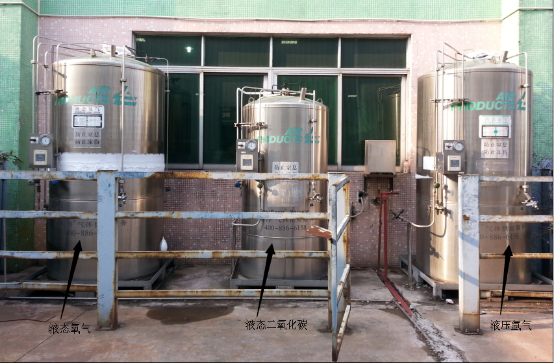

Welding: Performed with mixed gas (80% argon, 20% carbon dioxide) for optimal results.
Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D

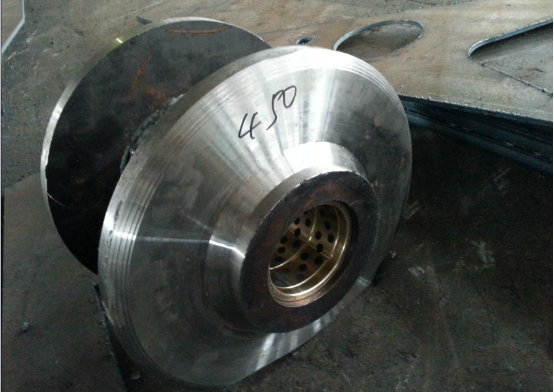

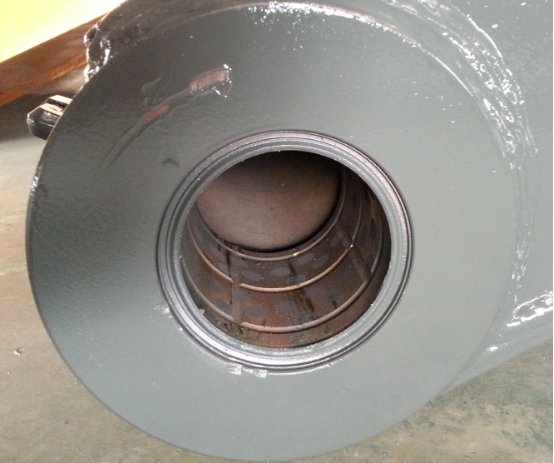

Bushing: Copper bushings with graphite for enhanced durability and performance.
Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D

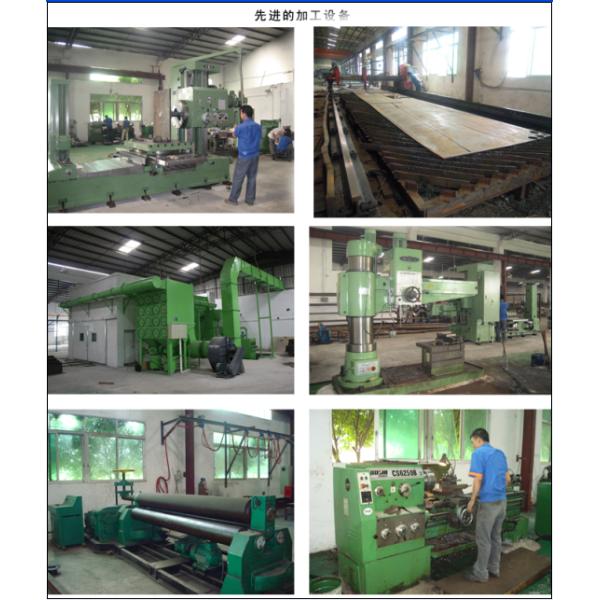

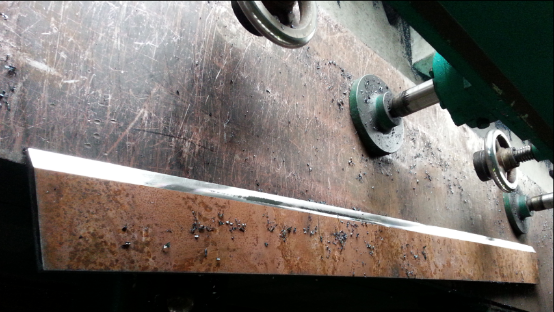

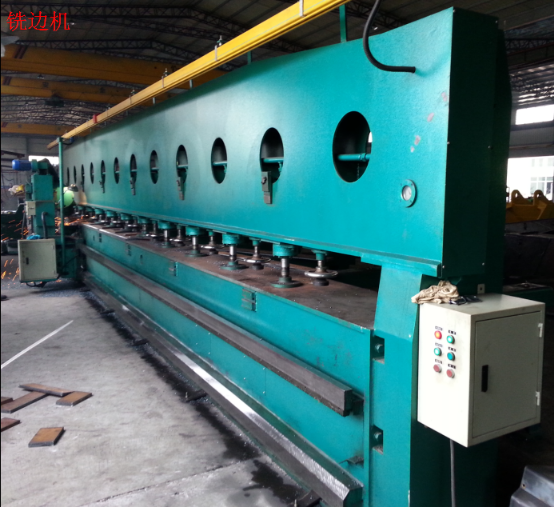

Edge Preparation: Milling machines prepare strip edges and grooves to ensure optimal forming and welding conditions.
Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D Excavator Pile Driving Boom and Arm 8.6m Q345B Q690D
