PC350 22m Long Reach Excavator Boom Arm Q345B Q690D
PC350 22m Long Reach Excavator Boom Arm Q345B Q690D
PC350 22m Long Reach Excavator Boom Arm Q345B Q690D
PC350 22m Long Reach Excavator Boom Arm Q345B Q690D
PC350 22m Long Reach Excavator Boom Arm Q345B Q690D
PC350 22m Long Reach Excavator Boom Arm Q345B Q690D
PC350 22m Long Reach Excavator Boom Arm Q345B Q690D
PC350 22m Long Reach Excavator Boom Arm Q345B Q690D
PC350 22m Long Reach Excavator Boom Arm Q345B Q690D
PC350 22m Long Reach Excavator Boom Arm Q345B Q690D
Specifications
Place of Origin :
Guangdong, China
Brand Name :
PC350 22meters long reach boom and arm for sale
Model Number :
PC350 LONG REACH BOOM
Certifiion :
ISO9001:2008 and CE
MOQ :
1
Material :
Q345B&Q690D
Boom length :
12000mm
Arm length :
10000mm
Bucket volume :
0.6m3
Max digging depth :
16500mm
Surface finish :
Sand-blasted and painted
Total length :
22000mm
Weight :
6500kg
Max extensiveScope :
21600mm
Max dig height :
16100mm
Folding height :
3400mm
Excavator tonnage :
45 ton
Welding gas mix :
80% argon, 20% CO2
Bushing material :
Copper with graphite
Edge preparation :
Milling machines
Description
CE-Approved Long Excavator Boom Arm for PC350
Product Specifiions
Attribute Value
Material Q345B & Q690D
Appliion Used excavator
Surface finish Sand-blasted and painted
Warranty 12 months after installation
Length of long boom 12000mm
Length of long arm 10000mm
Bucket 0.6m³
Max digging depth 16500mm
Product Features
  • Compatible with all makes and models of excavators
  • Standard package includes bucket, linkage, bucket cylinder, 4 oil pipes/hoses, 6 pins, and lubriing system
  • Multiple material options available (Q345B, Q690D, Weldox) to suit specific appliions

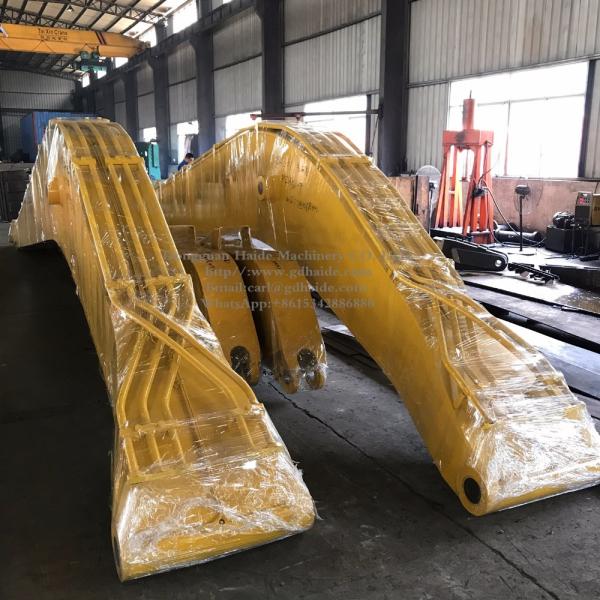

  • Two-piece boom design for container-friendly shipping
  • 45-degree tapered seams for optimal welding quality
  • 12-month warranty coverage
  • Reinforced construction options for heavy-duty appliions
  • Optional boom and arm cylinders available
  • Custom pipeline configurations for specialized appliions
  • Capable of producing booms up to 32m in length

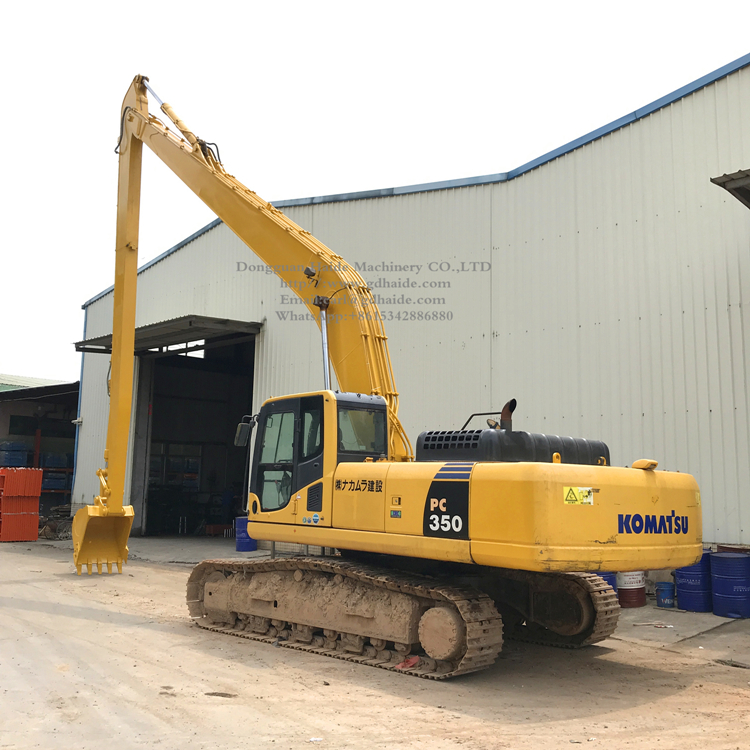

PC350 22m Long Reach Excavator Boom Arm Q345B Q690D PC350 22m Long Reach Excavator Boom Arm Q345B Q690D
Model Specifiions
Model LDB120 LDB200 LDB220 LDB300 LDB350 LDB400 LDB450
Total length(mm) 13000 15380 15380 18000 20000 22000 24000
Weight(kg) 3000 4000 4200 5200 6000 6500 7000
Max dig depth(mm) 9000 11340 11370 13000 15000 16500 18000
Max extensiveScope (mm) 12500 15100 15100 17600 19600 21600 23600
Max dig height(mm) 11300 12510 12610 13720 14920 16100 17300
Folding height(mm) 2900 2980 3040 3210 3210 3400 3400
Bucket volume(m³) 0.3 0.4 0.4 0.4 0.5 0.6 0.6
Excavator Tonnage(ton) 12 20 22 30 35 40 45
Manufacturing Process

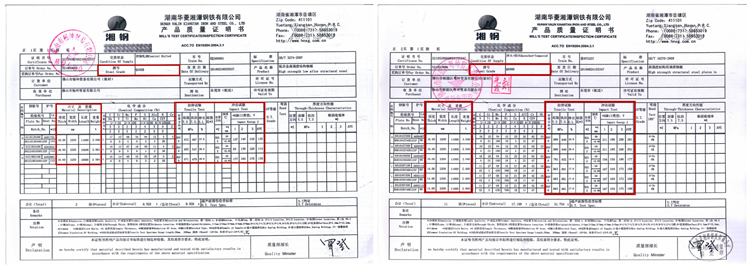

Material: Q345B and Q690D steel combination
Top and bottom sections use Q690D steel, with other components made from Q340B steel
PC350 22m Long Reach Excavator Boom Arm Q345B Q690D

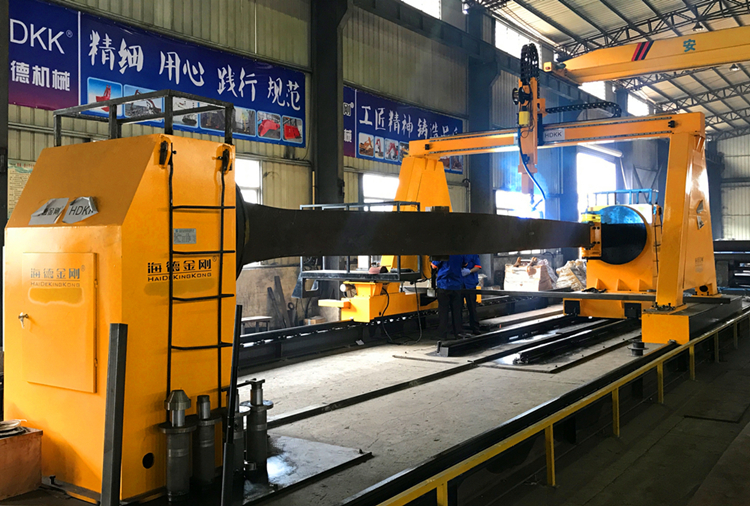

Welding: Mixed gas welding (80% argon, 20% carbon dioxide)
PC350 22m Long Reach Excavator Boom Arm Q345B Q690D PC350 22m Long Reach Excavator Boom Arm Q345B Q690D
Bushing: Copper bushing with graphite
PC350 22m Long Reach Excavator Boom Arm Q345B Q690D PC350 22m Long Reach Excavator Boom Arm Q345B Q690D PC350 22m Long Reach Excavator Boom Arm Q345B Q690D

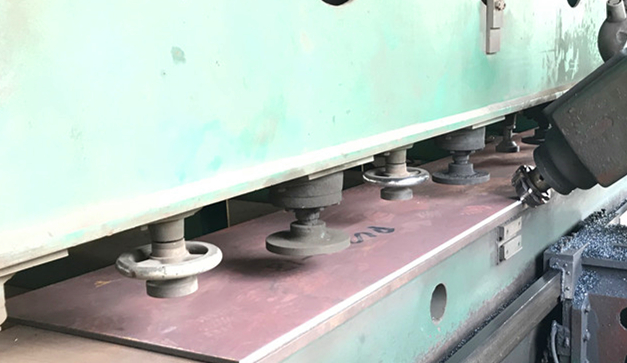

Edge Preparation: Milling machines used for precise strip edges and groove preparation
Ensures optimal conditions for forming and welding
PC350 22m Long Reach Excavator Boom Arm Q345B Q690D PC350 22m Long Reach Excavator Boom Arm Q345B Q690D
