Specifications
Certifiion :
CE, ISO9001: 2000, SGS
MOQ :
1
Model NO. :
HITACHI ZX200/EX200
Drive Type :
Internal Combustion Drive
Bucket Capacity :
0.5m3
Material :
Q345b (Sgc490)
Boom Length :
8220mm
Arm Length :
7160mm
Max Dig Depth :
11340mm
Max Extensive Scope :
15100mm
Max Dig Height :
12510mm
Folding Height :
2980mm
Excavator Tonnage :
20ton
Production Capacity :
1000set/Year
Total Length :
15380mm
Weight :
4000kg
Bucket Volume :
0.4m3
Description

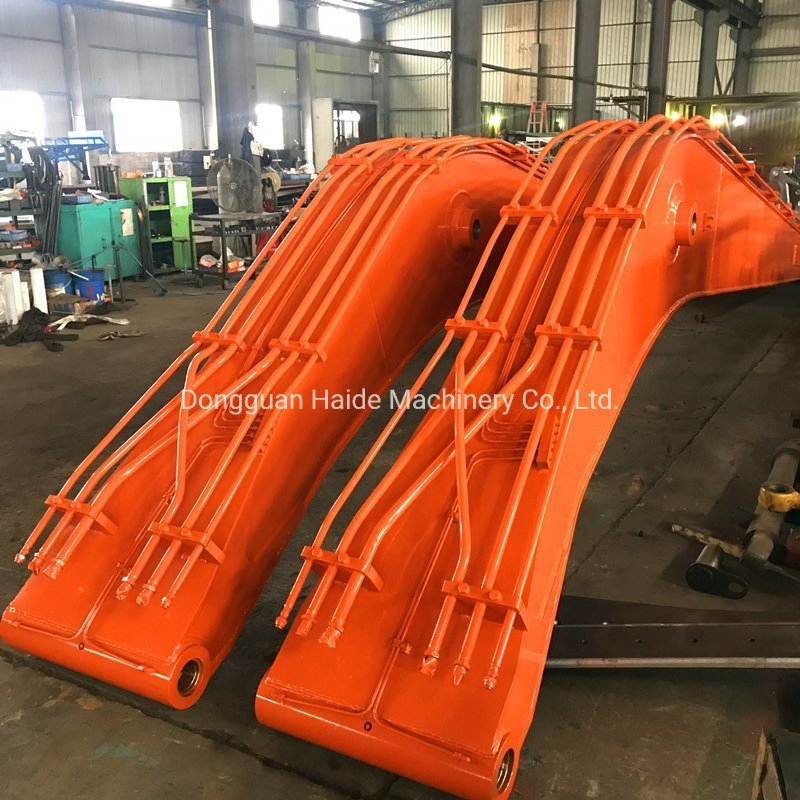

Hitachi ZX200/EX200 Excavator Long Reach Boom
High-performance excavator long reach boom and arm system designed for extended reach appliions.

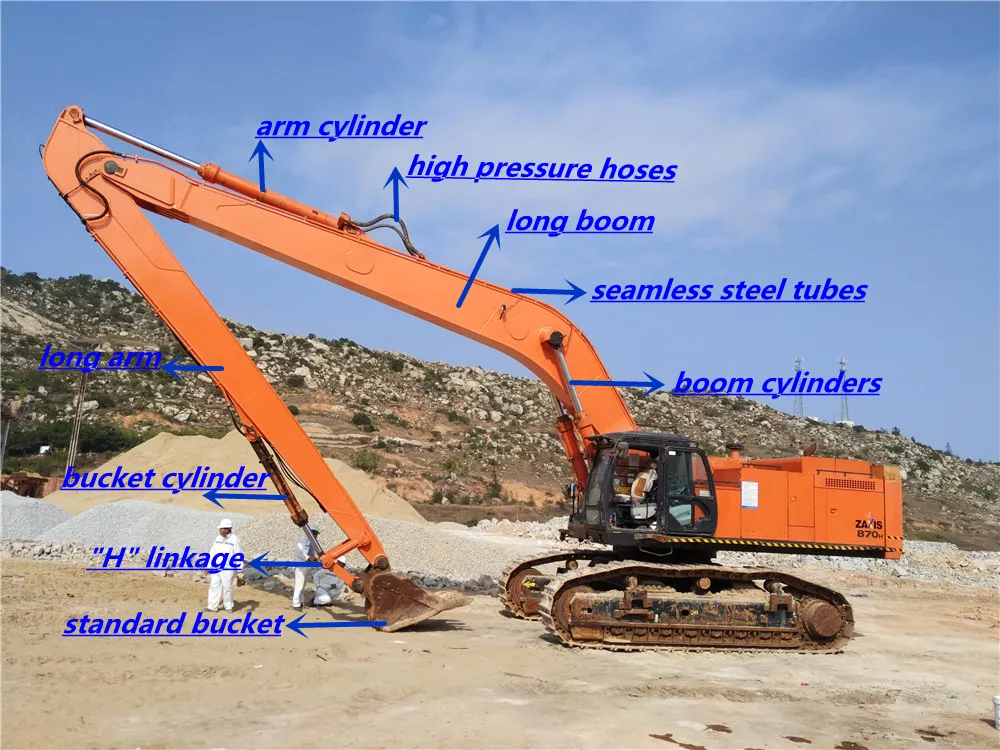

Specifiions and Standard Supply
Long boom: One unit
Long arm: One unit
Bucket cylinder: One unit
Standard bucket: One unit
Pins: 8 units
"H" linkage: One set
High pressure hoses: 4 units
Steel tube: 4 units
Boom cylinder: Use original cylinders
Arm cylinder: Use original cylinder
Manufacturer of Hitachi Zx200/Ex200 Excavator Long Reach Boom
Working Dimensions
Manufacturer of Hitachi Zx200/Ex200 Excavator Long Reach Boom
Model LDB120 LDB200 LDB220 LDB200 LDB300 LDB350 LDB400 LDB450
Total length (mm) 13000 15380 15380 18000 18000 20000 22000 24000
Weight (kg) 3000 4000 4200 4900 5200 6000 6500 7000
Max dig depth (mm) 9000 11340 11370 13000 13000 15000 16500 18000
Max extensive scope (mm) 12500 15100 15100 17500 17600 19600 21600 23600
Max dig height (mm) 11300 12510 12610 13720 13720 14920 16100 17300
Folding height (mm) 2900 2980 3040 3210 3210 3210 3400 3400
Bucket volume (m3) 0.3 0.4 0.4 0.4 0.4 0.5 0.6 0.6
Excavator tonnage (ton) 10-16 20-22 22-25 20-25 30 35 40 45
Key Features

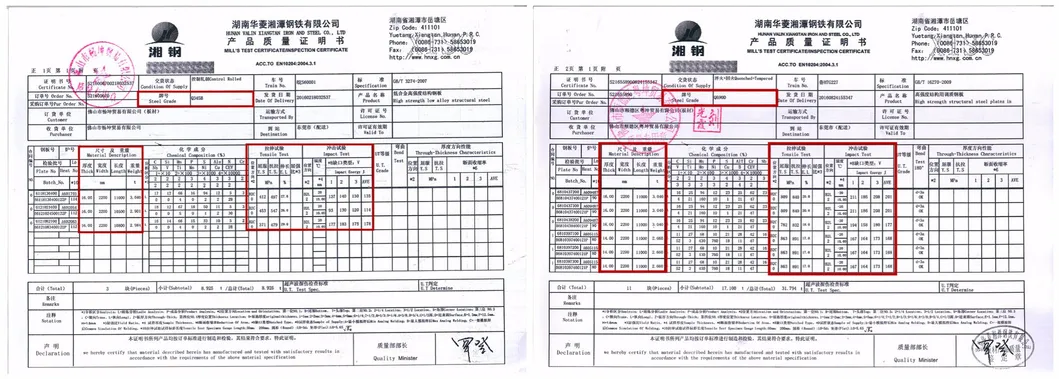

Material:
  • Standard long reach boom: All Q345B Steel (equivalent to S355 steel in Europe)
  • Heavy duty long reach (excavator tonnage above 40ton): Top and bottom use Q690D steel (equivalent to S690QL steel in Europe), other parts use Q340B steel
Manufacturer of Hitachi Zx200/Ex200 Excavator Long Reach Boom

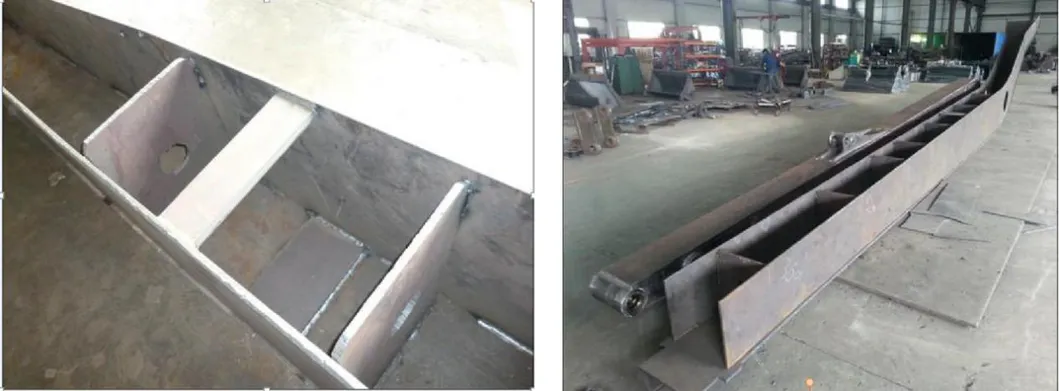

Internal Structure: Spaced by vertical and horizontal reinforcement plates at regular intervals
Manufacturer of Hitachi Zx200/Ex200 Excavator Long Reach Boom

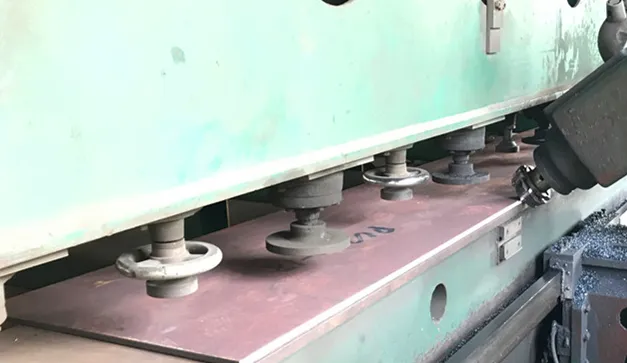

Precision Manufacturing: All steel plates are beveled by beveling machine before welding
Manufacturer of Hitachi Zx200/Ex200 Excavator Long Reach Boom
Welding Process:
  • Welded with mixed gas (80% argon, 20% carbon dioxide)

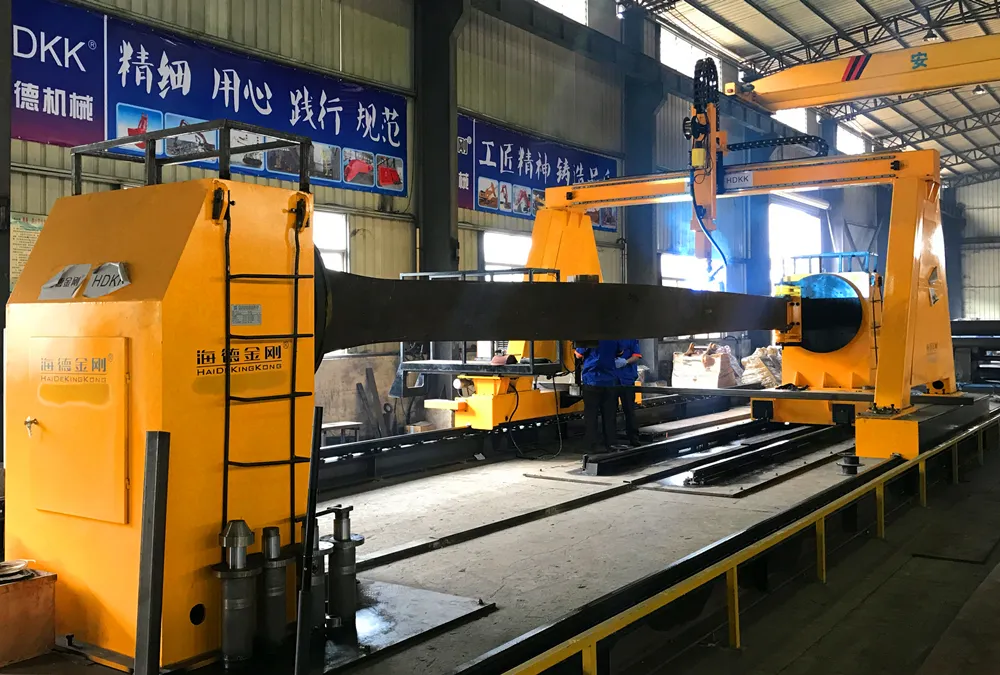

  • Precision welding by robotic welding machine
Manufacturer of Hitachi Zx200/Ex200 Excavator Long Reach Boom Manufacturer of Hitachi Zx200/Ex200 Excavator Long Reach Boom
