39Q8-42100 39Q8-42102 39Q8-42101 Hyundai Final Drive Fit R260-9 R290-9 R300-9
39Q8-42100 39Q8-42102 39Q8-42101 Hyundai Final Drive Fit R260-9 R290-9 R300-9
39Q8-42100 39Q8-42102 39Q8-42101 Hyundai Final Drive Fit R260-9 R290-9 R300-9
39Q8-42100 39Q8-42102 39Q8-42101 Hyundai Final Drive Fit R260-9 R290-9 R300-9
Specifications
Brand Name :
MENZEH GEARS
Model Number :
39Q8-42100 39Q8-42102 39Q8-42101
Certification :
CE
Place of Origin :
GUANGZHOU CHINA
MOQ :
1pc
Price :
Negotiated
Payment Terms :
Western Union, T/T, L/C,ALI PAY
Supply Ability :
500 pcs per Day
Delivery Time :
1-3 working Days
Packaging Details :
BOX, Wooden Case
Part Name :
Travel Gearbox
Part Number :
39Q8-42100 39Q8-42102 39Q8-42101
Used For :
R260-9 R290-9 R300-9
Condiction :
All New OEM
Warrenty :
3 Months
Shipping :
DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port :
Huangpu Guangzhou
High Light :
Repaired Parts Gearbox Retainer
After Warran :
Video technical support Online support Spare parts
Description

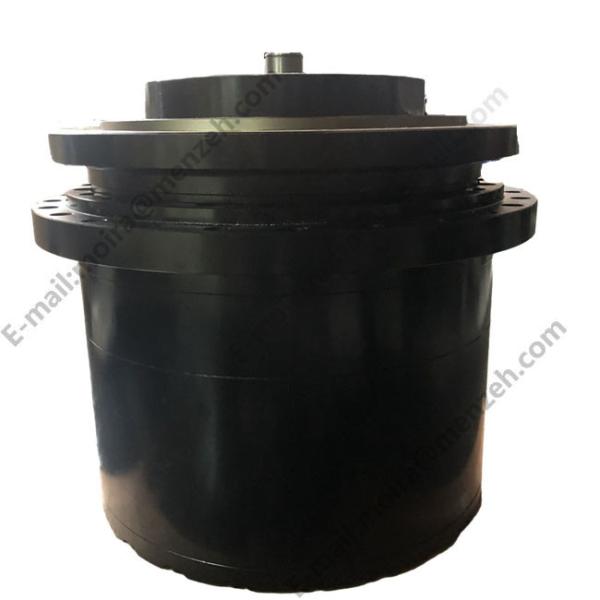

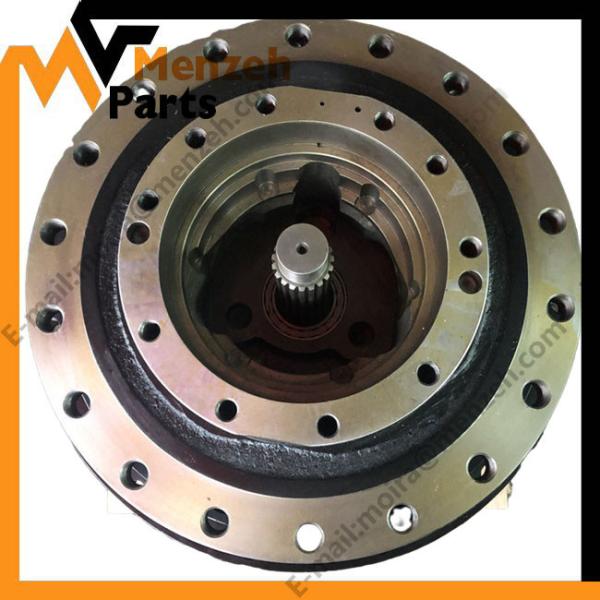

39Q8-42100 39Q8-42102 39Q8-42101 Travel Gearbox Fit Excavator R260-9 R290-9 R300-9

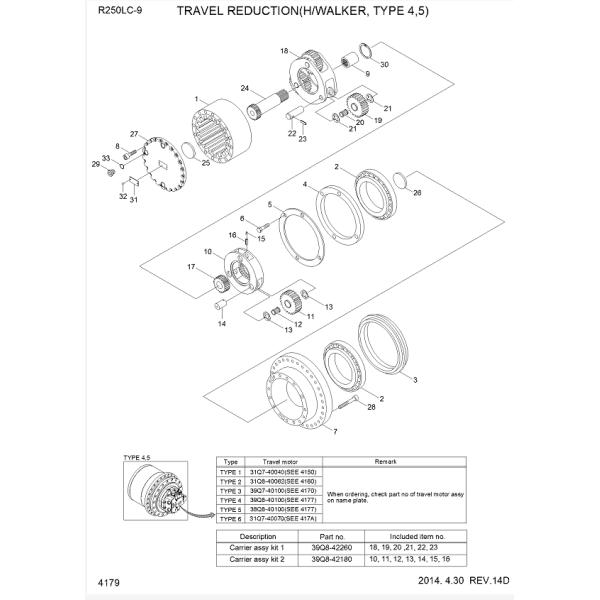

Pos. Part No Qty Parts name Comments
*. @ [1] TRAVEL MOTOR ASSY SEE 4177, 4178
N*-2. 39Q8-42100 [1] TRAVEL REDUCTION GEAR
N*-2. 39Q8-42101 [1] TRAVEL REDUCTION GEAR
1 39Q8-42110 [1] GEAR-RING
2 39Q8-42120 [2] BEARING-ANG.BALL
3 39Q8-42130 [2] SEAL ASSY-FLOATING
4 39Q8-42140 [1] RING-NUT
5 39Q8-42150 [1] PLATE-LOCK
6 S107-100206 [4] BOLT-SOCKET
7 39Q8-42160 [1] HOUSING
8 S129-070206 [22] BOLT-SOCKET,UNIFIED
9 39Q8-42170 [1] COUPLING
9 39Q8-42171 [1] COUPLING
K10. 39Q8-42190 [1] CARRIER 2
K11. 39Q8-42200 [3] GEAR-PLANETARY 2
K12. 39Q8-42210 [3] BEARING-NEEDLE
K13. 39Q8-42220 [6] WASHER-THRUST 2
K14. 39Q8-42230 [3] PIN-CARRIER 2
K15. XKBR-00128 [3] PIN-SPRING 2
K16. 39Q8-42240 [3] PIN-SOLID
17 39Q8-42250 [1] GEAR-SUN 2
K18. 39Q8-42270 [1] CARRIER 1
K19. 39Q8-42280 [3] GEAR-PLANETARY 1
K20. 39Q8-42290 [3] BEARING-NEEDLE 1
K21. 39Q8-42300 [6] WASHER-THRUST 1
K22. 39Q8-42310 [3] PIN-CARRIER 1
K23. S472-600504 [3] PIN-SPRING
24 39Q8-42320 [1] GEAR-SUN 1
25 39Q6-42320 [1] PLATE-THRUST
26 39Q8-42330 [1] PLATE-THRUST
27 39Q8-42340 [1] COVER
28 S109-18140D [25] BOLT-HEX SOCKET HEAD
N28. S109-18140V [25] BOLT-SOCKET
29 P220-110205 [3] PLUG-HEX
30 S602-045001 [1] RING-RETAINING,C TYPE
31 39Q8-42350 [1] NAME PLATE
32 39Q6-41800 [2] RIVET
33 S631-024001 [3] O-RING
K. 39Q8-42180 [1] CARRIER ASST KIT 2 SEE ILLUST
K. 39Q8-42260 [1] CARRIER ASST KIT 1 SEE ILLUST

39Q8-42100 39Q8-42102 39Q8-42101 Hyundai Final Drive Fit R260-9 R290-9 R300-939Q8-42100 39Q8-42102 39Q8-42101 Hyundai Final Drive Fit R260-9 R290-9 R300-939Q8-42100 39Q8-42102 39Q8-42101 Hyundai Final Drive Fit R260-9 R290-9 R300-9


FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
