SA7117-34050 SA1143-01100 VOE14569653 VOE14528735 VOE14613849 Excavator Travel Gearbox Fit EC240 EC240B EC235D
SA7117-34050 SA1143-01100 VOE14569653 VOE14528735 VOE14613849 Excavator Travel Gearbox Fit EC240 EC240B EC235D
SA7117-34050 SA1143-01100 VOE14569653 VOE14528735 VOE14613849 Excavator Travel Gearbox Fit EC240 EC240B EC235D
SA7117-34050 SA1143-01100 VOE14569653 VOE14528735 VOE14613849 Excavator Travel Gearbox Fit EC240 EC240B EC235D
SA7117-34050 SA1143-01100 VOE14569653 VOE14528735 VOE14613849 Excavator Travel Gearbox Fit EC240 EC240B EC235D
SA7117-34050 SA1143-01100 VOE14569653 VOE14528735 VOE14613849 Excavator Travel Gearbox Fit EC240 EC240B EC235D
Specifications
Brand Name :
MENZEH GEARS
Model Number :
SA7117-34050 SA1143-01100 VOE14569653 VOE14528735 VOE14613849
Certification :
CE
Place of Origin :
GUANGZHOU CHINA
MOQ :
1pc
Price :
Negotiated
Payment Terms :
Western Union, T/T, L/C,ALI PAY
Supply Ability :
500 pcs per Day
Delivery Time :
1-3 working Days
Packaging Details :
BOX, Wooden Case
Part Name :
Travel Gearbox
Part Number :
SA7117-34050 SA1143-01100 VOE14569653 VOE14528735 VOE14613849
Used For :
EC240 EC240B EC235D
Condiction :
All New OEM
Warrenty :
3 Months
Shipping :
DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port :
Huangpu Guangzhou
High Light :
Repaired Parts Gearbox Retainer
After Warran :
Video technical support Online support Spare parts
Description

SA7117-34050 SA1143-01100 VOE14569653 VOE14528735 VOE14613849 Travel Gearbox For Excavator EC240 EC240B EC235D

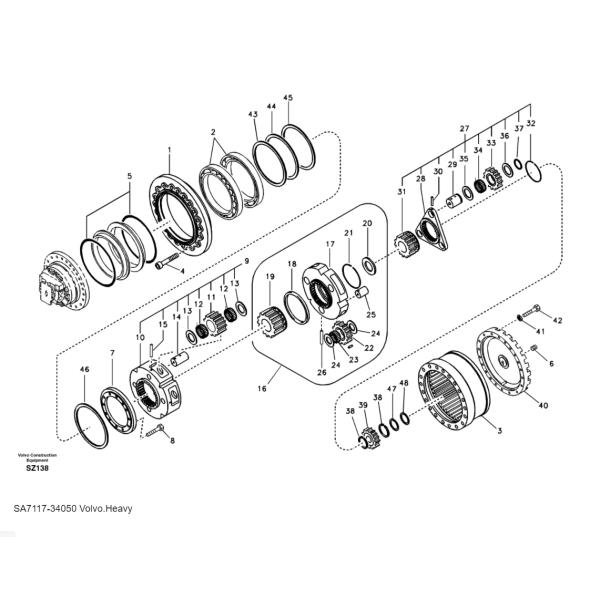

Pos. Part No Qty Parts name Comments
SA7117-34050 [1] Travel Gearbox
1 SA7117-34100 [1] Housing
2 SA7117-34110 [2] Bearing
3 SA7117-34120 [1] Ring gear
4 SA9016-21818 [20] Hex. socket screw
5 SA7117-34130 [1] Seal
6 SA9415-43042 [3] Plug
7 SA7117-34190 [1] Retainer
8 VOE9011-11206 [12] Screw
9 SA7117-34200 [1] Planet carrier
10 SA7117-34210 [1] Carrier
11 SA7117-34220 [4] Planetary gear
12 SA7117-34230 [8] Needle bearing
13 SA7117-34240 [8] Washer
14 SA7117-34250 [4] Pin
15 VOE13951991 [4] Spring pin
16 SA7117-34260 [1] Carrier
17 SA7117-34270 [1] Carrier
18 SA1036-00310 [1] Thrust ring
19 SA7117-34280 [1] Gear
20 SA1036-00300 [1] Ring
21 SA7117-34290 [1] Retaining ring
22 SA7117-34300 [3] Planetary gear
23 SA7117-34310 [3] Needle bearing
24 VOE14556491 [6] Washer
25 SA7117-34330 [3] Pin
26 SA9325-06012 [3] Spring pin
27 SA7117-34340 [1] Planet carrier
28 SA7117-34350 [1] Planet carrier
29 SA7117-34370 [3] Pin
30 SA9325-06012 [3] Spring pin
31 SA7117-34360 [1] Gear
32 SA7117-34440 [1] Retaining ring
33 SA7117-34420 [3] Planetary gear
34 SA7117-34380 [3] Needle bearing
35 SA7117-34390 [3] Washer
36 SA7117-34400 [3] Washer
37 SA9541-01034 [3] Retaining ring
38 SA1036-00290 [2] Thrust ring
39 SA7117-34430 [1] Gear
40 SA7117-34410 [1] Cover
41 VOE9213-10000 [16] Spring Washer
42 VOE993025 [16] Hexagon screw
43 SA7117-34140 [1] Shim 0.1t
44 SA7117-34150 [1] Shim 0.3t
45 SA7117-34160 [1] Shim 0.5t
46 SA7117-34170 [1] Shim 1.0t
47 SA1036-00450 [1] Shim
48 SA1036-00460 [1] Shim

SA7117-34050 SA1143-01100 VOE14569653 VOE14528735 VOE14613849 Excavator Travel Gearbox Fit EC240 EC240B EC235DSA7117-34050 SA1143-01100 VOE14569653 VOE14528735 VOE14613849 Excavator Travel Gearbox Fit EC240 EC240B EC235DSA7117-34050 SA1143-01100 VOE14569653 VOE14528735 VOE14613849 Excavator Travel Gearbox Fit EC240 EC240B EC235D
SA7117-34050 SA1143-01100 VOE14569653 VOE14528735 VOE14613849 Excavator Travel Gearbox Fit EC240 EC240B EC235D


FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.

SA7117-34050 SA1143-01100 VOE14569653 VOE14528735 VOE14613849 Excavator Travel Gearbox Fit EC240 EC240B EC235DSA7117-34050 SA1143-01100 VOE14569653 VOE14528735 VOE14613849 Excavator Travel Gearbox Fit EC240 EC240B EC235DSA7117-34050 SA1143-01100 VOE14569653 VOE14528735 VOE14613849 Excavator Travel Gearbox Fit EC240 EC240B EC235DSA7117-34050 SA1143-01100 VOE14569653 VOE14528735 VOE14613849 Excavator Travel Gearbox Fit EC240 EC240B EC235D
