R210LC-7 Swing 2nd Sun Gear Excavator Gear Parts XKAQ-00011 4893389 XKBH-01932 3901774
R210LC-7 Swing 2nd Sun Gear Excavator Gear Parts XKAQ-00011 4893389 XKBH-01932 3901774
Specifications
Brand Name :
MENZEH GEARS
Model Number :
XKAQ-00011 4893389 XKBH-01932 3901774 R210LC-7
Certification :
CE
Place of Origin :
GUANGZHOU CHINA
MOQ :
1pc
Price :
Negotiated
Payment Terms :
Western Union, T/T, L/C,ALI PAY
Supply Ability :
500 pcs per Day
Delivery Time :
1-3 working Days
Packaging Details :
BOX, Wooden Case
Part Name :
2nd Sun Gear
Part Number :
XKAQ-00011 4893389 XKBH-01932 3901774
Used For :
R210LC-7
Condiction :
All New OEM
Warrenty :
3 Months
Shipping :
DHL/TNT/UPS/SEA/AIR Shipping
Port :
Huangpu Guangzhou
High Light :
XKAQ-00011 4893389 XKBH-01932 3901774 R210LC-7 Swing 2nd Sun Gear Excavator Gear Parts
After Warranty :
Video technical support Online support Spare parts
Description

XKAQ-00011 4893389 XKBH-01932 3901774 R210LC-7 Swing 2nd Sun Gear Excavator Gear Parts

Part Name 2nd Sun Gear
Part No. XKAQ-00011 4893389 XKBH-01932 3901774
Used For R210LC-7
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts

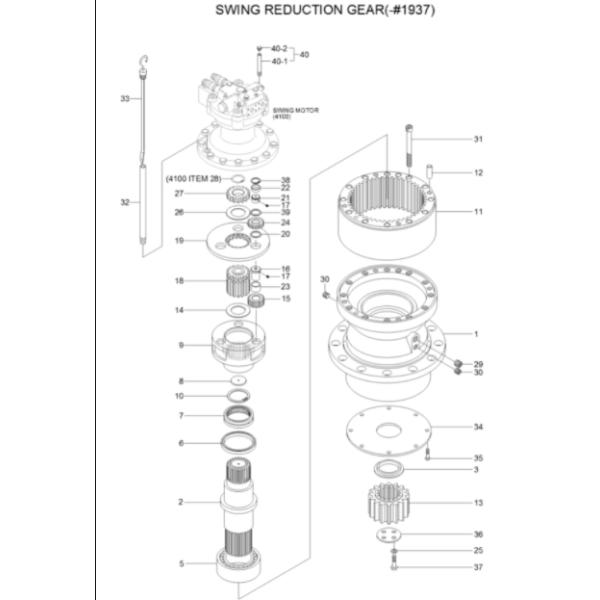

Pos. Part No Qty Parts name Comments
*. @ [1] SWING MOTOR ASSY
*-2. 31N6-10150 [1] REDUCTION GEAR ILL.CHANGE
1 XKAQ-00002 [1] CASING ASSY
2 XKAQ-00005 [1] SHAFT-DRIVE
3 XKAQ-00018 [1] SPACER
5 XKAQ-00026 [1] BEARING-ROLLER
6 XKAQ-00032 [1] SEAL-OIL
7 XKAQ-00029 [1] BEARING-ROLLER
8 XKAQ-00076 [1] PLATE-THRUST
9 XKAQ-00075 [1] CARRIER 2
10 XKAQ-00074 [1] RING-STOP
11 XKAQ-00073 [1] GEAR-RING
12 XKAQ-00072 [4] PIN-KNOCK
13 XKAQ-00014 [1] GEAR-PINION
14 XKAQ-00071 [6] WASHER-THRUST
15 XKAQ-00023 [3] GEAR-PLANET 2
16 XKAQ-00070 [3] PIN 2 INCL 23
17 XKAQ-00048 [6] PIN-SPRING
18 XKAQ-00011 [1] GEAR-SUN 2
19 XKAQ-00015 [1] CARRIER 1
20 XKAQ-00057 [3] PLATE-SIDE 1
21 XKAQ-00019 [3] PIN 1
22 XKAQ-00030 [3] CAGE-NEEDLE
N23. @ [3] BUSHING 2
24 XKAQ-00025 [3] GEAR-PLANET 1
25 XKAQ-00044 [2] WASHER-LOCK
26 XKAQ-00068 [1] PLATE-SIDE 3
27 XKAQ-00067 [1] GEAR-SUN 1
29 XKAQ-00049 [1] PLUG
30 XKAQ-00066 [2] PLUG
31 XKAQ-00065 [2] BOLT-SOCKET
32 XKAQ-00035 [1] PIPE-GAUGE
33 XKAQ-00034 [1] BAR-GAUGE
34 XKAQ-00031 [1] PLATE-COVER
35 XKAQ-00064 [8] BOLT-HEX
36 XKAQ-00043 [1] PLATE-LOCK
37 XKAQ-00042 [4] BOLT-HEX
38 XKAQ-00041 [3] RING-STOP
39 XKAQ-00040 [3] PLATE-SIDE 2
40 XKAQ-00143 [1] POST-AIR BREATHER
40-1. @ [1] POST
40-2. HHI22-WP41 [1] CAP-BREATHER
*-1. @ [1] SWING MOTOR UNIT

SEE 4100

R210LC-7 Swing 2nd Sun Gear Excavator Gear Parts XKAQ-00011 4893389 XKBH-01932 3901774

R210LC-7 Swing 2nd Sun Gear Excavator Gear Parts XKAQ-00011 4893389 XKBH-01932 3901774

R210LC-7 Swing 2nd Sun Gear Excavator Gear Parts XKAQ-00011 4893389 XKBH-01932 3901774



FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
