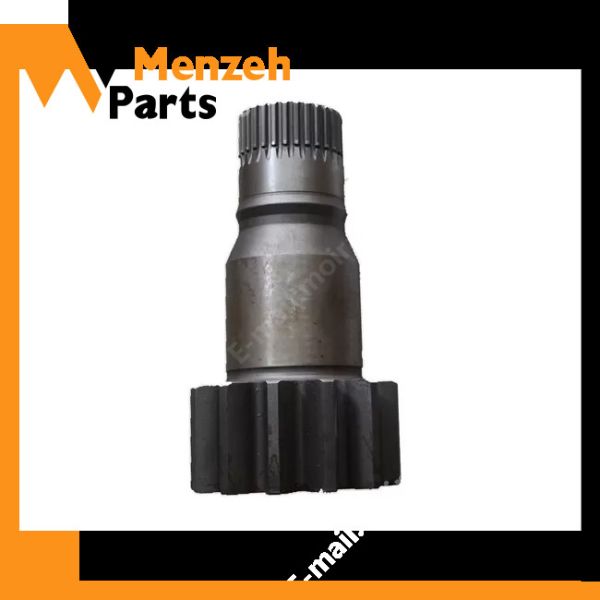

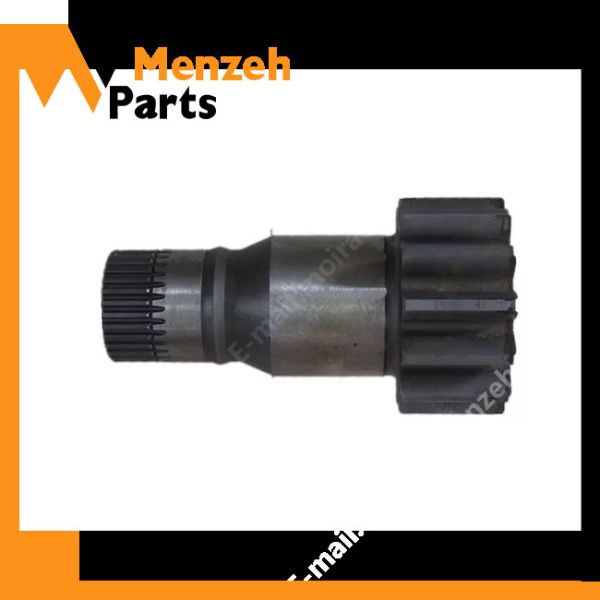

EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802
EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802
EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802
EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802
EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802
EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802
Specifications
Brand Name :
MENZEH GEARS
Model Number :
1032597 1032598 2050998 ZAX330-3 ZX350LC
Certification :
CE
Place of Origin :
GUANGZHOU CHINA
MOQ :
1pc
Price :
Negotiated
Payment Terms :
Western Union, T/T, L/C,ALI PAY
Supply Ability :
500 pcs per Day
Delivery Time :
1-3 working Days
Packaging Details :
BOX, Wooden Case
Part Name :
Pinion Shaft
Part Number :
2028036 2036830 1255802
Used For :
EX120-2 EX120-5 EX120-3 EX100-3
Condiction :
All New OEM
Warrenty :
3 Months
Shipping :
DHL/TNT/UPS/SEA/AIR Shipping
Port :
Huangpu Guangzhou
High Light :
2028036 2036830 1255802 EX120-2 EX120-5 EX120-3 EX100-3 Planetary Gear Parts Swing Pinion Shaft Vertical Shaft Gear Part
After Warranty :
Video technical support Online support Spare parts
Description

2028036 2036830 1255802 EX120-2 EX120-5 EX120-3 EX100-3 Planetary Gear Parts Swing Pinion Shaft Vertical Shaft Gear Part

Part Name Pinion Shaft
Part No. 2028036 2036830 1255802
Used For EX120-2 EX120-5 EX120-3 EX100-3
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts

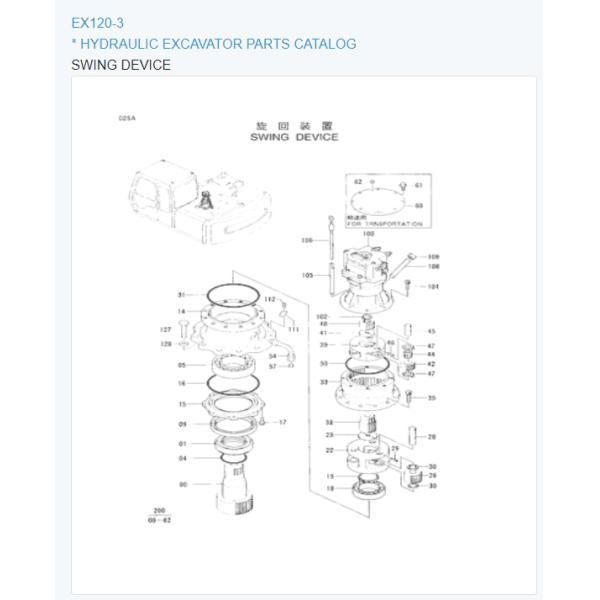

Pos. Part No Qty Parts name Comments
0 2028036 [1] SHAFT;PROP.
1 4244693 [1] SLEEVE
4 A811100 [1] O-RING
5 4248609 [1] BRG.;SPH.ROL.
9 4244691 [1] SEAL;OIL
14 1017261 [1] HOUSING
15 3058620 [1] COVER
16 4247567 [1] O-RING
17 J011035 [8] BOLT;SEMS
18 4293424 [1] BRG.;SPH.ROL.
19 991350 [1] RING;RETAINING
22 2031003 [1] CARRIER
23 4258089 [1] PLATE;THRUST
26 9732811 [3] GEAR;PLANETARY
28 4244696 [3] PIN
29 4063351 [3] PIN;SPRING
30 4266255 [6] PLATE;THRUST
31 4247567 [1] O-RING
33 2028037 [1] GEAR;RING
35 M341450 [12] BOLT;SOCKET
38 3046918 [1] GEAR;SUN
39 2031106 [1] CARRIER
41 4244904 [1] PLATE;THRUST
42 3046916 [3] GEAR;PLANETARY
44 4249345 [3] BRG.;NEEDLE
45 4244689 [3] PIN
46 4116307 [3] PIN;SPRING
47 4269480 [6] PLATE;THRUST
48 3046917 [1] GEAR;SUN
50 4244541 [1] O-RING
54 8050210 [1] PIPE
57 94-2012 [1] PLUG
60 8053413 [1] COVER (for transportation)
61 J011050 [8] BOLT;SEMS (for transportation)
62 94-2011 [1] PLUG (for transportation)
100 4334356 [1] MOTOR;OIL
101 M341028 [8] BOLT;SOCKET
102 927488 [1] RING;RETAINING
105 4264452 [1] PIPE
106 3053451 [1] GAUGE;LEVEL I 3074223
106 3074223 [1] GAUGE;LEVEL
108 4255227 [1] PIPE
109 4298608 [1] CAP
111 3053093 [1] NAME-PLATE
112 M492564 [2] SCREW;DRIVE
127 J932060 [10] BOLT
128 4018545 [10] WASHER
200 9111265 [1] SWING DEVICE(WITHOUT MOTOR)

EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802

EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802

EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802



FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.

EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802

EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802EX120-2 EX120-5 EX120-3 EX100-3 Swing Pinion Shaft Vertical Gear Part 2028036 2036830 1255802
