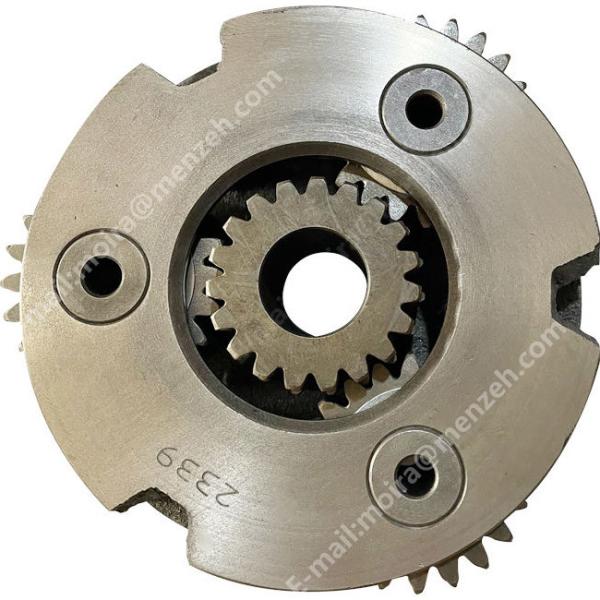

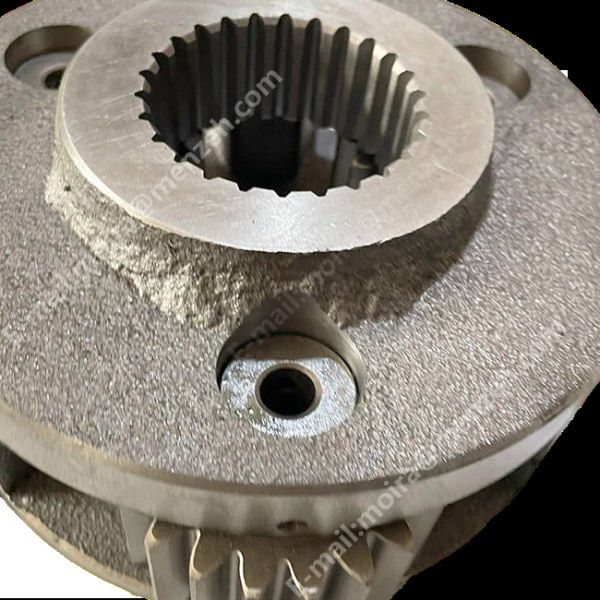

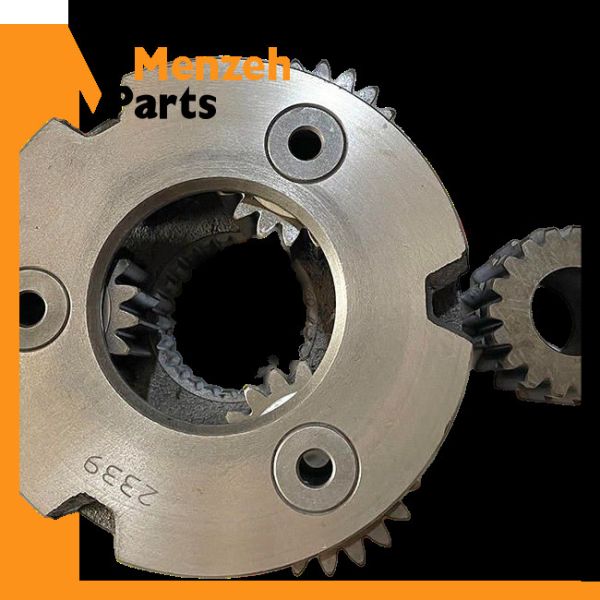

E318D Excavator Gearbox Part First Stage Swing Carrier Assy Cat Slew Slewing Planet Carrier And Sun Gear Assembly
E318D Excavator Gearbox Part First Stage Swing Carrier Assy Cat Slew Slewing Planet Carrier And Sun Gear Assembly
E318D Excavator Gearbox Part First Stage Swing Carrier Assy Cat Slew Slewing Planet Carrier And Sun Gear Assembly
E318D Excavator Gearbox Part First Stage Swing Carrier Assy Cat Slew Slewing Planet Carrier And Sun Gear Assembly
E318D Excavator Gearbox Part First Stage Swing Carrier Assy Cat Slew Slewing Planet Carrier And Sun Gear Assembly
E318D Excavator Gearbox Part First Stage Swing Carrier Assy Cat Slew Slewing Planet Carrier And Sun Gear Assembly
Specifications
Brand Name :
MENZEH GEARS
Model Number :
E318D Carrier And Sun Gear
Certification :
CE
Place of Origin :
GUANGZHOU CHINA
MOQ :
1pc
Price :
Negotiated
Payment Terms :
Western Union, T/T, L/C,ALI PAY
Supply Ability :
500 pcs per Day
Delivery Time :
1-3 working Days
Packaging Details :
BOX, Wooden Case
Part Name :
Carrier And Sun Gear
Part Number :
E318D
Used For :
E318D
Condiction :
All New OEM
Warrenty :
3 Months
Shipping :
DHL/ TNT/ UPS/ SEA/ AIR Shipping
Port :
Huangpu Guangzhou
High Light :
E318D Excavator Gearbox Part First Stage Swing Carrier Assy Cat Slew Slewing Planet Carrier And Sun Gear Assembly
After Warranty :
Video technical support Online support Spare parts
Description

E318D Excavator Gearbox Part First Stage Swing Carrier Assy Cat Slew Slewing Planet Carrier And Sun Gear Assembly

Part Name Planet Carrier And Sun Gear
Part No. E318D
Used For E318D
Warrenty 3 months
After Warranty

Video technical support Online support Free Spare parts

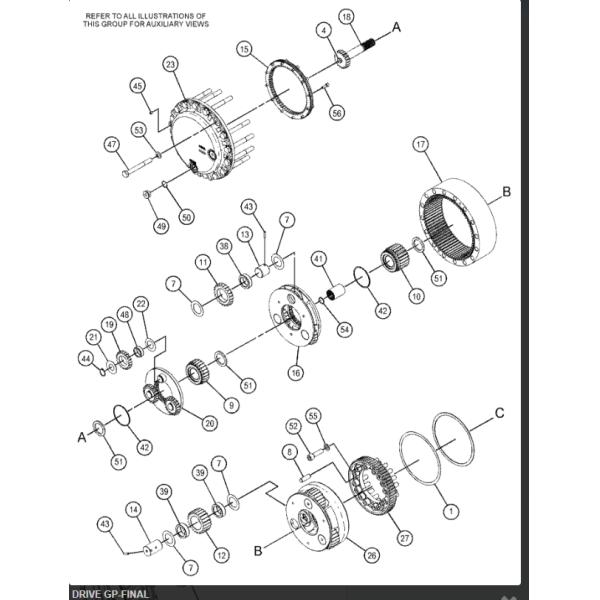

Pos. Part No Qty Parts name Comments
1 7Y-0752 B [1] SHIM (0.8-MM THK)
7Y-0753 B [1] SHIM (1-MM THK)
7Y-0754 B [1] SHIM (1.6-MM THK)
267-6863 B [1] SHIM (0.75-MM THK)
267-6864 B [1] SHIM (0.85-MM THK)
267-6865 B [1] SHIM (0.9-MM THK)
267-6866 B [1] SHIM (0.95-MM THK)
267-6867 B [1] SHIM (1.2-MM THK)
267-6868 B [1] SHIM (1.4-MM THK)
267-6869 B [1] SHIM (1.8-MM THK)
267-6870 B [1] SHIM (2-MM THK)
267-6871 B [1] SHIM (2.3-MM THK)
4 094-0578 B [1] PLATE (8-MM THK)
094-0579 B [1] PLATE (9-MM THK)
094-0580 B [1] PLATE (10-MM THK)
7 094-1528 [12] WASHER (53X84X1-MM THK)
8 114-1540 [4] PIN-DOWEL
9 169-5589 [1] GEAR-SUN (24-TEETH)
10 169-5590 [1] GEAR-SUN (24-TEETH)
11 169-5592 [3] GEAR-PLANETARY (23-TEETH)
12 169-5593 [3] GEAR-PLANETARY (23-TEETH)
13 169-5601 [3] SHAFT-PLANETARY
14 169-5602 [3] SHAFT-PLANETARY
15 171-9387 [1] GEAR-RING (64-TEETH)
16 191-2571 [1] CARRIER-PLANETARY
17 191-2676 [1] GEAR-RING (72-TEETH)
18 191-2683 [1] GEAR-SUN (20-TEETH)
19 191-2684 [3] GEAR-PLANETARY (21-TEETH)
20 191-2686 [1] CARRIER AS
21 191-2689 [3] WASHER (34X70X1-MM THK)
22 191-2690 [3] WASHER (42.3X70X1-MM THK)
23 199-4503 [1] COVER
24 207-1571 [1] SEAL GP-DUO-CONE
214-3570 [2] RING-TORIC
25 267-6798 [1] HOUSING
26 267-6799 [1] CARRIER-PLANETARY
27 267-6800 [1] GEAR-COUPLING
37 333-2914 [2] BALL BEARING
38 333-2916 [3] BEARING AS
39 333-2917 [6] BEARING AS
40 452-3517 [1] HOUSING-MOTOR
41 509-1886 [1] COUPLING
42 093-1731 [2] RING-RETAINING
43 095-0891 [6] PIN-SPRING
44 096-0433 [3] RING-RETAINING
45 096-3216 M [2] SETSCREW-SOCKET (M12X1.75X12-MM)
46 171-9298 [1] SEAL-O-RING
47 179-8733 M [16] BOLT (M20X2.5X170-MM)
48 296-6248 [3] BEARING AS-ROLLER
49 3E-2338 [2] PLUG-PIPE
50 7M-8485 [2] SEAL-O-RING
51 7Y-0595 [3] SPACER (58X79.6X6-MM THK)
52 7Y-5217 M [16] BOLT-SOCKET HEAD (M20X2.5X70-MM)
53 451-2176 [16] WASHER-HARD (22X35X3.5-MM THK)
54 8C-8840 [1] RING-RETAINING
55 8T-3282 [16] WASHER-HARD (22X35X3.5-MM THK)
56 101-7404 M [12] BOLT-SOCKET HEAD (M10X1.5X30-MM)
1U-8846 BF [4] SEALANT-GASKET
PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY
B USE AS REQUIRED
F NOT SHOWN
M METRIC PART

E318D Excavator Gearbox Part First Stage Swing Carrier Assy Cat Slew Slewing Planet Carrier And Sun Gear Assembly

E318D Excavator Gearbox Part First Stage Swing Carrier Assy Cat Slew Slewing Planet Carrier And Sun Gear Assembly

E318D Excavator Gearbox Part First Stage Swing Carrier Assy Cat Slew Slewing Planet Carrier And Sun Gear AssemblyE318D Excavator Gearbox Part First Stage Swing Carrier Assy Cat Slew Slewing Planet Carrier And Sun Gear AssemblyE318D Excavator Gearbox Part First Stage Swing Carrier Assy Cat Slew Slewing Planet Carrier And Sun Gear Assembly



FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
