Turbocharger RHF3 8972402101 Wastegate Turbo For Isuzu 4JA1 Diesel Engine D-Max
Turbocharger RHF3 8972402101 Wastegate Turbo For Isuzu 4JA1 Diesel Engine D-Max
Turbocharger RHF3 8972402101 Wastegate Turbo For Isuzu 4JA1 Diesel Engine D-Max
Turbocharger RHF3 8972402101 Wastegate Turbo For Isuzu 4JA1 Diesel Engine D-Max
Turbocharger RHF3 8972402101 Wastegate Turbo For Isuzu 4JA1 Diesel Engine D-Max
Turbocharger RHF3 8972402101 Wastegate Turbo For Isuzu 4JA1 Diesel Engine D-Max
Turbocharger RHF3 8972402101 Wastegate Turbo For Isuzu 4JA1 Diesel Engine D-Max
Turbocharger RHF3 8972402101 Wastegate Turbo For Isuzu 4JA1 Diesel Engine D-Max
Specifications
MOQ :
1
Packaging Details :
BOX
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
10000
Place of Origin :
CHINA
Model Number :
RHF3
Description
Product Details

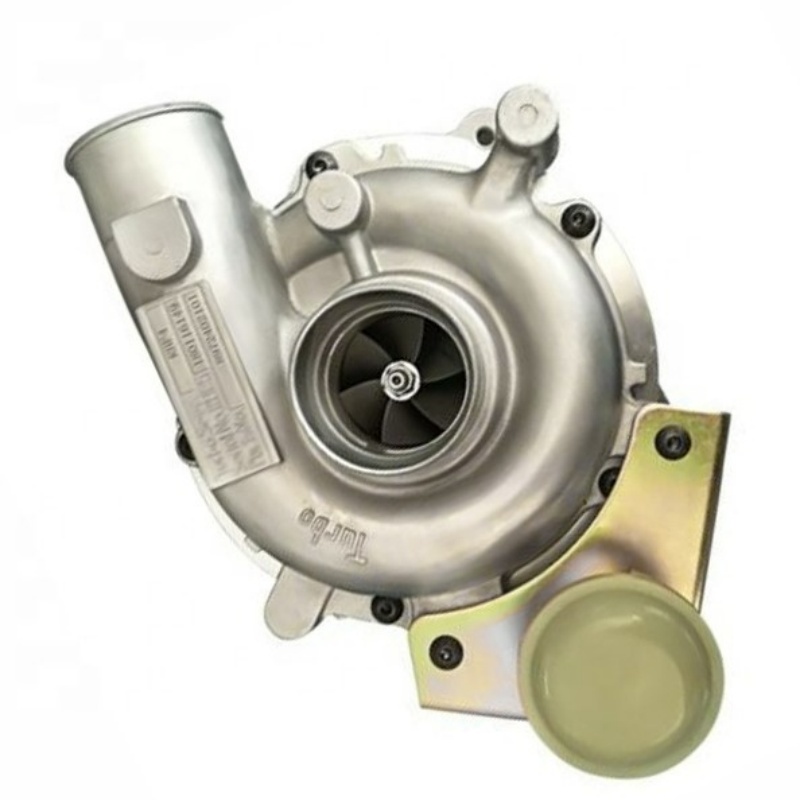

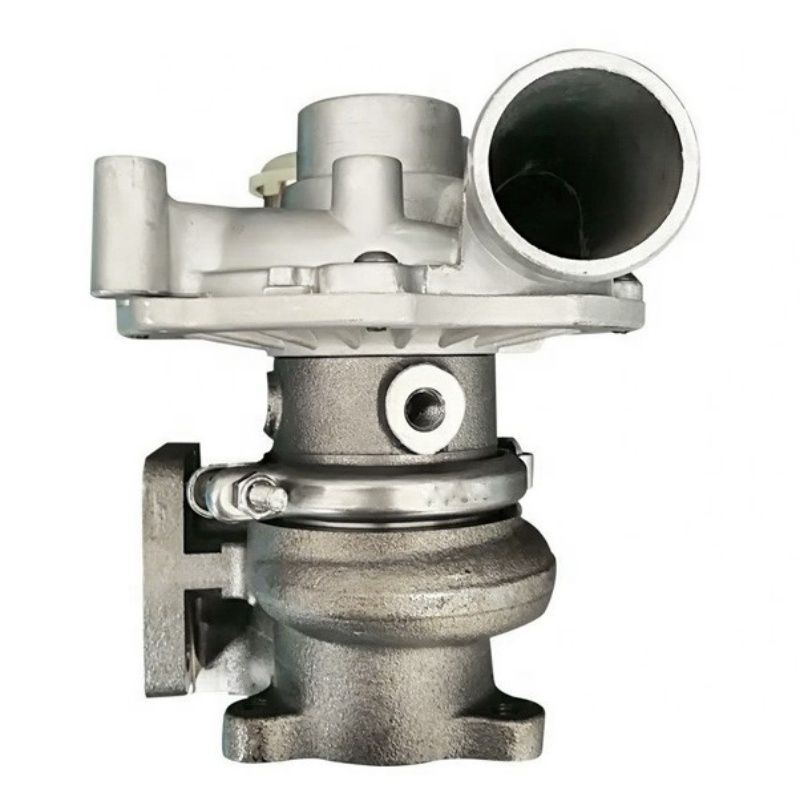

Name: RHF3 Turbocharger

Model: RHF3

Part No: 8972402101

Turbo Type: IHI RHF3

Bearing: Floating Bearing

Feature: External Wastegate Actuator

Application: Isuzu 4JA1 diesel engine, Isuzu D-Max pickup

Application Scenarios
  1. Isuzu D-Max pickup equipped with 4JA1 diesel engine
  2. Light commercial vehicle 4JA1 engine overhaul maintenance
  3. Off-road pickup trucks powered by Isuzu 4JA1 engine
Cross Reference
Spec Turbo Type Application Interchangeable
RHF3 8972402101 Wastegated RHF3 turbo Isuzu 4JA1 engine Yes
RHF4 Turbo Larger flow capacity, different mounting flange Incompatible No
TF035 Turbo Different housing structure and oil port layout Incompatible No
Product Advantages
  1. Compact floating bearing assembly, stable performance for urban transportation and off-road driving
  2. External wastegate accurately regulates boost pressure, effectively protecting 4JA1 engine
  3. High temperature resistant cast turbine housing, adapts various rough working conditions
  4. Standard OEM mounting flange for direct bolt-on replacement
  5. Strict dynamic balance testing before shipment
  6. Cost-effective aftermarket replacement turbocharger
Packaging & Shipping

Pre-filled with anti-rust lubricant; inlet/outlet sealed, foam protected and packed in export cartons. Wooden cases available for bulk orders.

Delivery: SF Express / YTO / ZTO / EMS

Taxes

Import duties and consumption tax not included in price. Buyer bears local customs charges.

Warranty

6-month standard warranty. Failures caused by improper installation, insufficient lubrication or misuse are not covered.

Product Range

We supply parts for Kubota, Cummin s, CAT, Perkins, Yanmar, Isuzu, Komatsu, Mitsubishi,Hino, Nissan, Vol vo, Deutz, Doosan, John Dee re, Scania , Hyundai , JCB etc.

Main items: turbochargers, turbo housings, wheel assemblies, gasket kits and other repair spare parts.

FAQ

Q1: What vehicle & engine matches RHF3 8972402101 turbocharger?

A: Fits Isuzu 4JA1 diesel engine for Isuzu D-Max pickup.

Q2: Can other RHF series turbo replace this RHF3 unit?

A: Must confirm part number, oil supply port and flange dimensions; different RHF variants cannot be directly interchanged.

Q3: Warranty term?

A: 6 months. Damage caused by improper installation, insufficient lubrication or misuse is excluded.

Q4: How to confirm compatibility?

A: Provide vehicle VIN, engine model and original turbo photos for verification.
