Hydraulic Auger Drive Attachment for 5-20 Ton Excavators
Precision-engineered heavy-duty solution designed for earth-drilling applications across construction, infrastructure, landscaping, and utility projects. This integrated set includes a high-torque hydraulic auger drive unit, tungsten carbide-tipped earth drill bit, and ISO 13031-compliant universal quick coupler.
Technical Specifications
Specification Details
Excavator Compatibility 5-20 ton excavators
Drive Unit Performance 2-stage planetary gear system (50:1 ratio), 8,500 N*m max torque, 1800 RPM drilling speed
Hydraulic Requirements 18-25 MPa working pressure, 30-80 L/min flow rate
Drill Bit Construction Tungsten carbide-tipped (WC-Co 85/15 grade), HRA 88+ hardness
Drill Length Options 1000mm to 3000mm (standard), up to 5000mm with extensions
Drill Diameter Options 200mm-600mm
Quick Coupler ISO 13031 compliant, tool-free attachment in 60 seconds
Weight 185 kg (drive unit net weight)
Key Advantages
Superior Durability
High-strength, heat-treated alloy steel housing with tungsten carbide drill bit teeth designed for clay, sand, loam, gravel, and moderately rocky terrain.
Operational Efficiency
Spiral drill bit design reduces drilling time by up to 30% compared to standard auger bits.
Safety & Reliability
Integrated pressure relief valves, anti-slip drill bit design, and sealed gear housing. Compliant with ISO 12100 safety standards.
Universal Compatibility
Fits all 5-20 ton excavators from major manufacturers without custom adapters.
Application Scenarios
  • Post-hole digging for fencing, guardrails, utility poles, and solar panel foundations
  • Deep foundation drilling for small-scale construction projects
  • Soil sampling and geotechnical testing
  • Tree planting and root ball drilling
  • Trenching for underground utilities and irrigation systems
Frequently Asked Questions
Will this auger drive attachment fit my 5-20 ton excavator?
Yes, it's universally compatible with 5-20 ton excavators from leading brands via the included quick coupler. No custom modifications needed.
What soil types can this hydraulic auger drive handle?
Engineered to excel in clay, sand, loam, gravel, and moderately rocky terrain. Not designed for solid bedrock.
What's the maximum torque and drilling depth?
Up to 8,500 N*m of torque with maximum drilling depth of 3 meters standard, extendable to 5 meters with optional shafts.
How long does the equipment last under heavy use?
Hydraulic motor lasts 3-5 years, drill bit maintains performance for 1-2 years with proper maintenance.
Is this attachment certified for international construction standards?
Yes, holds CE certification, ISO 12100 safety certification, and ISO 9001:2015 quality management certification.

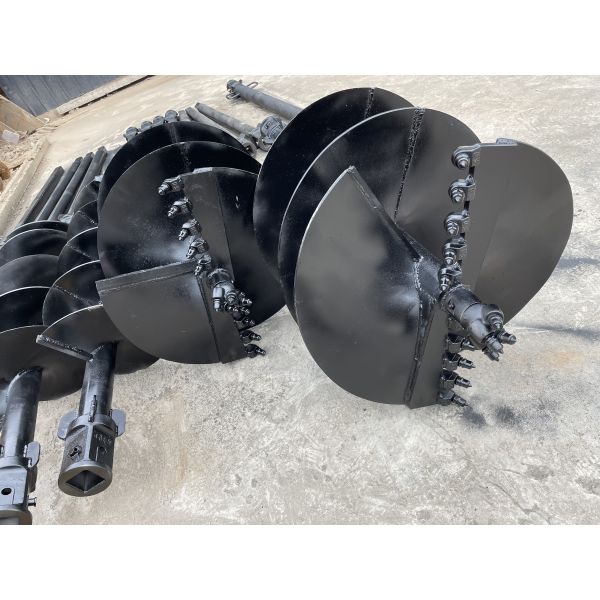

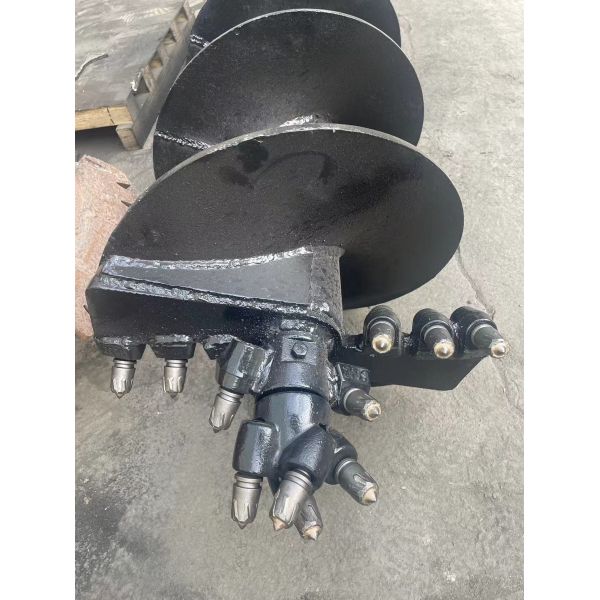

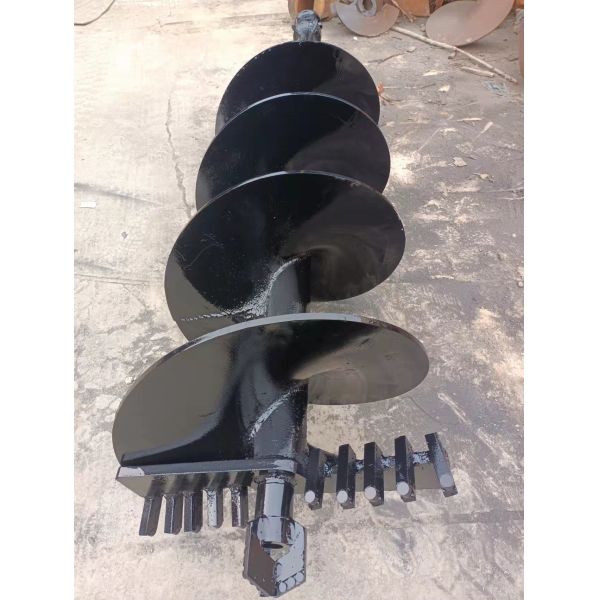

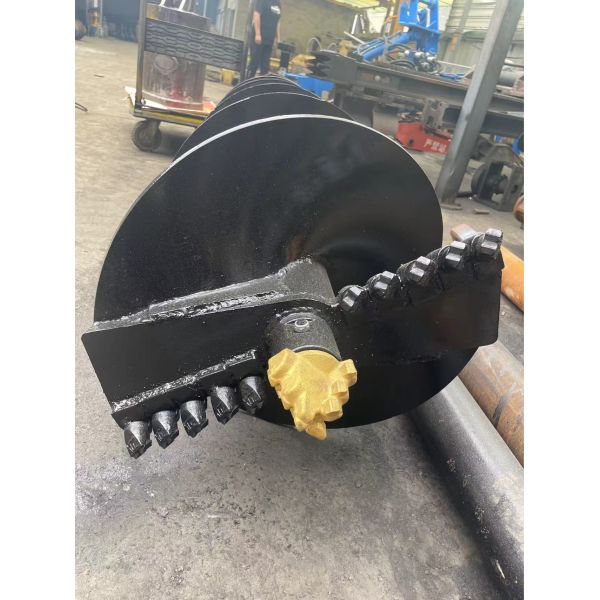

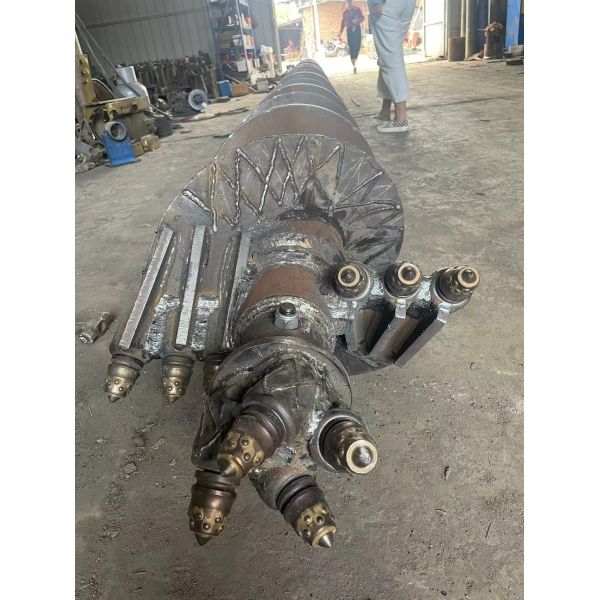

Product Images
Hydraulic Auger Drive Attachment with Tungsten Carbide-Tipped Drill Bit and ISO 13031 Quick Coupler for 5-20 Ton Excavators Hydraulic Auger Drive Attachment with Tungsten Carbide-Tipped Drill Bit and ISO 13031 Quick Coupler for 5-20 Ton Excavators Hydraulic Auger Drive Attachment with Tungsten Carbide-Tipped Drill Bit and ISO 13031 Quick Coupler for 5-20 Ton Excavators Hydraulic Auger Drive Attachment with Tungsten Carbide-Tipped Drill Bit and ISO 13031 Quick Coupler for 5-20 Ton Excavators Hydraulic Auger Drive Attachment with Tungsten Carbide-Tipped Drill Bit and ISO 13031 Quick Coupler for 5-20 Ton Excavators
Warranty & Support: 2-year warranty on hydraulic motor, 1-year warranty on drill bit. Free pre-purchase compatibility checks available.
