Specifications
Description

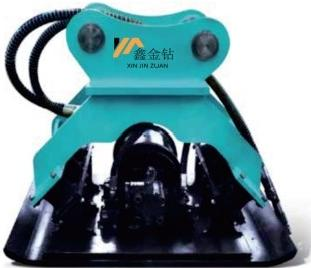

Hydraulic Compactor | Vibration Compaction Attachment
The Hydraulic Compactor is a heavy-duty vibration attachment designed for construction compaction projects. This hydraulic-powered tamping tool combines a hydraulic motor, eccentric mechanism, and tamping plate to deliver targeted vibration force for compacting various materials. Engineered with lightweight design, flexible operation, and durable construction, it's ideal for infrastructure, foundation, and slope engineering applications.
Core Advantages & Technical Features
  • 2200 RPM Impact Performance: Generates continuous vibration through hydraulic-driven eccentric rotation, ensuring firm and long-lasting compaction of soil, gravel, and backfill materials.
  • Reinforced Durability: Built with strengthened steel structure and rubber shock-absorbing blocks to withstand high compaction strength without component damage. Lubricated bearings and integrated hydraulic valves protect the motor from operational risks.
  • Broad Compatibility: Features interchangeable connecting components for compatibility with multiple heavy-duty equipment models. Quick installation reduces on-site downtime.
  • Harsh-Environment Reliability: Maintains low operating costs and consistent performance in uneven, muddy, or high-altitude work conditions.
Application Scenarios
  1. Slope & Embankment Compaction: Stabilize road embankments, riverbank slopes, and highway subgrades to prevent erosion and structural collapse.
  2. Building Foundation Reinforcement: Compact foundation soil and backfill for residential and commercial buildings, reducing post-construction settlement.
  3. Road Construction & Repair: Compact road subbases or repair damaged sections to restore pavement stability.
  4. Landfill Compaction: Reduce waste volume in landfills through layered compaction, extending site service life.
  5. Pipeline Trench Backfill: Compact backfill around underground pipelines to avoid displacement and ensure long-term safety.
Technical Specifications
Project Unit XJZ-mini XJZ-04 XJZ-06 XJZ-08 XJZ-10
Impact Force ton 3 4 6.5 15 20
Maximum Vibration Frequency rpm 2000 2000 2000 2000 2000
Oil Consumption L/min 28-35 45-75 85-105 120-170 120-170
Working Pressure kg/cm² 100-130 100-130 100-130 150-200 160-240
Product Weight kg 250 270 500 900 1200
Tamping Area (L×W) mm 750×1050 900×500 1160×700 1350×900 1500×1000
Total Height mm 680 760 960 1060 1200
Total Width mm 450 550 700 900 1000
Applicable Equipment Tonnage ton 2-4 4-9 11-16 17-23 30-50
