Hydraulic Hammer Breakers Rubber Diaphragm Rammer S26 H Membrane Hydraulic Hammer Spare Parts
Hydraulic Hammer Breakers Rubber Diaphragm Rammer S26 H Membrane Hydraulic Hammer Spare Parts
Hydraulic Hammer Breakers Rubber Diaphragm Rammer S26 H Membrane Hydraulic Hammer Spare Parts
Hydraulic Hammer Breakers Rubber Diaphragm Rammer S26 H Membrane Hydraulic Hammer Spare Parts
Hydraulic Hammer Breakers Rubber Diaphragm Rammer S26 H Membrane Hydraulic Hammer Spare Parts
Hydraulic Hammer Breakers Rubber Diaphragm Rammer S26 H Membrane Hydraulic Hammer Spare Parts
Hydraulic Hammer Breakers Rubber Diaphragm Rammer S26 H Membrane Hydraulic Hammer Spare Parts
Hydraulic Hammer Breakers Rubber Diaphragm Rammer S26 H Membrane Hydraulic Hammer Spare Parts
Hydraulic Hammer Breakers Rubber Diaphragm Rammer S26 H Membrane Hydraulic Hammer Spare Parts
Hydraulic Hammer Breakers Rubber Diaphragm Rammer S26 H Membrane Hydraulic Hammer Spare Parts
Hydraulic Hammer Breakers Rubber Diaphragm Rammer S26 H Membrane Hydraulic Hammer Spare Parts
Hydraulic Hammer Breakers Rubber Diaphragm Rammer S26 H Membrane Hydraulic Hammer Spare Parts
Specifications
Supply Ability :
10000 PCS per week
Delivery Time :
1-7days
Packaging Details :
PP bag Carton
Certification :
CE
Payment Terms :
L/C, T/T, MoneyGram
Model Number :
S26 H
Material :
rubber
Temperature :
-35'℃ to +110℃
Condition :
New
Quality :
High Quality Durable Stable Safety
Applicable Industries 2 :
Machinery Repair Shops
Price :
Negotiable
Brand Name :
Huilian
Color :
Black;Green;Yellow
MOQ :
1Set
Breaker Model :
S26 H
Place of Origin :
China
Name :
Hydraulic Breaker Accumulator Diaphragm
Description

Hydraulic Hammer Breakers Rubber Diaphragm Rammer S26 H Membrane Hydraulic Hammer Spare Parts

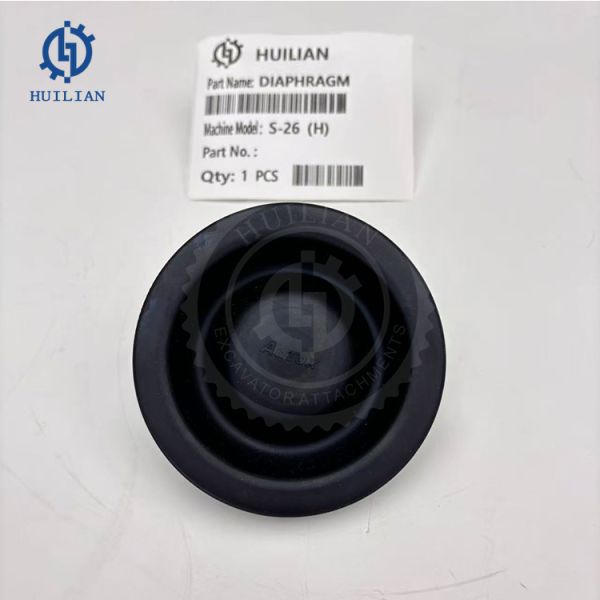

Product name Hydraulic Breaker Rubber Diaphragm Membrane for Accumulator
Pressure 85~125Mpa
Temperature -35~175°C
Material NBR and Rubber
Feature heat resistant, high power ,durable
Compatible Brand Rammer
Compatible Model S26 - High Pressure
Material High-Strength Elastomer (NBR/HNBR)
Height 20 mm
Diameter 95 mm
Weight 0.25 kg

Hydraulic Hammer Breakers Rubber Diaphragm Rammer S26 H Membrane Hydraulic Hammer Spare Parts

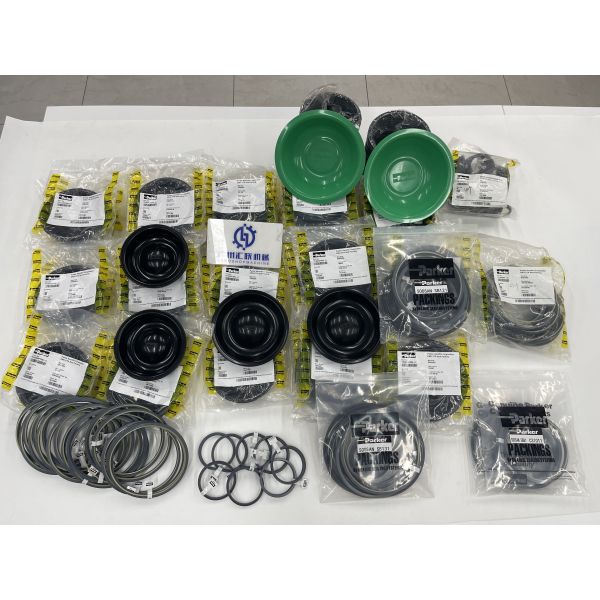

Hydraulic breaker spare parts we can supply:

Hammer Parts Main Body Back Head Charging Valve Cylinder
Socket Plug Piston Adapter Valve Valve Plug
Front Head Grease Nipple Rod Pin Stop Pin Rubber Plug
Ring Bush Thrust Bush Upper Bush Front Cover Tool Bush
Rod Moil Point Chisel Washer Through Bolt Side Rod
Air Check Valve Valve Adjuster Accumulator Accumulator Body Accumulator Cover
Charging V/V Diaphragm Seal Kit O-Ring Seal Gas Seal
Buffer Seal Dust Seal U-Packing Back-up ring Side Bolt
Down Cushion Tool Set N2 Gas Charging Set N2 Gas Cylinder B-3way valve assy
Seal Retainer Valve Sleeve Front Head Pin Lower Bush Hex Nut
Socket Bolt Step Seal Upper Cushion Rubber Pad Shock Absorber

Breaker diaphragm parameter

Product name Model size
hydraulic breaker diaphragm F-6=F-3=FURUKAWA 300 ø110 * 18
hydraulic breaker diaphragm HB-3G/5G ø100 * 17
hydraulic breaker diaphragm HB-10G/F12 ø140*40
hydraulic breaker diaphragm HB-15G ø150 * 40
hydraulic breaker diaphragm HB-20G ø170 * 35
hydraulic breaker diaphragm HB-30G ø190 * 40
hydraulic breaker diaphragm HB-40G ø210 * 48
hydraulic breaker diaphragm HB-200 ø135 * 23
hydraulic breaker diaphragm HB-700 ø165 * 23
hydraulic breaker diaphragm HB-1200 / 1500 ø230 * 20
hydraulic breaker diaphragm SB-120/121/130 ø192 * 40
hydraulic breaker diaphragm SB-150/SB-151 ø205 * 37
hydraulic breaker diaphragm HM-110/HM-550 ø112 * 16
hydraulic breaker diaphragm MKB-1300/HM-901 ø140 * 60
hydraulic breaker diaphragm HM-600 / 800 / 901 ø140 * 60
hydraulic breaker diaphragm HM960/HM-1300 ø185 * 50
hydraulic breaker diaphragm HM-1500 / KRUPP-1000 / HM720 ø170 * 20
hydraulic breaker diaphragm UB-11 / TOKU-14/TNB13 ø144 * 65
hydraulic breaker diaphragm OUB 312 / UB-1600 ø170 * 70
hydraulic breaker diaphragm OUB 316 / 318 / UB-2500/KTB2500 ø200 * 90
hydraulic breaker diaphragm UB-11-2 ø150 * 77
hydraulic breaker diaphragm UB-5/TNB13A ø138 * 68
hydraulic breaker diaphragm RAMMER S-26 HIGH / D-50 ø95 * 20
hydraulic breaker diaphragm RAMMER S-25 HIGH / D-50 ø110*22
hydraulic breaker diaphragm RAMMER S-26 LOW / D-50 ø193 * 30
hydraulic breaker diaphragm THBB-1400(7624-10-0230)/THBB800 ø157 * 70
hydraulic breaker diaphragm THBB1600 168*80
hydraulic breaker diaphragm FURUKAWA 300/HD-300,500 ø110 * 18
hydraulic breaker diaphragm LM-500/YH-65/BRP130 ø115 * 21
hydraulic breaker diaphragm YH-45=CDH700=YH-50=CDH712 ø101 * 21
hydraulic breaker diaphragm TR210 ø165*40

Hydraulic Hammer Breakers Rubber Diaphragm Rammer S26 H Membrane Hydraulic Hammer Spare Parts

FAQ

1. What can you buy from us?
Construction machinery hydraulic breaker and excavator parts include for engine controller ECU, monitor display screen, solenoid valve,motor step assy, wire harness, sensor and other excavator parts
2. How can we guarantee quality?
(1)We always provide a pre-production sample before mass production;(2)We always conduct a final inspection before shipment.
3. If I don't have part number, can you check for me?
Yes, for the excavator model, we have old photos and sizes, which are also available to help confirm the correct parts you need.
4. Which shipping term you can supply?
By sea, air or by express (DHL, Fedex,TNT, UPS, EMS)
5. How long does it take to my address?
The normal express delivery time is 3-7 days, depending on which country you are in.
6. How can I pay the order?
We accept payment by T/T, Trade assurance, Paypal, Western Union, L/C
7. How can we maintain a long-term and good business relationship?
(1) We keep good quality and competitive price to ensure our customers benefit.
(2) We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
