Specifications
Brand Name :
Huilian
Model Number :
EB850 Hammer
Place of Origin :
China
MOQ :
1
Price :
USD; RMB
Payment Terms :
L/C, Western Union, MoneyGram, T/T
Supply Ability :
10000 pcs per Month
Delivery Time :
1-7 days
Packaging Details :
Carton, Pallet
Part Name :
SB45 Hydraulic Hammer Assembly
Performance :
Excavator Attachment
AppliCATEEEEEEEion :
7-14 Ton Excavators
Machine Model :
PC90 PC100 ZX80 CATEEEEEEE308 CATEEEEEEE312 DH80 R80 EC80
Operating Weight :
630 kgs
Required Oil Flow :
60-1000 L/Min 15.9-26.4 gal/min
Setting Pressure :
190bar/ 2702 psi
Operating pressure :
130-160 bar/ 1849-2276 psi
Impact Energy :
1355 joule/ 1000 ft.lbs / 139 kg.m
Impact Rate :
400-800/ bpm
Hose Diameter :
3/4 "
Tool Diameter :
85mm / 3.4 inch
Description

EB85 Hydraulic Breaker Excavator Attachment Road Construction Demolition Hammer SB45 Soosan

EB-850 Hydraulic Breaker Spec:

Hydraulic Breaker/ Hydraulic Hammer EB850 Suitable Excavator ton 7-14 1. Inward Valve type without accumulator
T: Open type top mounted
B: Box type top mounted
S: Open type side mounted

2. Packing Details:
Hydraulic hammer ass'y -1pcs;
hammer chisel -2pcs;
Flexible hydraulic hose -2pcs;
Nitrogen Gas Cylinder -1pcs;
Tool box with tools -1set

3. Hydraulic Hammer Applicable Fields:
Mining: Mining, Second-time breaking.
Metallurgy: Clearing slag, Demolition of fuenace and foundation.
Road: Repairing, Breaking, Foundation work.
Railway: Tunneling, Demolition of bridge.
Construction: Demolition of building and reinforced concrete.
Ship repairing: Clearing clam and rust from the hull.
Other: Breaking frozen mud, etc.
lb 15432-30864
EB850T Operating Weight kg 638 EB850T MOQ≥1 USD1850
lb 1407
EB850B Operating Weight kg 629 EB850B MOQ≥1 USD1950
lb 1384
EB850S Operating Weight kg 561 EB850S MOQ≥1 USD2150
lb 1234
EB850 Required Oil Flow l/min 60-100
gal/min 15.9-26.4

Setting Pressure		 bar 190
psi 2702
Operating pressure bar 130-160
psi 1849-2276
Impact Energy joule 1355
ft.lbs 1000
kg.m
Impact Rate bpm 400-800
Hose Diameter inch 3/4
Noise level dB 112
Tool Diameter mm 85
inch 3.4
EB85T Packing Size CM 1670*520*690
Weight KG 680
EB850B Packing Size Cm 1670*520*690
Weight KG 680
EB850S Packing Size cm 1350*550*1090
Weight KG 630
Color White/Yellow/Blue/Red/Green

EB85 Hydraulic Breaker Excavator Attachment Road Construction Demolition Hammer SB45 Soosan

Furukawa Soosan Hydraulic Hammer Spare Parts Rang

HB10G, HB20G, HB30G, HB40G, F20, F22, F22A, F22(A+B1+C), F22(A+B1+B2+C+D+E), F30, F35,
F45, HB1G, HB2G, HB3G, HB5G, HB8G, HB10G, HB15G, HB18G, HB50G, HB200, HB300, HB400, HB700,
HB1200, HB1500, F1, F2, F3, F4, F5, F6, F9, F11, F12, F17, F19, F22B2, F22C, F22D, F22E, FS22, FS6, FS12,
FS27, F27, FS37, FS47, F70, F100, FXJ275, FXJ375, FXJ475
GBM60, GBM90, GBM1T, GB2T, GB3T, GB4T, GB5T, GB8AT, GB8T, GB8F, GB8AF, GB9F, GB11T, GB14T,
GB220E, GB300E, GB500E, GB170E

SB10 , SB20 , SB30 , SB35 , SB40, SB50, SB60, SB60TR-P, SB70, SB70TR-P, SB81N, SB81, SB81TR-P, SB81A, SB85, SB121, SB121TR-P, SB130, SB130TR-P, SB140, SB140TR-P SB147, SU+85, SB85, SU+125, SB125, SB151, SB151TR-P, SB10TS-P, SB20TS-P, SB40TS-P, SB43TS-P, SB45TS-PSB50TS-P, SB60TS-P, SB70TS-P, SB81TS-P, SB100TS-P, SB121TS-P, SB130TS-P, SB140TS-P, SB151TS-P, SQ10, SQ20, SQ30, SQ35, SQ40, SQ43, SQ45, SQ50, SQ60, SQ70, SQ80, SQ100, SQ120, SQ130, SQ140, SQ150, SQ181. ET200, ET300. SB150, SB151, SB157

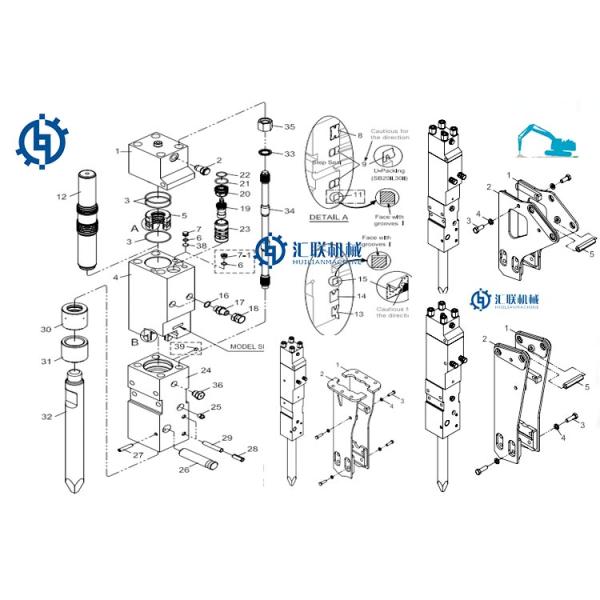

Hammer Parts Main Body Back Head Charging Valve Cylinder Seal Retainer
Socket Plug Piston Adapter Valve Valve Plug Valve Sleeve
Front Head Grease Nipple Rod Pin Stop Pin Rubber Plug Front Head Pin
Ring Bush Thrust Bush Upper Bush Front Cover Tool Bush Lower Bush
Rod Moil Point Chisel Washer Through Bolt Side Rod Hex Nut
Air Check Valve Valve Adjuster Accumulator Accumulator Body Accumulator Cover Socket Bolt
Charging V/V Diaphragm Seal Kit O-Ring Seal Gas Seal Step Seal
Buffer Seal Dust Seal U-Packing Back-up ring Side Bolt Upper Cushion
Down Cushion Tool Set N2 Gas Charging Set N2 Gas Cylinder B-3way valve assy


EB85 Hydraulic Breaker Excavator Attachment Road Construction Demolition Hammer SB45 Soosan

Atlas Copco MB 500, 700, 750, 800, 1000, 1200, 1500, 1600, 1700 Montabert SC SC6, SC8, SC12, SC16, SC22, SC28, SC36, SC42, SC50
Atlas Copco HB 2200, 3000, 4200 Montabert V V32, V1200, V1800, V2500, V43 V45
Atlas Copco PB 110, 160, 210, 310, 420, 530 MSB MS 200H, 250H, 300H, 400H, 500H, 600H, 700H, 800H, 900H
Atlas Copco SB 50, 52,100,100MK2, 102,110, 150,150MK2, 152, 200, 202, 300, 302, 450, 452, 552 NPK E 12-X, 15-X, 18-X, 24-X, 106, 200, 201, 202, 203, 204, 205, 206, 207, 208, 210A, 212, 213, 213A, 215, 216, 218, 224, 220, 225
Atlas Copco SBC 60, 115, 255, 410, 610, 650, 800, 850 NPK GH 06, 07, 1, 2, 3, 4, 6, 10, 15, 18
Atlas Copco TEX 30H, 75H, 80H, 100H, 110H, 180H, 250H, 400, 600-900H, 1400H, 1800, 2000, 1800H, 2000H NPK H 5-X, 6-X, 7-X, 8-X, 8-XA, 10-X, 10-XB, 10-XE, 12-X, 12-XE, 16-X, 16-XE
Atlas Copco HBC 1100 – 1700 HD, 2500, 4000, 6000 Okada OKB 302 A, 303, 305, 312 B, 316, TOP 35, TOP 60B
BobCATEEEEEEEEEEEEEE B 290, 300, 400, 500, 600, 700, 850, 950, 1200, 1400 Rammer S 22, 23, 23N, 24, 25, 26, 26 N, 27, 29, 52, 54, 55, 56, 82, 83, 84, 86
BobCATEEEEEEEEEEEEEE 1750, 1250, 1560, 2500, 3500, 5060, 5500, 6560 Rammer E 63, 64, 65, 66, 66 N, 68
BobCATEEEEEEEEEEEEEE HB 280, 380, 580, 680, 880, 980, 1180, 1380, 2380 Rammer M 14, 18
H 65Ds, 70s, 90, 90Cs, 100s, 115s, 120Cs, 130, 130C, 130s, 140, 140s, 140Cs/Ds, 160, 160Cs, 170, 195s Rammer G 80, 88, 90, 100, 110,120, 130
Chicago Pneumatic CP 100, 100H, 110H, 150, 180H, 200, 250H, 290H, 300, 400 400H, 550, 600H, 700H, 750, 900H, 1150, 1400H, 1550, 1650, 1800H, 2000H, 2250, 3050, 4250 Soosan SB 4, 10 , 20, 20II , 30, 30II , 35, 35II , 40, 40II, 50, 60, 81, 121
Furukawa F 1, 2, 3, 4, 5, 6, 9, 12, 19, 20, 22, 27, 30, 35, 45, 70 Toku TNB 08M, 1E, 1M, 2E, 2M, 3E, 3M, 4E, 5E, 5M, 6E, 6,5E, 7E, 8E, 10E, 14E, 16E, 22E, 100, 190
Furukawa HB 05R, 1G, 2G, 2,5G, 3R, 100, 3G, 200, 5G, 8G, 10G, 700, 15G, 20G, 30G, 40G, 50G Toyo THBB 50, 51, 71, 101, 301, 401, 801, 1101, 1400, 1600, 2000
