EB45 Hydraulic Breaker SB20 Mini Excavator Attachment Demolition Hammer
EB45 Hydraulic Breaker SB20 Mini Excavator Attachment Demolition Hammer
EB45 Hydraulic Breaker SB20 Mini Excavator Attachment Demolition Hammer
EB45 Hydraulic Breaker SB20 Mini Excavator Attachment Demolition Hammer
EB45 Hydraulic Breaker SB20 Mini Excavator Attachment Demolition Hammer
EB45 Hydraulic Breaker SB20 Mini Excavator Attachment Demolition Hammer
EB45 Hydraulic Breaker SB20 Mini Excavator Attachment Demolition Hammer
EB45 Hydraulic Breaker SB20 Mini Excavator Attachment Demolition Hammer
EB45 Hydraulic Breaker SB20 Mini Excavator Attachment Demolition Hammer
EB45 Hydraulic Breaker SB20 Mini Excavator Attachment Demolition Hammer
EB45 Hydraulic Breaker SB20 Mini Excavator Attachment Demolition Hammer
EB45 Hydraulic Breaker SB20 Mini Excavator Attachment Demolition Hammer
Specifications
Brand Name :
Huilian
Model Number :
EB45 Hammer
Place of Origin :
China
MOQ :
1
Price :
USD; RMB
Payment Terms :
L/C, Western Union, MoneyGram, T/T
Supply Ability :
10000 pcs per Month
Delivery Time :
1-7 days
Packaging Details :
Carton, Pallet
Part Name :
SB20 Hydraulic Hammer Assembly
Performance :
Excavator Attachment
Appliion :
1.2-3 Ton Excavators
Machine Model :
PC12 PC20 EX20 EX30 ZX30 303
Operating Weight :
130 kgs
Required Oil Flow :
20-40 L/Min 5.3-10.6 gal/min
Setting Pressure :
150bar/ 2134 psi
Operating pressure :
90-120 bar/ 1280-1707 psi
Impact Energy :
271 joule/ 200 ft.lbs / 27 kg.m
Impact Rate :
700-1200/ bpm
Hose Diameter :
1/2 "
Tool Diameter :
45mm / 1.8 inch
Description

EB45 Hydraulic Breaker SB20 Mini Excavator Attachment Demolition Hammer

EB-45 Hydraulic Breaker Spec:

Hydraulic Breaker/ Hydraulic Hammer HFH 200 Suitable Excavator ton 1.2-3.0 1. Inward Valve type without accumulator
T: Open type top mounted
B: Box type top mounted
S: Open type side mounted

2. Packing Details:

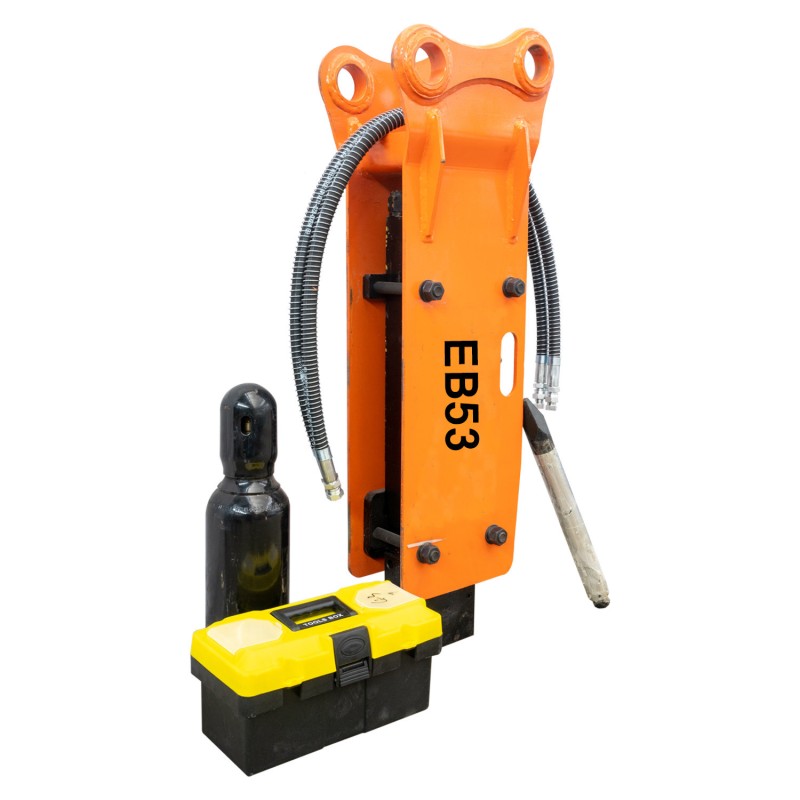

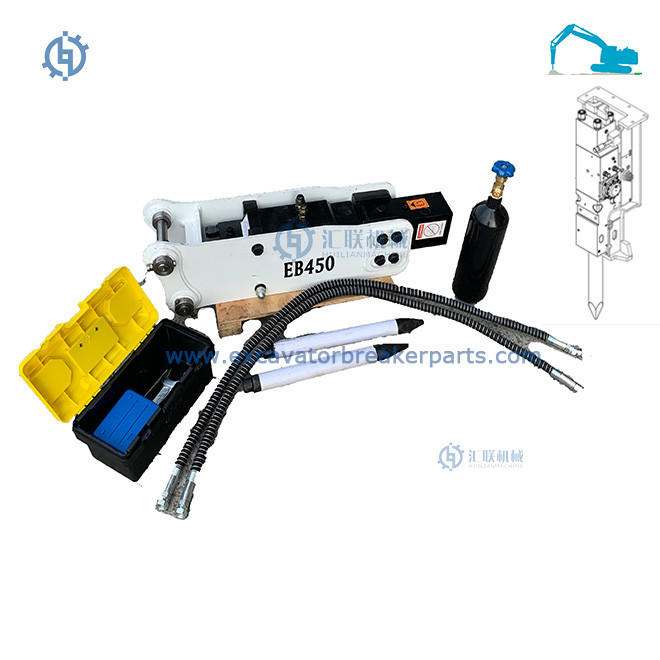

Hydraulic hammer ass'y -1pcs;
hammer chisel -2pcs;
Flexible hydraulic hose -2pcs;
Nitrogen Gas Cylinder -1pcs;
Tool box with tools -1set

3. Hydraulic Hammer Applicable Fields:
Mining: Mining, Second-time breaking.
Metallurgy: Clearing slag, Demolition of fuenace and foundation.
Road: Repairing, Breaking, Foundation work.
Railway: Tunneling, Demolition of bridge.
Construction: Demolition of building and reinforced concrete.
Ship repairing: Clearing clam and rust from the hull.
Other: Breaking frozen mud, etc.
lb 2646-6614
HFH200T Operating
Weight		 kg 121 HFH200T MOQ≥1 USD1120
lb 266
HFH200B Operating
Weight		 kg 139 HFH200B MOQ≥1 USD1385
lb 306
HFH200S Operating
Weight		 kg 99 HFH200S MOQ≥1 USD1120
lb 208
EB45 Required Oil Flow l/min 20-40
gal/min 5.3-10.6

Setting Pressure		 bar 150
psi 2134

Operating pressure		 bar 90-120
psi 1280-1707
Impact Energy joule 271
ft.lbs 200
kg.m 27
Impact Rate bpm 700-1200
Hose Diameter inch 1/2
Noise level dB 107

Tool Diameter		 mm 45
inch 1.8
EB45T Packing Size CM 1100*350*570
Weight KG 185
EB45B Packing Size CM 1100*350*570
Weight KG 230
EB45S Packing Size CM 820*400*700
Weight KG 165
Color White/Yellow/Blue/Red/Green

EB45 Hydraulic Breaker SB20 Mini Excavator Attachment Demolition Hammer

EB45 Hydraulic Breaker SB20 Mini Excavator Attachment Demolition Hammer

Furukawa Hydraulic Hammer Spare Parts Rang

HB10G, HB20G, HB30G, HB40G, F20, F22, F22A, F22(A+B1+C), F22(A+B1+B2+C+D+E), F30, F35,
F45, HB1G, HB2G, HB3G, HB5G, HB8G, HB10G, HB15G, HB18G, HB50G, HB200, HB300, HB400, HB700,
HB1200, HB1500, F1, F2, F3, F4, F5, F6, F9, F11, F12, F17, F19, F22B2, F22C, F22D, F22E, FS22, FS6, FS12,
FS27, F27, FS37, FS47, F70, F100, FXJ275, FXJ375, FXJ475
GBM60, GBM90, GBM1T, GB2T, GB3T, GB4T, GB5T, GB8AT, GB8T, GB8F, GB8AF, GB9F, GB11T, GB14T,
GB220E, GB300E, GB500E, GB170E
Hammer Parts Main Body Back Head Charging Valve Cylinder Seal Retainer
Socket Plug Piston Adapter Valve Valve Plug Valve Sleeve
Front Head Grease Nipple Rod Pin Stop Pin Rubber Plug Front Head Pin
Ring Bush Thrust Bush Upper Bush Front Cover Tool Bush Lower Bush
Rod Moil Point Chisel Washer Through Bolt Side Rod Hex Nut
Air Check Valve Valve Adjuster Accumulator Accumulator Body Accumulator Cover Socket Bolt
Charging V/V Diaphragm Seal Kit O-Ring Seal Gas Seal Step Seal
Buffer Seal Dust Seal U-Packing Back-up ring Side Bolt Upper Cushion
Down Cushion Tool Set N2 Gas Charging Set N2 Gas Cylinder B-3way valve assy


EB45 Hydraulic Breaker SB20 Mini Excavator Attachment Demolition Hammer
