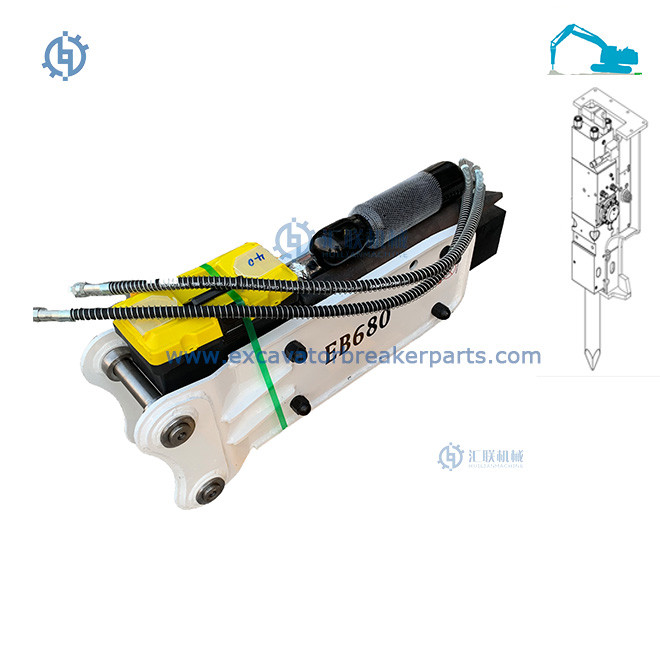

EB68 Hydraulic Breaker SB40 Excavator Attachment Hammer Construction Demolition
EB68 Hydraulic Breaker SB40 Excavator Attachment Hammer Construction Demolition
EB68 Hydraulic Breaker SB40 Excavator Attachment Hammer Construction Demolition
EB68 Hydraulic Breaker SB40 Excavator Attachment Hammer Construction Demolition
Specifications
Part Name :
SB40 Hydraulic Hammer Assembly
Performance :
Excavator Attachment
Appliion :
4-7 Ton Excavators
Machine Model :
PC40 PC50 PC60 ZX50 ZX60 305 307 EC55
Operating Weight :
320 kgs
Required Oil Flow :
40-70 L/Min 10.6-18.5 gal/min
Setting Pressure :
170bar/ 2418 psi
Operating pressure :
110-140 bar/ 1565-1991 psi
Impact Energy :
677 joule/ 500 ft.lbs / 70 kg.m
Impact Rate :
500-900/ bpm
Hose Diameter :
1/2 "
Tool Diameter :
68mm / 2.7 inch
Brand Name :
Huilian
Model Number :
EB68 Hammer
Place of Origin :
China
MOQ :
1
Price :
USD; RMB
Payment Terms :
L/C, Western Union, MoneyGram, T/T
Supply Ability :
10000 pcs per Month
Delivery Time :
1-7 days
Packaging Details :
Carton, Pallet
Description

EB68 Hydraulic Breaker SB40 Excavator Attachment Hammer Construction Demolition

EB-68 Hydraulic Breaker Spec:

Hydraulic Breaker/ Hydraulic Hammer EB68 Suitable Excavator ton 4-7 1. Inward Valve type without accumulator
T: Open type top mounted
B: Box type top mounted
S: Open type side mounted

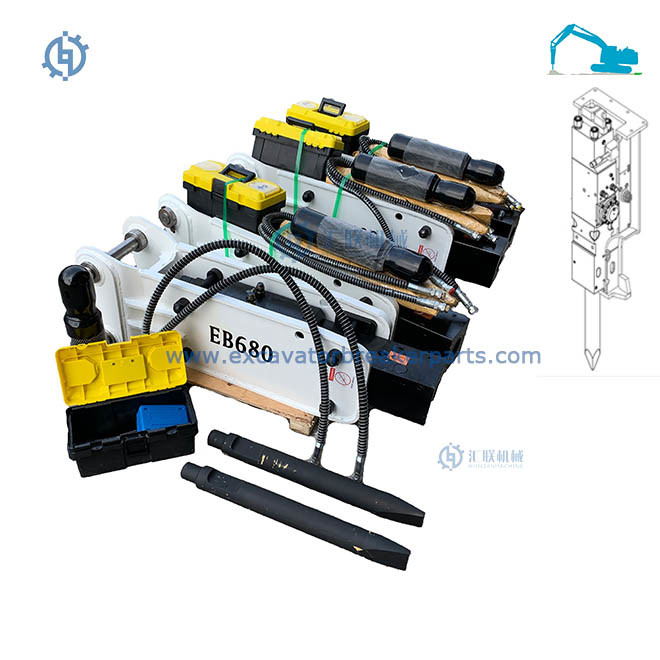

2. Packing Details:
Hydraulic hammer ass'y -1pcs;
hammer chisel -2pcs;
Flexible hydraulic hose -2pcs;
Nitrogen Gas Cylinder -1pcs;
Tool box with tools -1set

3. Hydraulic Hammer Applicable Fields:
Mining: Mining, Second-time breaking.
Metallurgy: Clearing slag, Demolition of fuenace and foundation.
Road: Repairing, Breaking, Foundation work.
Railway: Tunneling, Demolition of bridge.
Construction: Demolition of building and reinforced concrete.
Ship repairing: Clearing clam and rust from the hull.
Other: Breaking frozen mud, etc.
lb 8818-15432
EB68T Operating Weight kg 321 EB68 MOQ≥1 USD1550
lb 706
EB68B Operating Weight kg 325 MOQ≥1 USD1750
lb 715
EB68S Operating Weight kg 275 MOQ≥1 USD1880
lb 605
EB 680 Required Oil Flow l/min 40-70
gal/min 10.6-18.5

Setting Pressure		 bar 170
psi 2418

Operating pressure		 bar 110-140
psi 1565-1991
Impact Energy joule 677
ft.lbs 500
kg.m 70
Impact Rate bpm 500-900
Hose Diameter inch 1/2
Noise level dB 109

Tool Diameter		 mm 68
inch 2.7
EB68T Packing Size CM 1320*430*590
Weight KG 380
EB68B Packing Size CM 1320*430*590
Weight KG 395
EB68S Packing Size CM 1010*450*940
Weight KG 360
Color White/Yellow/Blue/Red/Green

EB68 Hydraulic Breaker SB40 Excavator Attachment Hammer Construction Demolition

Furukawa Soosan Hydraulic Hammer Spare Parts Rang

HB10G, HB20G, HB30G, HB40G, F20, F22, F22A, F22(A+B1+C), F22(A+B1+B2+C+D+E), F30, F35,
F45, HB1G, HB2G, HB3G, HB5G, HB8G, HB10G, HB15G, HB18G, HB50G, HB200, HB300, HB400, HB700,
HB1200, HB1500, F1, F2, F3, F4, F5, F6, F9, F11, F12, F17, F19, F22B2, F22C, F22D, F22E, FS22, FS6, FS12,
FS27, F27, FS37, FS47, F70, F100, FXJ275, FXJ375, FXJ475
GBM60, GBM90, GBM1T, GB2T, GB3T, GB4T, GB5T, GB8AT, GB8T, GB8F, GB8AF, GB9F, GB11T, GB14T,
GB220E, GB300E, GB500E, GB170E

SB10 , SB20 , SB30 , SB35 , SB40, SB50, SB60, SB60TR-P, SB70, SB70TR-P, SB81N, SB81, SB81TR-P, SB81A, SB85, SB121, SB121TR-P, SB130, SB130TR-P, SB140, SB140TR-P SB147, SU+85, SB85, SU+125, SB125, SB151, SB151TR-P, SB10TS-P, SB20TS-P, SB40TS-P, SB43TS-P, SB45TS-PSB50TS-P, SB60TS-P, SB70TS-P, SB81TS-P, SB100TS-P, SB121TS-P, SB130TS-P, SB140TS-P, SB151TS-P, SQ10, SQ20, SQ30, SQ35, SQ40, SQ43, SQ45, SQ50, SQ60, SQ70, SQ80, SQ100, SQ120, SQ130, SQ140, SQ150, SQ181. ET200, ET300. SB150, SB151, SB157
Hammer Parts Main Body Back Head Charging Valve Cylinder Seal Retainer
Socket Plug Piston Adapter Valve Valve Plug Valve Sleeve
Front Head Grease Nipple Rod Pin Stop Pin Rubber Plug Front Head Pin
Ring Bush Thrust Bush Upper Bush Front Cover Tool Bush Lower Bush
Rod Moil Point Chisel Washer Through Bolt Side Rod Hex Nut
Air Check Valve Valve Adjuster Accumulator Accumulator Body Accumulator Cover Socket Bolt
Charging V/V Diaphragm Seal Kit O-Ring Seal Gas Seal Step Seal
Buffer Seal Dust Seal U-Packing Back-up ring Side Bolt Upper Cushion
Down Cushion Tool Set N2 Gas Charging Set N2 Gas Cylinder B-3way valve assy
