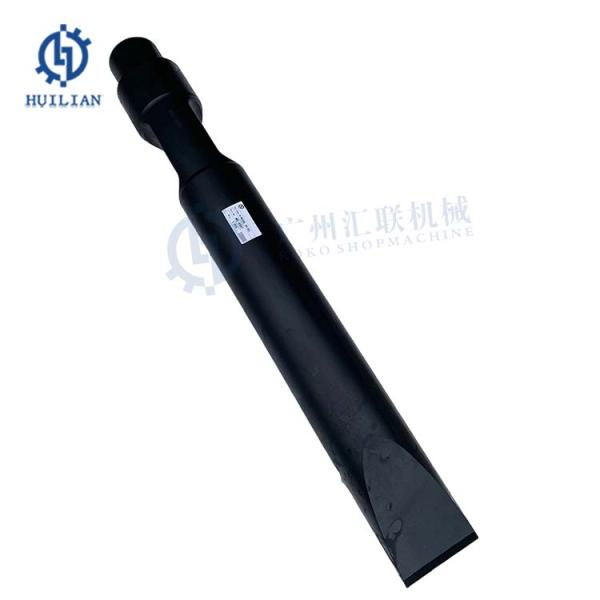

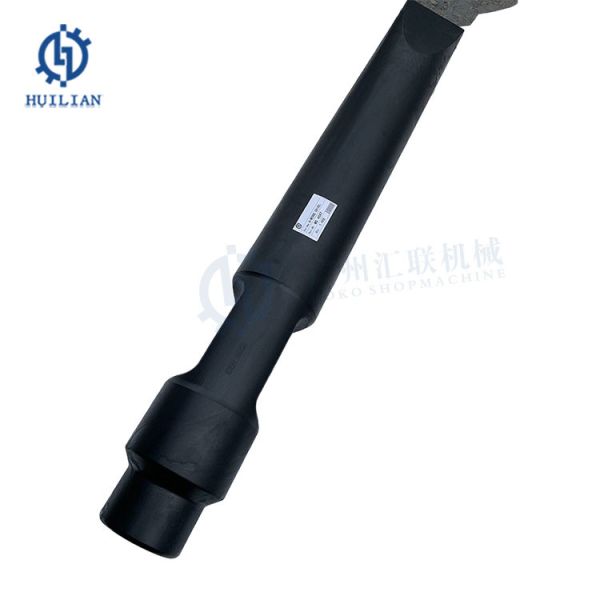

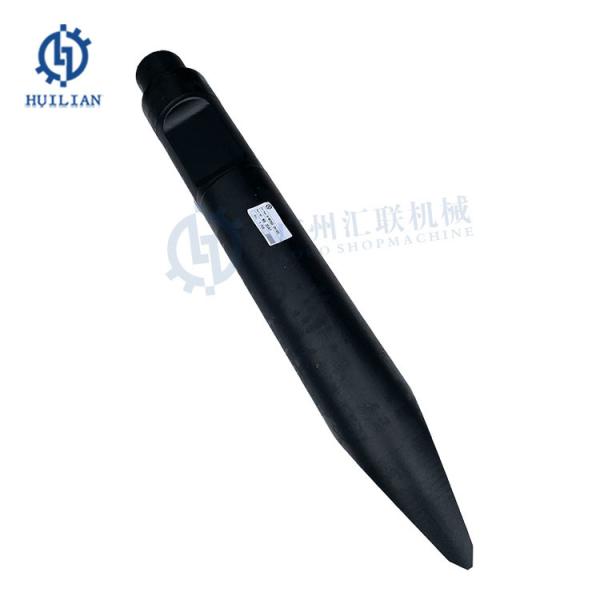

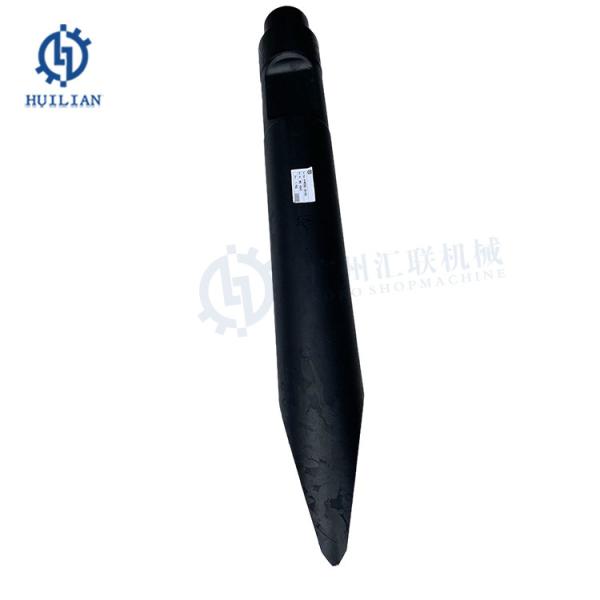

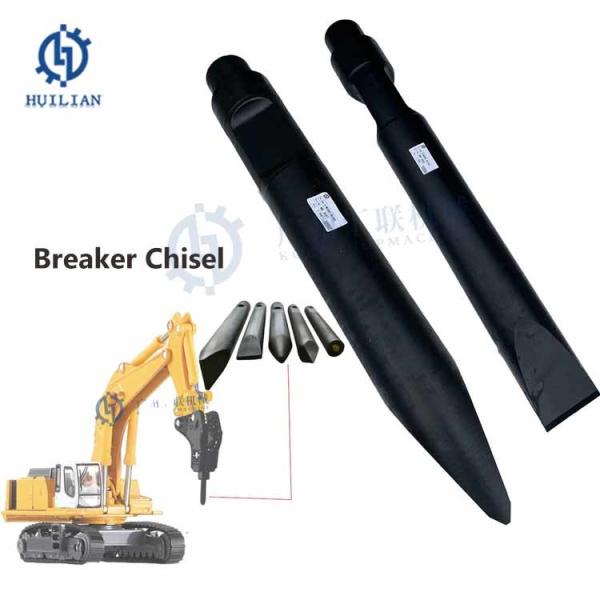

MSB MS35AT MS45AT Demolition Concrete Rock Hydraulic Crushing Hammer Chisels for Excavator Breaker Chisel
MSB MS35AT MS45AT Demolition Concrete Rock Hydraulic Crushing Hammer Chisels for Excavator Breaker Chisel
MSB MS35AT MS45AT Demolition Concrete Rock Hydraulic Crushing Hammer Chisels for Excavator Breaker Chisel
MSB MS35AT MS45AT Demolition Concrete Rock Hydraulic Crushing Hammer Chisels for Excavator Breaker Chisel
MSB MS35AT MS45AT Demolition Concrete Rock Hydraulic Crushing Hammer Chisels for Excavator Breaker Chisel
MSB MS35AT MS45AT Demolition Concrete Rock Hydraulic Crushing Hammer Chisels for Excavator Breaker Chisel
MSB MS35AT MS45AT Demolition Concrete Rock Hydraulic Crushing Hammer Chisels for Excavator Breaker Chisel
MSB MS35AT MS45AT Demolition Concrete Rock Hydraulic Crushing Hammer Chisels for Excavator Breaker Chisel
Specifications
Brand Name :
Huilian
Model Number :
MS35AT MS45AT
CertifiCATEEEEion :
ISO9001
Place of Origin :
China
MOQ :
1 Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, MoneyGram
Supply Ability :
1000 PCS per month
Delivery Time :
2-7days
Packaging Details :
Pallet packing
CertifiCATEion :
ISO9001
Part Name :
Rock breaker chisel
Model :
MS35AT MS45AT
Material :
42CrMo
Chisel type :
Moil Point, Blunt Tool, Flat, wedge
Surface Hardness :
HRC51± 3
Quality :
High Quality Durable Stable Safety
Core Hardness :
HRC35± 3
AppliCATEEEEion :
Construction mining demolition tunnel etc.
Description

FEATURES AT A GLANCE
DAMAGE-RESISTANT MATERIAL
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE

MSB MS35AT MS45AT Demolition Concrete Rock Hydraulic Crushing Hammer Chisels for Excavator Breaker Chisel

ModelApple to different size of hydraulic breaker hammer
PerformanceMaterial is 42CrMn, multiple heat treatment to ensure the rigidity. Check every rigidity of every pieces before leaving factory.
Applicable IndustryConstruction, mining, road and highway construction, building demolition, foundation construction, tunnel, stone and rock breaking, ditching and special sites etc.


Packing & Shipping
1, We pack the products by simple pallet or cx which is seaworthy.
2, Fast delivery time: 3-5 days for small quantity, and 7-15 days for container quantity.
3, We have a team specialized in packing and loading container, they have rich experience, and can load the max quantity products, which can help custmer save the acean freight.
Heat Treatment:
Austenting Temperature 810~850 (20min/inch)
Cooling Water oil cooling
Tempering 250~300 (1hr/inch)
Mechanical Properties:
Surface Hardness HRC51± 3
Core Hardness HRC35± 3
Tensile strength(min) 1250N/mm²
Yield point (min) 950N/mm²
Elongation 10~14%
Reduction of Area 35~40%
Impact work 23~28 ft1b
Grain size 7.0~8.0

We Can Provide Following Hydraulic Breaker Parts

Hammer PartsMain BodyBack HeadCharging ValveCylinder
Socket PlugPistonAdapterValveValve Plug
Front HeadGrease NippleRod PinStop PinRubber Plug
Ring BushThrust BushUpper BushFront CoverTool Bush
Rod Moil PointChiselWasherThrough BoltSide Rod
Air Check ValveValve AdjusterAccumulatorAccumulator BodyAccumulator Cover
Charging V/VDiaphragmSeal KitO-Ring SealGas Seal
Buffer SealDust SealU-PackingBack-up ringSide Bolt
Down CushionTool SetN2 Gas Charging SetN2 Gas CylinderB-3way valve assy
Seal RetainerValve SleeveFront Head PinLower BushHex Nut
Socket BoltStep SealUpper CushionRubber PadShock Absorber

MSB MS35AT MS45AT Demolition Concrete Rock Hydraulic Crushing Hammer Chisels for Excavator Breaker Chisel
We have hydraulic breaker chisel for following items

KruppHM45,HM50/60,HM60/75,HM85,HM130/135,HM170/185,HM200,HM300/301,
HM400/401,HM550,HM560CS,HM580,HM600/601,HM700
RAMMERS21,S20/22,ROX100,S23,S25,S26/,ROX400,S29,S52/,ROX700,
S54/700,S55,S56/800,S82/1400
N.P.KH1XA,H2XA,H3XA,H4X,H6XA,H7X,H8XA,H10XA
INDECOMES350,HB5,MES553,MES621,MES1200,HB12,HB19,MES1800,HB27,MES2500
MONTABERTBRH30,BRH40,BRH45,BRH60,BRH76/91,BRP100,BRP130,BRP125,BRH250,
RH501,BRH620,BRH625,BRH750,BRV32
STANLEYMB125,MB250/350,MB550,MB656,MB800,MB1550,
MB1950/1975,MB30EX,MB40EX
FURUKAWAHB05R,HB1G,HB2G,HB3G,HB5G,HB8G,HB10G,HB15G,HB20G
HB30G,HB40G,HB50G,
TOKU/TOYOTNB1E,TNB2E,TNB4E,TNB6E,TNB7E,TNB14E,TNB22EA,THBB101,
OKADAOUB301,OUB302,OUB303,OUB305,OUB308,OUB310,OUB312,OUB316,OUB318,
SOOSANSB10,SB20,SB30,SB35,SB40,SB43,SB45,SB50,SB60,SB70,SB81,
SB100,SB121,SB130,SB151
KWANGLIMSG200,SG300,KSG350,SG400,SG600,SG800,SG1200,SG1800,SG2100,SG2500,
DAEMODMB03,DMB04,DMB06,S150-V,S300-V,S500-V,S700-V,S900-V,S1300-V,S1800-V
HANWOORHB301,RHB302,RHB303,RHB304,RHB305,RHB306,RHB308,RHB309,RHB313,
DAINONGD30,D50,D60,D70/90,D110,D130,D160,T180,K20
K25,K30,K50,K80,K120,K55S,K40S,

MSB MS35AT MS45AT Demolition Concrete Rock Hydraulic Crushing Hammer Chisels for Excavator Breaker Chisel
