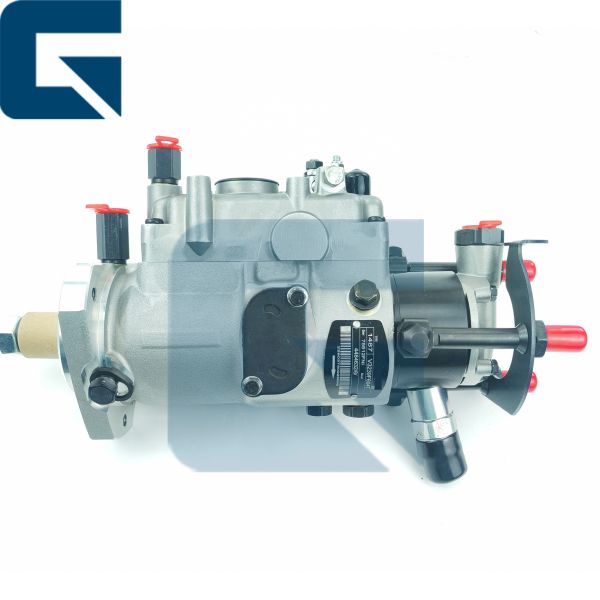

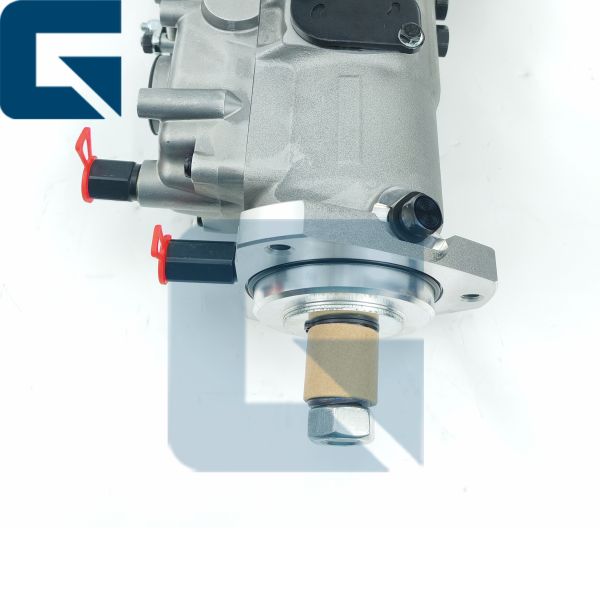

3239F604T Diesel Fuel Injection Pump for C3.3 Engine
3239F604T Diesel Fuel Injection Pump for C3.3 Engine
3239F604T Diesel Fuel Injection Pump for C3.3 Engine
3239F604T Diesel Fuel Injection Pump for C3.3 Engine
3239F604T Diesel Fuel Injection Pump for C3.3 Engine
3239F604T Diesel Fuel Injection Pump for C3.3 Engine
3239F604T Diesel Fuel Injection Pump for C3.3 Engine
3239F604T Diesel Fuel Injection Pump for C3.3 Engine
Specifications
Brand Name :
JIAJUE
Model Number :
c3.3
Place of Origin :
CHINA
MOQ :
1
Price :
Please send mail or WhatsApp
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,
Supply Ability :
1000PCS/MONTH
Delivery Time :
1 Works day
Packaging Details :
3239F604T Diesel Fuel Injection Pump for C3.3 Engine is Packed in standard export packing under customer's requirement
Part Number :
3239F604T
MOQ :
1
Description
3239F604T Diesel Fuel Injection Pump for C3.3 Engine
High-performance diesel fuel injection pump designed for reliable operation and optimal fuel delivery.
Product Specifications
Product Name Fuel Injection Pump
Part Number 3239F604T
Brand Name JIAJUE
Model C3.3
Condition Brand New
Availability Rich Stock
Approximate Weight 11KG
Size (for 1pc) 40cm x 40cm x 40cm
Delivery Methods DHL FedEx TNT UPS
Warranty 3 months
Shipment Dispatched within 24-48 hours
Product Testing

3239F604T Diesel Fuel Injection Pump for C3.3 Engine

3239F604T Diesel Fuel Injection Pump for C3.3 Engine

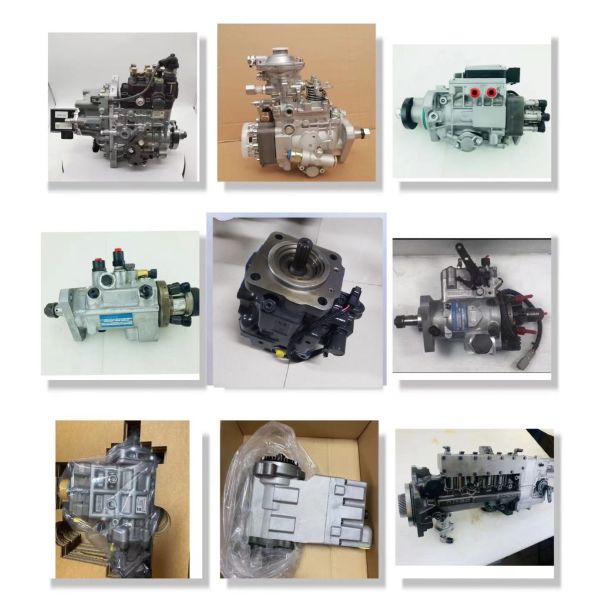

Related Products
3239F604T Diesel Fuel Injection Pump for C3.3 Engine
Frequently Asked Questions
How do I install my Fuel Injection Pump after purchasing it?
Please refer to the "Step-by-Step Installation Guide" on our product details page, which contains very detailed installation instructions for how to install the 387-9427 injection pump.
What precautions should I take before installing my Fuel Injection Pump?
System Flushing is crucial! Before installing the new pump, the entire fuel system (tank, lines, and rail) must be cleaned to remove metal debris from the old failed pump.
Does this pump include the Solenoid Valve?
Yes, our 319-0677 comes fully assembled with a pre-tested solenoid.
Is my machine compatible with this part number of Fuel Injection Pump?
If you're not sure if this fits your machine, please send us your Engine Serial Number (ESN) for free verification.
How long will it take to receive my package after I make the payment?
This depends on your country and region, and the customs clearance time in your country. Please feel free to contact us and send us your address and postal code so we can check shipping costs and estimate delivery time for you.
Step-by-Step Installation Guide
Pro-Tip: Since the pump works within the HEUI system, ensure your engine oil is fresh and of the correct viscosity (e.g., 15W-40). Dirty oil will cause the pump to fail prematurely as it relies on oil pressure to actuate.
  1. System Decontamination (System Flush)
    Before removing the old pump, drain and flush the fuel tank and fuel lines. Metal shavings from a failed pump can circulate and instantly destroy your new unit.
  2. Inspect the Transfer Pump & Filters
    Replace both the primary and secondary fuel filters. Ensure you use high-efficiency (2-micron) filters. Inspect the fuel transfer pump for wear; if it's weak, the high-pressure pump won't receive enough fuel.
  3. Oil Quality Check
    Change the engine oil and oil filter. HEUI pumps use engine oil to create high-pressure fuel injection. Dirty or incorrect viscosity oil (e.g., using 10W-30 instead of 15W-40 in high temps) will cause immediate performance issues.
  4. Lubrication on Install
    Apply clean engine oil to the O-rings and the pump drive gear. Warning: Never dry-start. Fill the pump with clean diesel through the inlet before connecting the lines.
  5. Torque Sequence
    Tighten the mounting bolts in a cross-pattern to the manufacturer's specified torque (refer to C7/C9 service manual).
Troubleshooting Guide
Issue Possible Cause Solution
Engine Won't Start Air trapped in the fuel lines Bleed the fuel system thoroughly.
Low Fuel Pressure Clogged fuel filters or a leaking SCV (Suction Control Valve) Replace filters; inspect the SCV for debris.
Black Smoke / Power Loss Contaminated fuel causing plunger wear Drain fuel tank; use high-quality diesel.
Loud Knocking Noise Improper timing or loose mounting bolts Re-calibrate the timing and check bolt torque.
Company Profile
3239F604T Diesel Fuel Injection Pump for C3.3 Engine
Exhibition
3239F604T Diesel Fuel Injection Pump for C3.3 Engine 3239F604T Diesel Fuel Injection Pump for C3.3 Engine
Factory Environment
3239F604T Diesel Fuel Injection Pump for C3.3 Engine

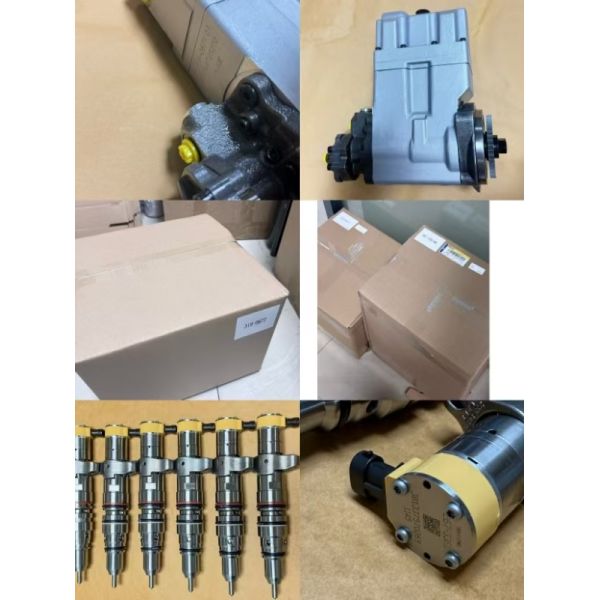

Packaging & Shipping
