Replacement Parts For Leak-Proof Wheel Hub Seals Of R170W-7/R170W Wheeled Excavators
Replacement Parts For Leak-Proof Wheel Hub Seals Of R170W-7/R170W Wheeled Excavators
Replacement Parts For Leak-Proof Wheel Hub Seals Of R170W-7/R170W Wheeled Excavators
Replacement Parts For Leak-Proof Wheel Hub Seals Of R170W-7/R170W Wheeled Excavators
Replacement Parts For Leak-Proof Wheel Hub Seals Of R170W-7/R170W Wheeled Excavators
Replacement Parts For Leak-Proof Wheel Hub Seals Of R170W-7/R170W Wheeled Excavators
Replacement Parts For Leak-Proof Wheel Hub Seals Of R170W-7/R170W Wheeled Excavators
Replacement Parts For Leak-Proof Wheel Hub Seals Of R170W-7/R170W Wheeled Excavators
Replacement Parts For Leak-Proof Wheel Hub Seals Of R170W-7/R170W Wheeled Excavators
Replacement Parts For Leak-Proof Wheel Hub Seals Of R170W-7/R170W Wheeled Excavators
Specifications
Brand Name :
WYS
Model Number :
R170W-7/R170W
CertifiCion :
ISO 9001、ISO 14001
Place of Origin :
Korea
MOQ :
1 set
Price :
$25-$30/set
Payment Terms :
L/C,T/T,D/P,D/A,Alipay,Trade Assurance
Supply Ability :
500 sets/day
Delivery Time :
5-8 work days
Packaging Details :
Plastic/cardboard box/ custom-made
Marketing Type :
New Product 2025
Lead Time :
5-8Day After Payment
Service :
OEM/custom made
Applicable Main Fluid :
General oil hydraulic oil
Installationmethod :
Press Fit
Temprature :
20℃ to +200℃
Productname :
Hydraulic Oil Seal
Port :
designated port
Packing :
Common packing or as customer
Characteristics :
NBR (A567) is used in the material,
Standard Or Nonstandard :
standard
Weight :
0.6-0.8kg/SET
Description

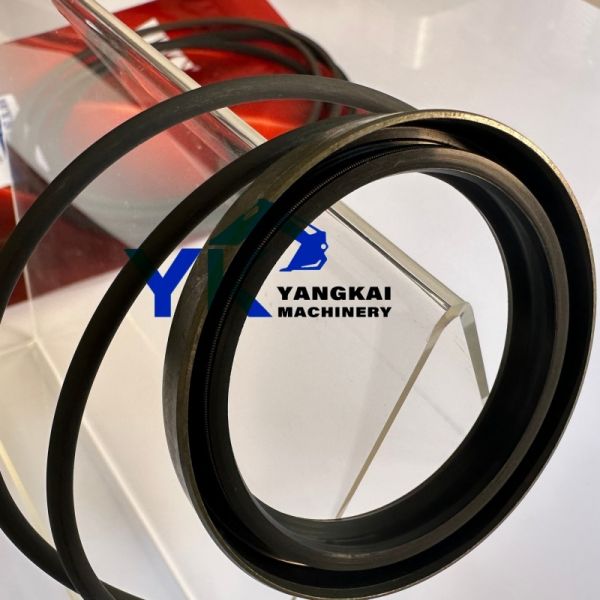

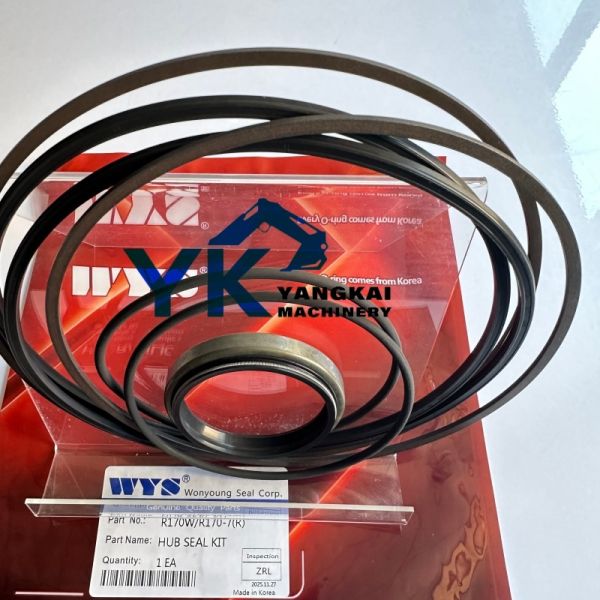

Replacement Parts For Leak-Proof Wheel Hub Seals Of R170W-7/R170W Wheeled Excavators
Working Principle

This hydraulic/mechanical combination seal achieves optimal sealing through an elastic sealing lip, preload spring, and dustproof structure:

  • The sealing lip (rubber material) adheres tightly to the shaft/hub surface under spring preload, forming an initial seal
  • When lubriCing oil/hydraulic oil pressure exists inside the hub, the pressure opens the sealing lip, further enhancing contact surface fit (self-tightening sealing effect)
  • Some models include a dustproof ring to prevent external dust, water, and contaminants from entering
Core Parameters
MODEL R170W-7/R170W
Material Seals: Nitrile rubber (NBR) / Fluororubber (FKM)
Size Common specifiCions for wheel hub seals (Hyundai R170W-7 example): Inner diameter (ID) ≈ 100-120mm, outer diameter (OD) ≈ 140-160mm, thickness (H) ≈ 15-25mm (subject to actual product)
Hardness Rubber portion has Shore A hardness of 70-90 (balancing elasticity and abrasion resistance)
Weight Each set weighs approximately 0.6-0.8 kg
Temperature range Nitrile rubber (NBR): -30℃ to +80℃; Fluororubber (FKM): -20℃ to +200℃ (depending on material)
Work pressure Wheel hub seals typically withstand 0.05-0.3 MPa (low-pressure seals, some models can withstand up to 0.5 MPa)
Replacement Parts For Leak-Proof Wheel Hub Seals Of R170W-7/R170W Wheeled Excavators
Applicable Models
MAINLY Primarily compatible with Hyundai wheeled excavators
MODEL Hyundai R170W-7 wheeled excavator
MODEL Hyundai R170W-9/R170W-9S wheeled excavator
MODEL Partially compatible with R200W-7, R210W-9, and other similar wheeled excavators (specific model may vary)
Replacement Parts For Leak-Proof Wheel Hub Seals Of R170W-7/R170W Wheeled Excavators
Core Functions
  • Prevent leakage of lubriCing oil and hydraulic oil from inside the wheel hub/axle
  • Block external dust, mud, water, and impurities from entering, protecting bearings and components
  • Extend service life of wheel hub bearings and axles
  • Maintain stable pressure in hydraulic/lubriCion system, preventing equipment failure
Post-Installation Inspection
  • Rotation Test: Manually rotate the hub to confirm no jamming or abnormal noise (if any abnormality found, disassemble and check if seals are misaligned)
  • Leakage Test: After starting equipment, run at low speed for 5-10 minutes and observe for oil leakage at seals
  • After equipment has been working for 1-2 hours, check cleanliness of seals and presence of any leaks again
Replacement Parts For Leak-Proof Wheel Hub Seals Of R170W-7/R170W Wheeled Excavators
About Guangzhou Yangkai Mechanical Seals Co., Ltd.

We are a manufacturer specializing in high-quality excavator seals and hold the exclusive distributorship in China for WYS (Korea).

Our company adheres to the business philosophy of integrity and provides customers with superior seals and related sealing products. Since inception, we have provided wholesale services to clients in Southeast Asia, the Middle East, and South America, establishing solid partnerships.

Our development is inseparable from client support. No matter where you are from, we hope to work hand in hand with you, repaying your support with the best products and services.

Replacement Parts For Leak-Proof Wheel Hub Seals Of R170W-7/R170W Wheeled Excavators

We regularly participate in well-known domestic and international construction machinery exhibitions (Bauma China, Russia, Indonesia, Iran) and have established good cooperative relationships with international partners. We look forward to meeting you in the future.

Replacement Parts For Leak-Proof Wheel Hub Seals Of R170W-7/R170W Wheeled Excavators
Payment & Shipping Terms

Payment Methods: T/T, D/P, Trade Assurance, Alipay

Transport Options: DHL, UPS, TNT, FedEx, Sea Freight

Delivery Terms: EXW, FOB, CIF, DAP, DDP
