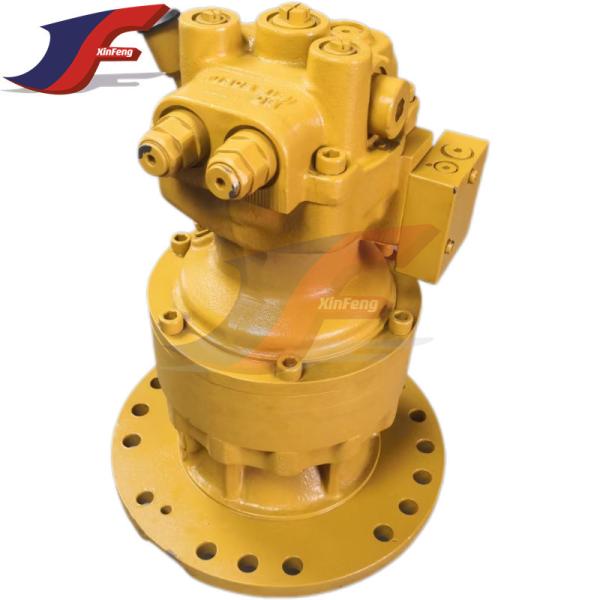

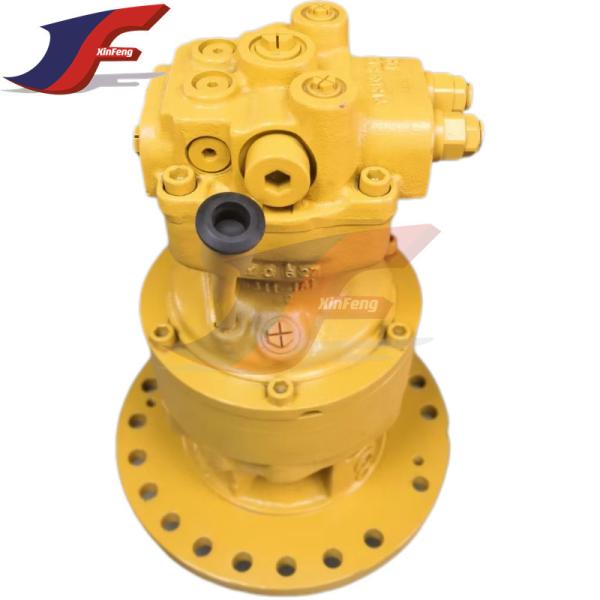

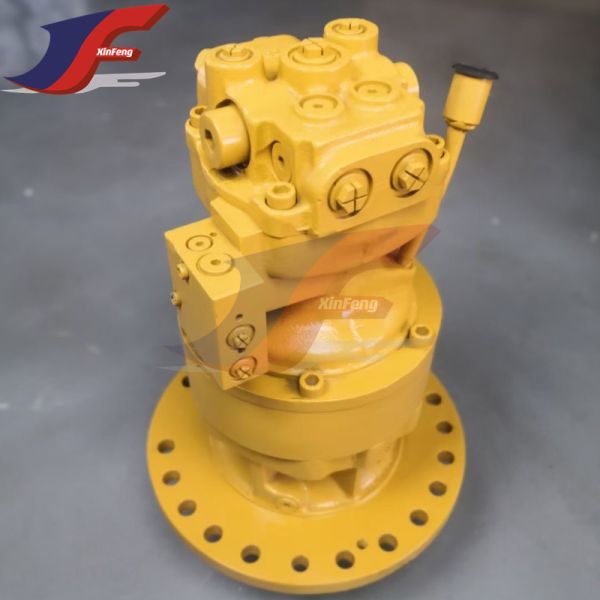

307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor
307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor
307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor
307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor
307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor
307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor
Specifications
Warranty :
3 months
Quality :
Good quality
Model :
SG04
Package :
Woodenbox
Part Number :
148-1774
Place of Origin :
China
Product name :
Hydraulic Swing Motor
Delivery :
1-3 Working Days
Model Number :
307B 307C 308B
Certifiion :
ISO9001
MOQ :
1 Sets
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
500-Sets/month
Delivery Time :
3-5 days
Packaging Details :
Wooden Case Packing
Video outgoing-inspection :
Provided
Description
307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor
307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor 307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor 307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor
Product Description
307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor 307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor

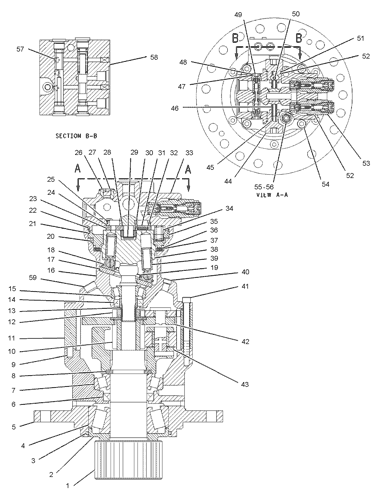

Pos. Part No Qty Parts name Comments
1 5I-9287 [1] SHAFT-PINION
2 5I-9288 [1] CAGE
3 095-1563 [1] SEAL-O-RING
4 5I-9289 [1] BEARING AS
5 123-1764 [1] HOUSING
6 5I-9291 [1] SEAL-LIP TYPE
7 5I-9292 [1] BEARING AS
8 5I-9293 [2] SPACER
9 5I-9294 [2] PIN
10 5I-9295 [1] GEAR-SUN (17-TEETH)
11 5I-9296 [1] GEAR-RING (58-TEETH)
12 5I-9297 [1] GEAR-SUN (15-TEETH)
13 5I-9298 [1] RING
14 5I-9299 [1] SEAL-LIP TYPE
15 5I-9300 [1] BEARING-ROLLER
16 143-8089 [1] HOUSING
17 5I-9302 [1] PLATE
18 5I-9303 [1] PLATE
19 5I-9304 [1] SPRING
20 5F-3106 [1] SEAL-O-RING
21 2H-3935 [1] SEAL-O-RING
22 127-0012 [1] SEAL-O-RING
23 114-0606 [1] PLATE
24 5I-9308 [4] BUSHING
25 5I-9309 [4] RING
26 099-0371 [2] PLUG
27 095-1579 [2] SEAL-O-RING
28 5I-9310 [4] PLATE
29 5I-9311 [1] RING
30 5I-9312 [1] BEARING
31 114-0607 [2] PISTON
32 114-0611 [2] RING
33 116-3410 [1] COVER
34 5I-9315 [16] SPRING
35 5I-9316 [1] PISTON-BRAKE
36 5I-9317 [2] PLATE
37 5I-9318 [2] PLATE-FRICTION
38 5I-9320 [1] BARREL AS
39 110-7182 [1] PISTON AS
40 095-0966 [1] PLUG
41 095-9232 M [6] BOLT-SOCKET HEAD (M12X1.75X95-MM)
42 5I-9322 [1] CARRIER AS
43 5I-9329 [1] CARRIER AS

5I-9323 [3] GEAR-PLANETARY

5I-9324 [3] BUSHING

5I-9325 [3] WASHER

5I-9326 [3] SHAFT-PLANETARY

5I-9328 [1] CARRIER-PLANETARY

099-8111 [3] PIN-SPRING
44 096-5932 [2] PLUG
45 096-5934 [2] SPRING
46 096-5933 [2] VALVE-CHECK (MAKEUP)
47 095-1587 [2] SEAL-O-RING
48 095-1786 [2] RING-BACKUP
49 5I-9331 [2] VALVE AS
50 099-0329 [1] PIN
51 095-1789 [2] RING
52 095-1594 [4] SEAL-O-RING
53 137-9279 [2] VALVE GP-RELIEF
54 8T-3957 M [4] BOLT-SOCKET HEAD (M12X1.75X30-MM)
55 9S-4191 [1] PLUG
56 3J-1907 [1] SEAL-O-RING
57 2D-6392 [3] SEAL-O-RING
58 7I-2883 [1] VALVE AS
59 095-0968 [2] PLUG
M

METRIC PART
307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor 307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor
Maintenance
The swing part of excavator is one of the important components, and it needs regular maintenance to ensure its normal operation and extend its service life. Here are some common steps for maintaining the swing of excavator:
  • Cleaning the swing part: Use a high-pressure water gun or detergent to clean the swing part to remove accumulated dirt, dust and other debris. Make sure it is cleaned thoroughly and be careful not to spray water directly into the electrical and hydraulic components.
  • Lubricate the swing part: Check and lubricate the lubrication points of the swing part, including the swing bearing, gears and connecting parts. Use appropriate lubricants and lubricate according to the manufacturer's recommendations.
  • Inspect the swing bearing: Check the wear and looseness of the swing bearing. Make sure there is no abnormal noise or excessive looseness of the swing bearing. If any abnormality is found, it should be repaired or replaced in time.
  • Inspect the gears and transmission parts: Check the wear of the gears, chains and transmission parts of the swing part. Clean, lubricate or replace if necessary.
  • Inspect the electrical system: Check the electrical system of the swing part, including the connecting lines, switches and sensors. Make sure the electrical system is working properly and there are no damaged or loose parts.
  • Check the hydraulic system: Check the hydraulic system of the swing part, including the quality and level of the hydraulic oil. If necessary, replace the hydraulic oil and clean the hydraulic filter.
  • Check the safety devices: Make sure that the safety devices of the swing part, such as warning lights, sound alarms and limiters, are working properly.
Please note that the above steps are only general guidelines, and the specific maintenance procedures and requirements may vary depending on the model, year and manufacturer. Therefore, it is recommended to refer to the user manual of the excavator or consult a professional technician to ensure the correct swing maintenance procedures. In addition, regular maintenance and inspections are essential to keep the excavator in good condition and safe operation.
307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor
Packing
307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor
Shipping Methods
BY EXPRESS, AIR, SEA 307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor
About Xinfeng Machinery (XF) Parts
Xinfeng Machinery Parts Company was established in 1998. It is a professional team composed of high-quality technical personnel integrating production, maintenance, sales, and service. It is committed to providing customers with high-quality and efficient services. It is headquartered in Guangzhou, China. We have been engaged in the excavator industry for 25 years. We sell original used parts, rebuilt parts, original new parts, and OEM new parts for many types. We can provide many types for you to choose from. We can provide a quality-trusted full range of hydraulic pumps, travel motors, final drives, main control valves, swing motors, and engines for KOMATSU, HITACHI, JD, EC, CASE JCB, KOBELCO, NEW HOLLAND, SUMITOMO, KATO, BOB, DOOSAN, and HYUNDAI. We provide a customer satisfaction guarantee on all our products. We have invested in providing only the highest-quality replacement parts to our customers. Develop a more broad business space together based on long-term, friendly, mutually beneficial, and win-win business relations.
307B 307C 308B Excavator Swing Motor 148-1774 Swing Gearbox With Motor
Frequently Asked Questions
1. How to quickly and accurately buy products what I needed?
A: Provide the original parts number to us to check.
2. How long have you been in the excavator business?
A: We are engaged in excavator parts since 1998
3. If I don't know the part number, what should I do?
A: Please send us size and pictures of old products.
4. What is the warranty of the products?
A: The warranty is 6/12 Months based on the specific product.
5. How long is your delivery time?
A: The normal delivery time is 3-5 days for stock products after getting payment. If not in stock, we will inform you the time required.
6. Which shipping term you can supply?
A: By sea, air or by express (DHL, Fedex, TNT, UPS, EMS)
7. What is your MOQ?
A: Small order and sample order are acceptable
8. Do you have any After-Sales service?
A: Yes! Our company provides comprehensive after-sales service.
