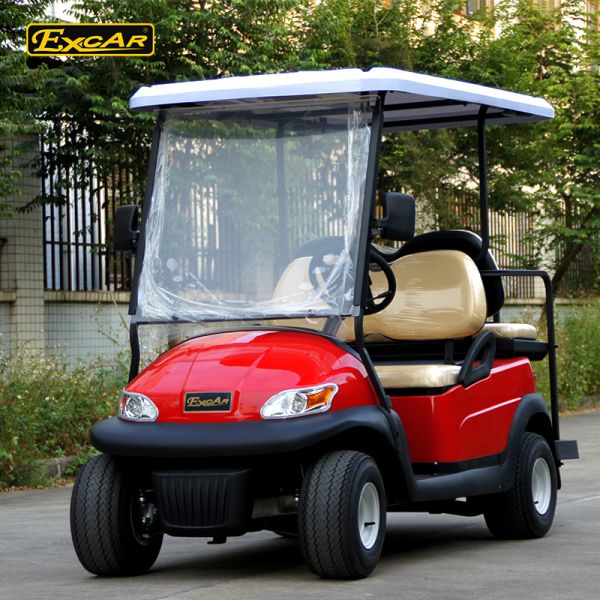

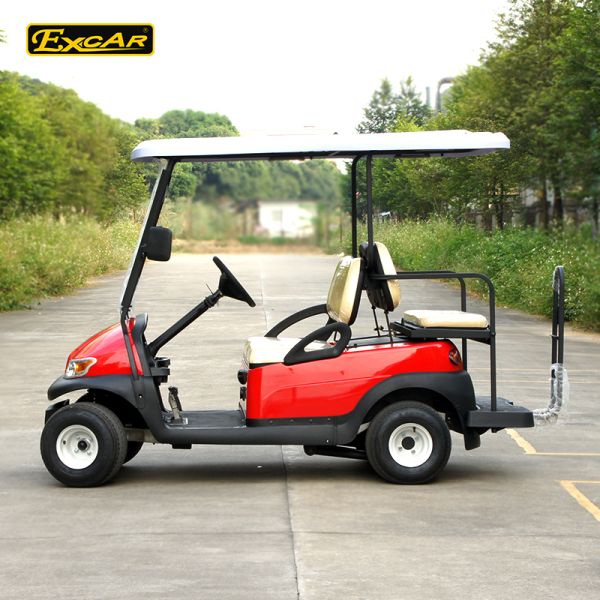

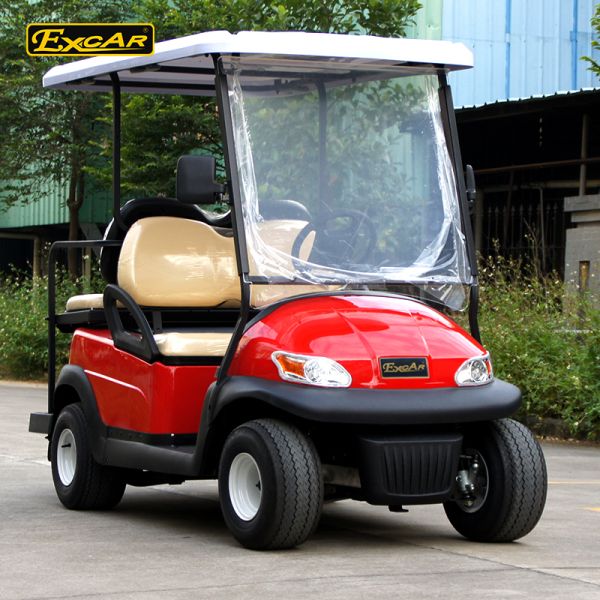

Electric Golf Buggy Designed to Accommodate Four Passengers with Comfortable Seating and Powertrain for Smooth Operation
Electric Golf Buggy Designed to Accommodate Four Passengers with Comfortable Seating and Powertrain for Smooth Operation
Electric Golf Buggy Designed to Accommodate Four Passengers with Comfortable Seating and Powertrain for Smooth Operation
Electric Golf Buggy Designed to Accommodate Four Passengers with Comfortable Seating and Powertrain for Smooth Operation
Electric Golf Buggy Designed to Accommodate Four Passengers with Comfortable Seating and Powertrain for Smooth Operation
Electric Golf Buggy Designed to Accommodate Four Passengers with Comfortable Seating and Powertrain for Smooth Operation
Specifications
Brand Name :
Excar
Model Number :
A1S2+2
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
20 days
Packaging Details :
None
Color :
Based On Pantone Number
Batteries: :
Lead-acid Wet Batteries USA Trojan T-875
Motor: :
ADC Separately Excited Motor 3.7w
Max. Forward Speed: :
25KM/H-40KM/H
Transaxle: :
Italy Graziano Axle 12:1
Controller: :
USA Curtis Controller 275A
Warranty: :
1 Year Sicne The Day To Ship Out
Min Turning Radius :
2.9m
Range :
80-100km
Suitable for :
Golf Course, Hotel
Power Fuel :
Electric
HS Code :
87031019
Description

Product Description

Item Description
System DC system AC system
Controller Curtis controller 1266A-5201, 275A, imported from USA directly Curtis controller 1234E-5221, 275A, imported from USA directly
Motor ADC brand Separately excited
DC motor 48V 3.7kw		 ADC brand Separately excited
AC motor 48V 3kw
Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle Italian GRAZIANO axle
with gear ration 1:12		 Italian GRAZIANO axle
with gear ration 1:16
Charger High Frequency onboard charger
48V/17A regulator		 High Frequency onboard charger
48V/17A regulator

Performance

Model:A1S2+2
Passenger capacity 4 person
Chassis Aluminum chassis
Standard specification
Dimension 3200*1200*2000mm
Load 400kgs
Groad clearance 150mm
F/R tyre distant 860/970mm
Wheelbase 1670mm
Net weight(ex.Bat) 400kg
Climbing capacity 30%
Endurance mileage 80-100km
Max forward speed 35km/h
Drive system
Motor 48V 3.7KW USA ADC
Battery USA Trojan T-875 6*8V
Charger KN offboard charger
Tranaxle Italian GRAZIANO gear ratio 1:12
Controller Curtis controller 48V 400A

Option Accessories

To increase the sales value of our golf cart, we also provide many optional accessories

.

Item Option description Item Option description
1 E-key 11 2-point seatbelt
2 Hinged windshield 12 Battery water refill system
3 Laminated windshield with wiper 13 Digital meter
4 Steel brush guard 14 EM brake
5 Front steel basket 15 Four wheel disc brake
6 Inner rear view mirror 16 Carlisle 205/50-10tyre with10inch wheel
7 Side rear view mirror 17 Ice box
8 Enclosure 18 Sand bottle
9 Sunshine cover 19 Sand rake
10 Golf bag cover 20 Ball washer
