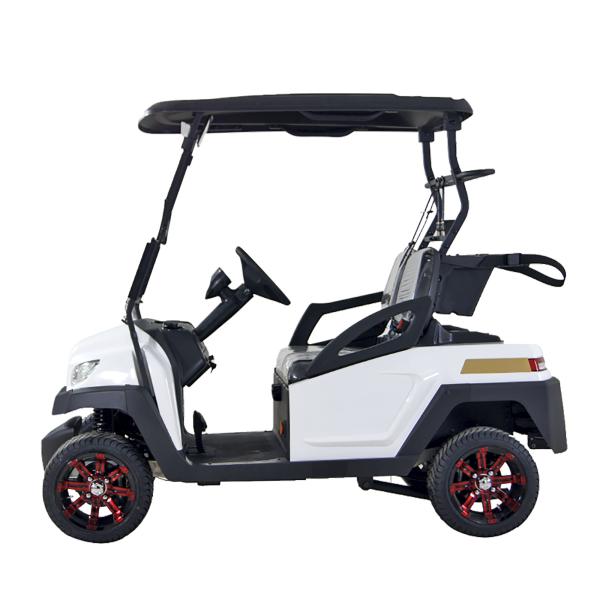

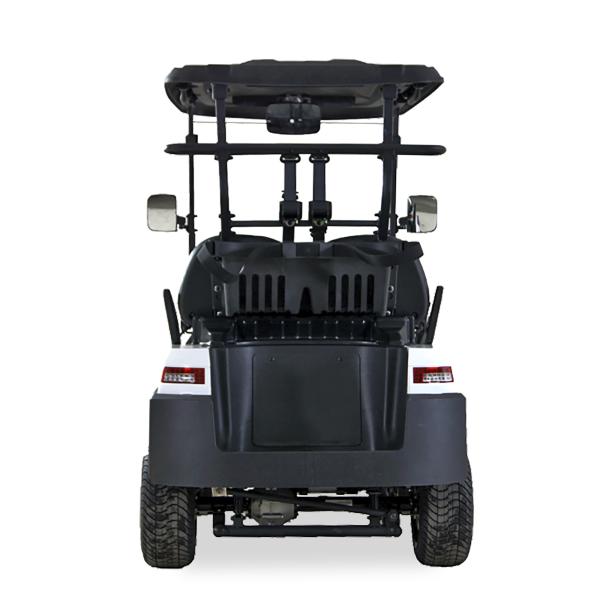

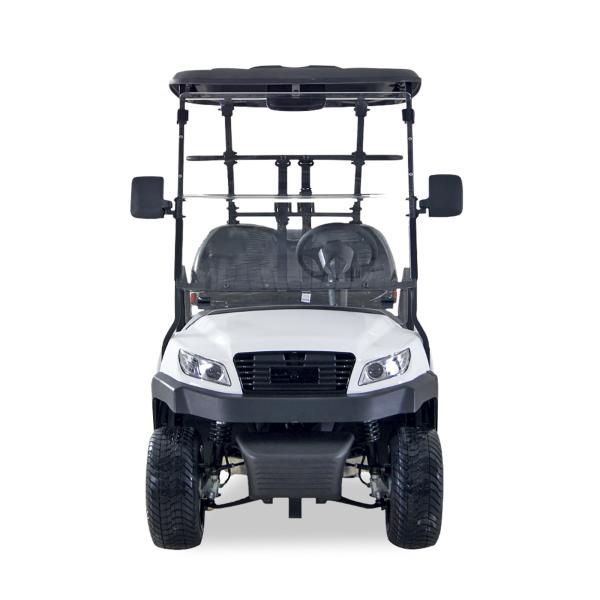

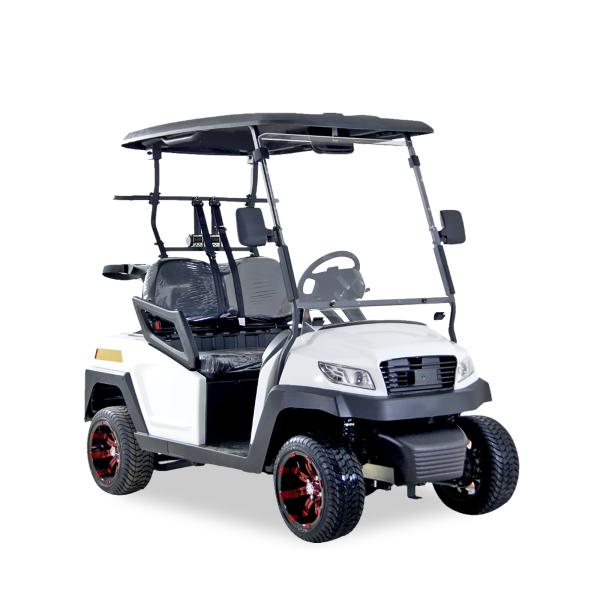

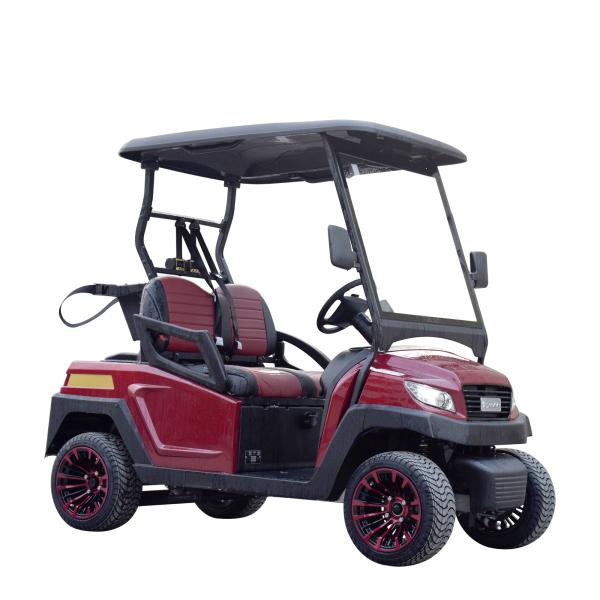

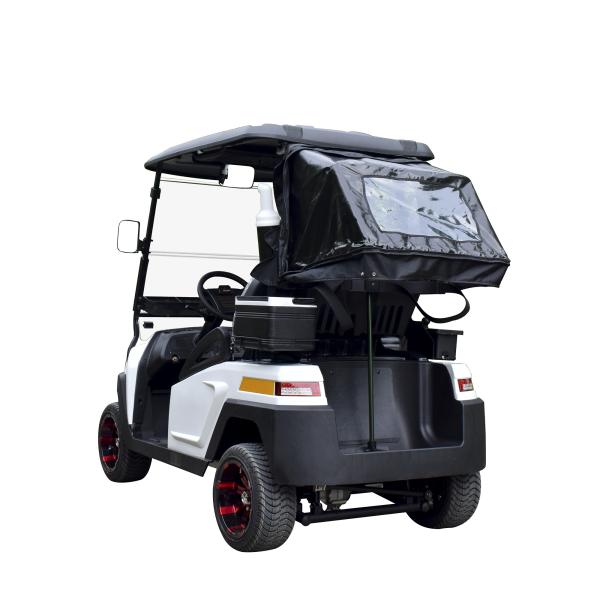

Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger
Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger
Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger
Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger
Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger
Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger
Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger
Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger
Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger
Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger
Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger
Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger
Specifications
Brand Name :
Excar
Model Number :
M1S2
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiable
Delivery Time :
20 days
Model: :
M1S2
Body: :
All Engineering Plastic
Steer System: :
Self-adjusting Rack & Pinion
Rear Suspension: :
Coil Spring Hydraulic Shock Absorber
Charger :
48V 17Ah Onboard Charger
Max.speed: :
35km/h
Seat: :
2 Seater
Front Suspension: :
Independent Spring Suspension
Range: :
80-100KM
Description

Basic specification

Item Description
Brand Excar
Model M1S2
Overall dimensions (L x W x H) 3200x1200x1800mm
Ground clearance 150mm
Wheelbase 1670mm
Front wheel tread (mm) 860mm
Rear wheel tread (mm) 970mm
Passenger Capacity 2
Climbing capacity(full load) 30%
Max. forward speed 35KM/H
Endurance mileage 80-100KM
Chassis Aluminum chassis
Net weght 400KG
Min.turning radius 2.9M

Steering & suspersion

Item Description
Steering System

Self-adjusting rack and pinion steering system,

with automatic compensation function
Brake System Rear wheel mechanical brake
Accelerator Holzer type, stepless speed change
Front suspension Macpherson independent spring suspension
Rear suspension Coil spring hydraulic shock absorber
Driving model Rear axle two stage deceleration, motor direct driving
Wheel & Tyre Aluminum wheel & 18*8.5-8 6 layers

System DC system AC system
Controller Curtis controller 1266A-5201, 275A Curtis controller 1234E-5221, 275A
Motor ADC brand Separately excited
DC motor 48V 3.7kw		 ADC brand Separately excited
AC motor 48V 5kw
Battery Trojan battery, T875,8V*6pcs Trojan battery, T875,8V*6pcs
Transaxle Axle with gear ration 1:12 Axle with gear ration 1:16
Charger High Frequency onboard charger
48V/17A regulator		 High Frequency onboard charger
48V/17A regulator

Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger

Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger

Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger

Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger

Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger

Electric Golf Buggy 2 Passenger with Intelligent Onboard Charger

FAQ


1. What's your warranty time?
All Excar golf cart sold by us are quality guaranteed.
We provide 1 year warranty to our electric vehicles from the shipping date.

2. What's the production time?
Normally for 7-15 working days.

3. What's your payment term?
T/T 30% deposit and balance paid before shipment.

4. Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.

5. How do you provide after-sales once customer bought the cart from us?
Once you purchase the cart from us,then i will provide you manual to learn it and tell you how to fix it.

6.What is your MOQ?
You can order just 1 unit.

7,What's your payment term?
T/T 30% deposit and balance paid before shipment.
