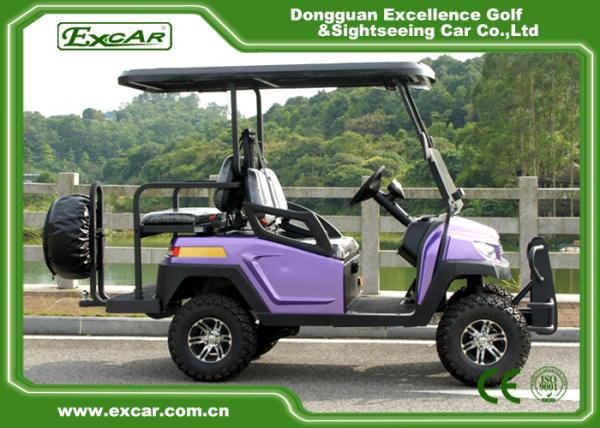

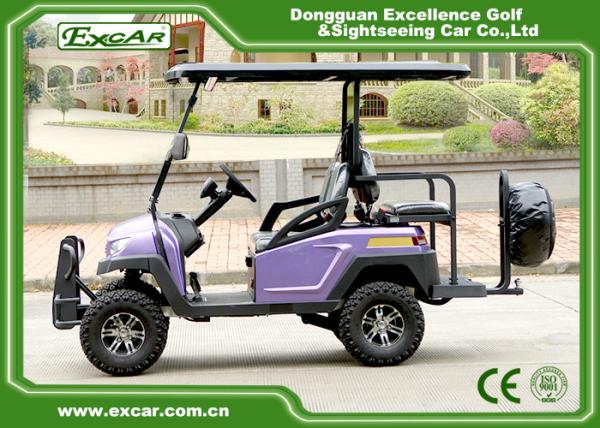

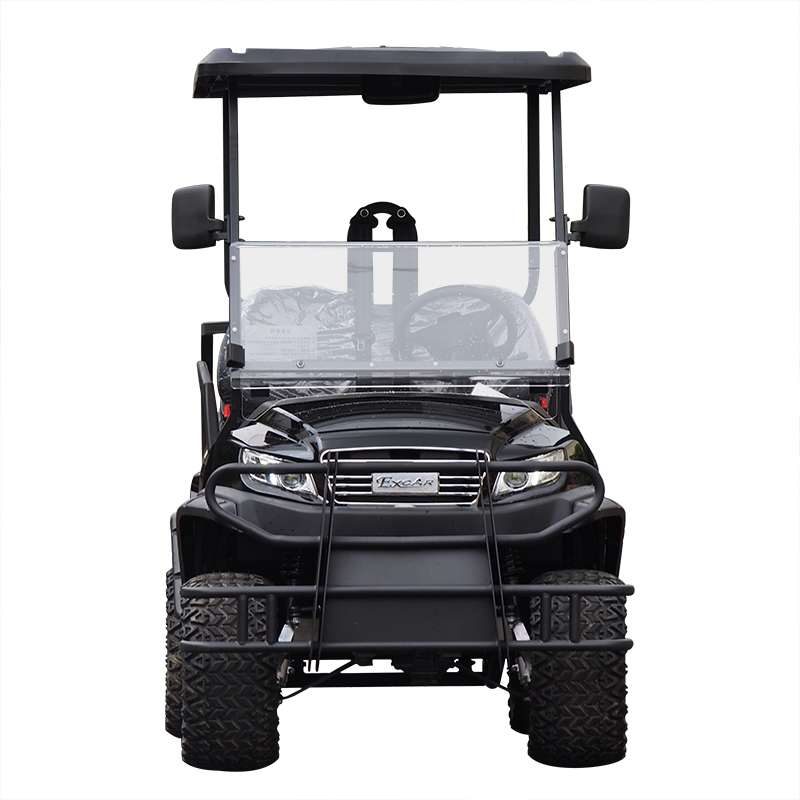

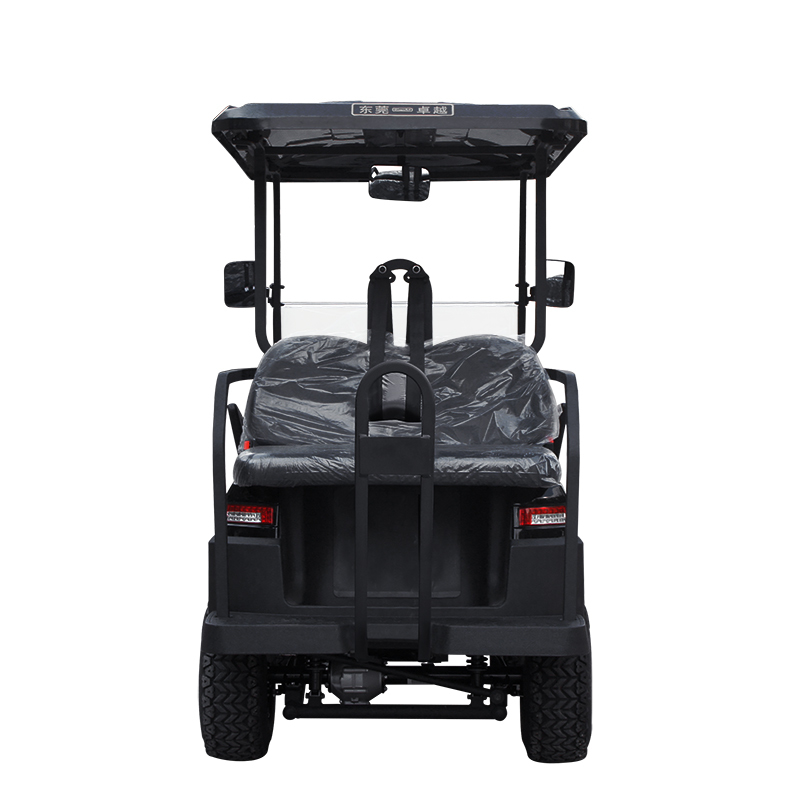

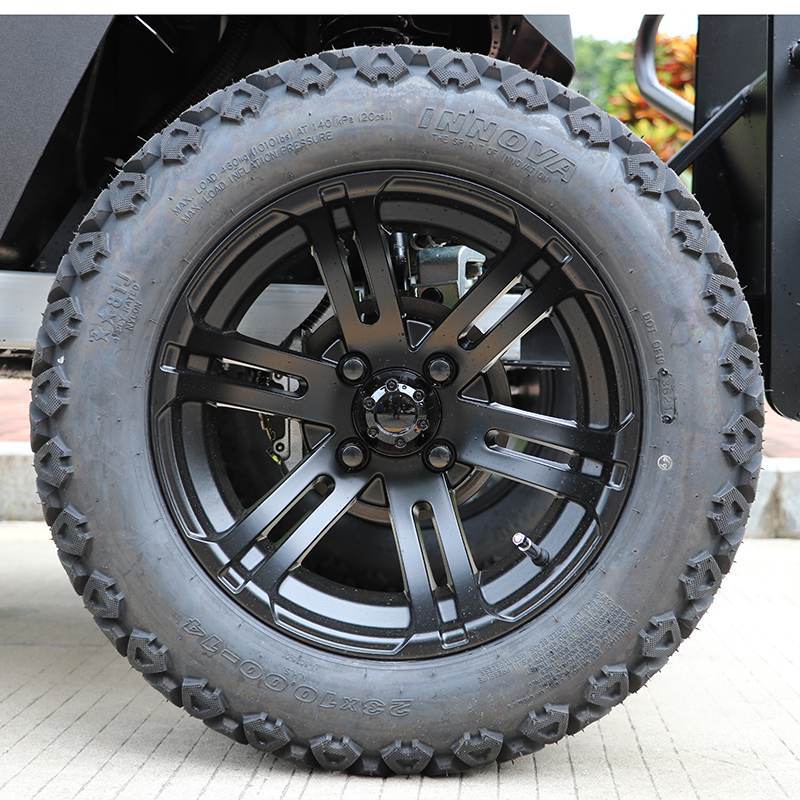

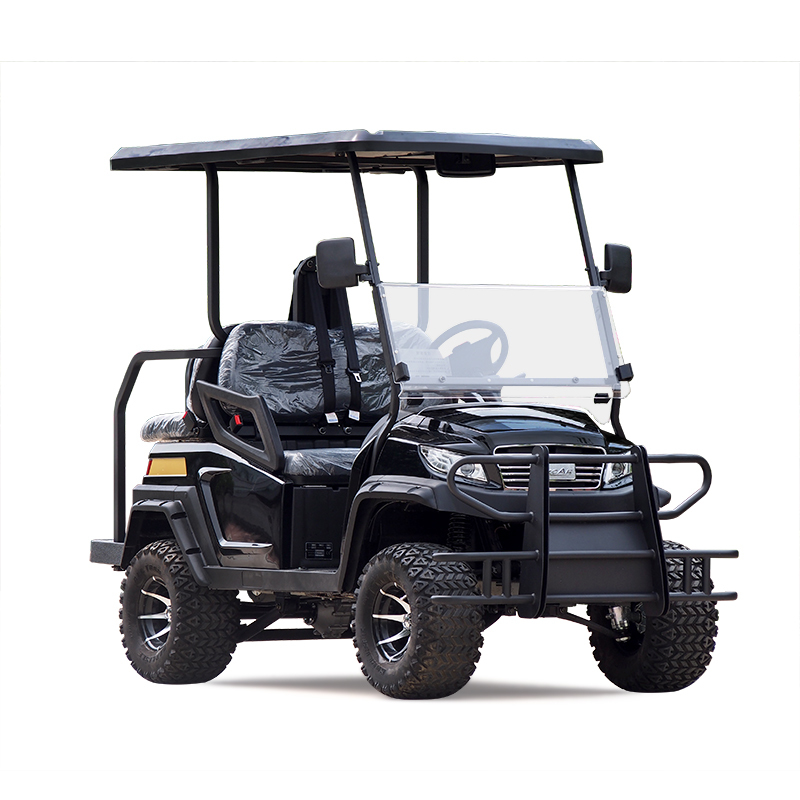

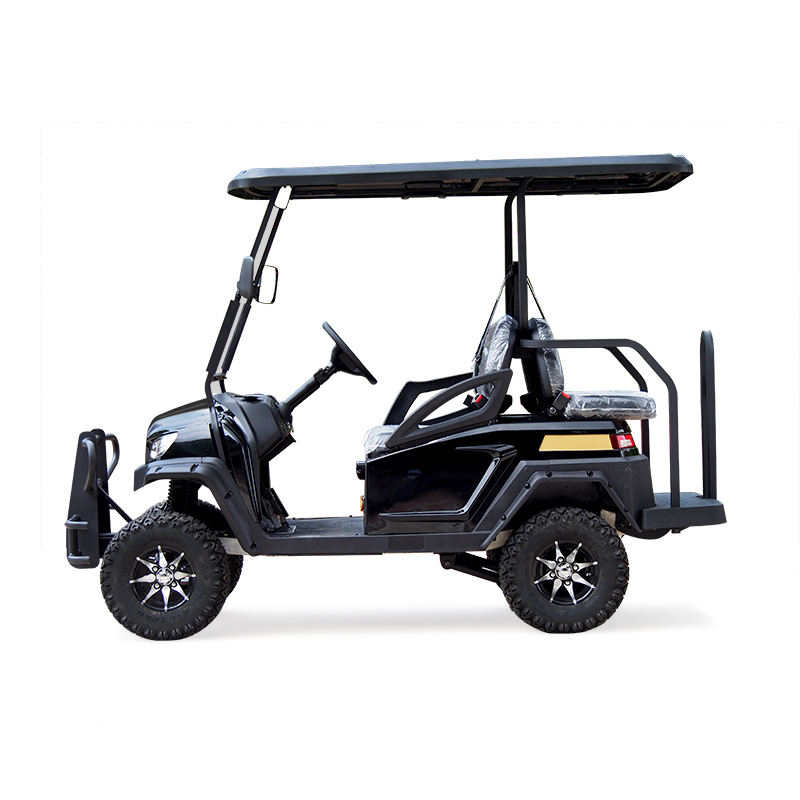

4 Wheel Electric Hunting Carts Fuel Type Hunting Buggy Car 275AH Controller
4 Wheel Electric Hunting Carts Fuel Type Hunting Buggy Car 275AH Controller
4 Wheel Electric Hunting Carts Fuel Type Hunting Buggy Car 275AH Controller
4 Wheel Electric Hunting Carts Fuel Type Hunting Buggy Car 275AH Controller
4 Wheel Electric Hunting Carts Fuel Type Hunting Buggy Car 275AH Controller
4 Wheel Electric Hunting Carts Fuel Type Hunting Buggy Car 275AH Controller
4 Wheel Electric Hunting Carts Fuel Type Hunting Buggy Car 275AH Controller
4 Wheel Electric Hunting Carts Fuel Type Hunting Buggy Car 275AH Controller
Specifications
Brand Name :
EXCAR
Model Number :
M1S2+2FF
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
D/A, D/P, Western Union, MoneyGram, L/C, T/T
Supply Ability :
200 units per month
Delivery Time :
7 days after received your deposit
Packaging Details :
LCL shipment Packing:roof move-off packing, steel frame , cartoon paper cover.
Framework :
Aluminium
Body :
All engineering plastic
Batteries :
Lead-acid wet batteries USA Trojan batteries
Controller :
USA Curtis controller 48V 275A
Front suspension :
Independent spring suspension
Rear suspension :
Coil spring hydraulic shock absorber
Motor :
ADC separately excited 48V 3.7w
Charger :
48V 17Ah onboard charger
Voltage :
48V
Max.speed :
25km/h or 45km/h
Climbing capacity :
20% or 25%
Endurance :
70-100km
Seat :
soft and supported by plastic board
Windshield :
PC material
Light system :
Front light & turing light & rear light & braking light
Description

4 Wheel Electric Hunting Carts Fuel Type Hunting Buggy Car 275AH Controller

Basic specification

Item Description
Brand Excar
Model M1S2+2FF
Overall dimensions (L x W x H) 3200x1200x1800mm
Ground clearance 150mm
Wheelbase 1670mm
Front wheel tread (mm) 860mm
Rear wheel tread (mm) 970mm

Key Components

System DC system AC system
Controller Curtis controller 1266A-5201, 275A, imported from USA directly Curtis controller 1234E-5221, 275A, imported from USA directly
Motor

ADC brand Separately excited

DC motor 48V 3.7kw

ADC brand Separately excited

AC motor 48V 3kw
Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle

with gear ration 1:12

Italian GRAZIANO axle

with gear ration 1:16
Charger

High Frequency onboard charger

48V/17A regulator

High Frequency onboard charger

48V/17A regulator

Performance

system DC system AC system
Passenger Capacity 4 4
Climbing capacity(full load) 20% 25%
Max. forward speed 23km/h 45km/h
Endurance mileage 60-80km 80-100km
Charging time 8-10 hours 8-10 hours
Max. loading weight 300kgs 300kgs
Min. turning radius 2.9m 2.9m
Max. movement after brake at speed of 20km/h ≤4m ≤4m

Electric System

Item Description
Lights

48V, LED headlight (includes turning light and position light),

LED taillights (includes brake lights and turning light),
Horn Electric horn, 48V
Reverse buzzer Electric, 48V
Combination switch Control the lights and horn
Digital Meter (optional)

Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock

Body and Frame

Item Description
Frame & Chassis Steel alloy framework
Body PP engineering plastic front and rear body cover, injected
Roof Glass fiber reinforced plastic
Windshield Organic glass (PMMA), one-piece or two pieces
Roof supports Imbedding black coating steel tube in the plastic support
Cushion Reborn sponge with artificial leather and plastic bottom cover
Backrest Reborn sponge with artificial leather and plastic cover
Armrest Plastic
Floor mat Anti-skidding rubber
Rear basket Plastic
Golf bag holder Plastic support with nylon strap
Dashboard Black plastic material, battery power indicator, ignition key on it
Beverage holders 4 pcs cups holders, 2 pcs for each side
Side trim Plastic, black
Score card holder On the steering wheel

Color Options

Body colour White Grey Sky blue
Dark blue Red Wine red
Green Dark green Yellow
Purple Champagne Black
These are the popular colours, but your customized color is available,just provide the right Panton No. color
Seat & Roof colour Black Beige White

4 Wheel Electric Hunting Carts Fuel Type Hunting Buggy Car 275AH Controller

4 Wheel Electric Hunting Carts Fuel Type Hunting Buggy Car 275AH Controller
