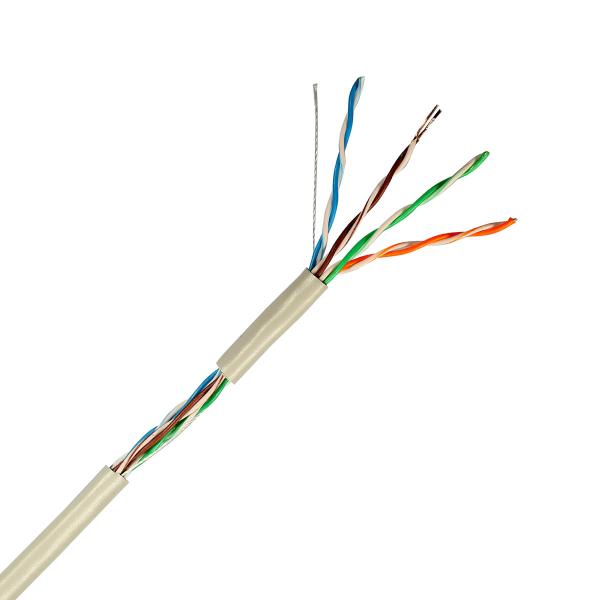

Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Specifications
Model Number :
Cat5e
Type :
Cat 5e, Data Cable LAN Cable
Place of Origin :
Zhejiang
Brand Name :
ExactCables
Number of Conductors :
1
Drain Wire :
1/0.5bc
Model :
Cat5e
Specification :
Cat5e
Inner Conductor :
Bc Copper
Individual Shield :
Al/Foil
Certification :
CE, RoHS, CCC, CPR
Overall Shield :
Tc Braid
Production Capacity :
5000000000
Cover Material :
PVC
Packaging Details :
100m/box,100m/plastic spool,200m/roll, or 305m/wooden spool,500m/drum
Port :
Ningbo
Supply Ability :
5000000000 Meter/Meters per Year
MOQ :
500 meters
Price :
$0.50/meters >=500 meters
Description
Product Description
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Specification
Frequency MHz
Impedance ohm
RL dB
Attenuation dB/100m
NextdB
Next Power Sum dB
ELFEXT
dB
PSELFEXT
dB
1.0
100±15
20.0
2.0
74.3
72.3
67.8
64.8
4.0
100±15
23.0
3.8
65.3
63.3
55.8
52.7
8.0
100±15
24.5
5.3
60.8
58.8
49.7
46.7
10.0
100±15
25.0
6.0
59.3
57.3
47.8
44.8
16.0
100±15
25.0
7.6
56.2
54.3
43.7
40.7
20.0
100±15
25.0
8.5
54.8
52.8
41.8
38.8
25.0
100±15
24.3
9.5
53.3
51.3
39.8
36.8
31.25
100±15
23.6
10.7
51.9
49.9
37.9
34.9
62.50
100±15
21.5
15.4
47.4
45.4
31.9
28.9
100.0
100±15
20.0
19.8
44.3
42.3
27.8
24.8
155.0
100±20
18.8
25.2
41.5
39.5
23.9
20.9
200.0
100±20
18.0
29.0
39.8
37.8
21.8
18.8
250.0
100±20
17.3
32.8
38.3
36.3
19.8
16.8
Packing & Delivery
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Why Choose Us
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
We,Ningbo Exact Cables & Wire Co.,Ltd is a Pioneer manufacturer with more than 12 years experience in the cable industry in China.We can professionally manufacture and supply Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Datacables, HDMI cables, Telecommunication cables, Telephone cables, Power cables ,accessory and other various of cables and wires.Our products with the brand of "Exactcables" which are approved by China CCC, the CPR, UL, CE, RoHS, ETL and REACH. The current productioncapacity is about 500,000,000 meters per year.
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Customer Photos
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Exhibition
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Product packaging
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
Certifications
Drain Wire 1/0.5bc PVC Cover Material Cat5e 4 Pair Lan Cable for Speed Data Transfer
FAQ
Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables,
telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna
dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A:Our factory is located in Ningbo City, Zhejiang Province, China, about 30 minutes away from Ningbo Lishe Airport .All our
clients, from home or abroad, are warmly welcome to visit us!
