ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures-H SERIES 5
ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures-H SERIES 5
ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures-H SERIES 5
ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures-H SERIES 5
ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures-H SERIES 5
ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures-H SERIES 5
ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures-H SERIES 5
ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures-H SERIES 5
Specifications
Brand Name :
CODT
Model Number :
EX-20~60-H
Certification :
ATEX, IECEx,ETL,API,ABS
Place of Origin :
CHINA
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 pcs per day
Delivery Time :
5-20days
Packaging Details :
carton box standard, check the specification
Material :
Copper-free aluminum
power :
20,40,60,
Item type :
Explosion- proof lights
Color temperature(cct) :
pure white, cool white ,warm white
Input voltage(v) :
AC100-277V/DC12-48V AC200-480V
Working temperature(℃) :
-40 - 60
Description

ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures

  • Features

• Working Temperature: -40°C ~ +60°C.

• High quality SMT LED and Meanwell Driver.

• Heavy-duty and high impact resistance.

• Replaceable LED board and drivers.

• Integrated junction box for driver .

• Dimmable and battery back up function available.

• Marine rating powder coated finish treatment.

• Up to 5 years warranty.

• Various installation ways for different applications.

• Polycarbonate lens to make various beam angles.

  • Applications

Oil and Gas industry

• All petroleum production and refining

• Petroleum loading and transportation

• Petroleum storage and retail

• LNG industry

• All mining operations and service

Chemical industry

• All types of paint facilities

• Chemical production and storage

Ocean, marine and aerospace field

• Ocean platform operation facilities and structure

• Aerospace clean room and production

• Ocean vessel operations

Metal treatment

• Steel and aluminum factories

• Pumping stations in any environment

• Metal smelting, foundry and fabrication

Food and alcohol industry

• Flour and fine particle production and storage

• Food and distilling production

• Alcohol industry

Other high humidity, high dust, high temperature, vapor locations

  • EXPLOSION PROTECTION

Marking ATEX

Il3 G Ex ec IIC T5/T6 Gc

Il2 D Ex tb IIIC T80/100°C Db IP66

Marking IECEx Ex ec IIC T5/T6 Gc

Ex tb IIIC T80/100°C Db IP66

Marking UL844 (North American)

Class I, Division 2, Groups A, B, C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

Marking Marine

UL1598, UL1598A

ABS

Other Rating

IP66

  • MATERIALS

• Housing: Copper-free aluminum

• Lens: PC

• Hardware: Stainless steel

• Mounting Bracket: Stainless steel

  • Catalog Number Logic: ​

ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures-H SERIES 5

  • Technical Data:
Model Wattage Operating Voltage Lumen(Im) Efficacy(Im/W) CRI CCT Emergency Time
EX-20W H2YZDA 20W AC100-277V/200-480 Vor DC12-48V 2800 140 >70 2200K-7000K 3 hours
EX-40W H2YZDA 40W 5600
EX-40W H4YZDA 40W 5600
EX-60W H4YZDA 60W 8400
  • PACKING INFORMATION
Model Quantity/Carton Length(mm) Width(mm) Height(mm) Net Weight(kg) Gross Weight(kg)
H2 2 PCS 691 400 290 4 9
H4 2 PCS 1300 400 290 5.5 14.5

ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures-H SERIES 5

  • Photometry

ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures-H SERIES 5​

  • DIMENSION

ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures-H SERIES 5

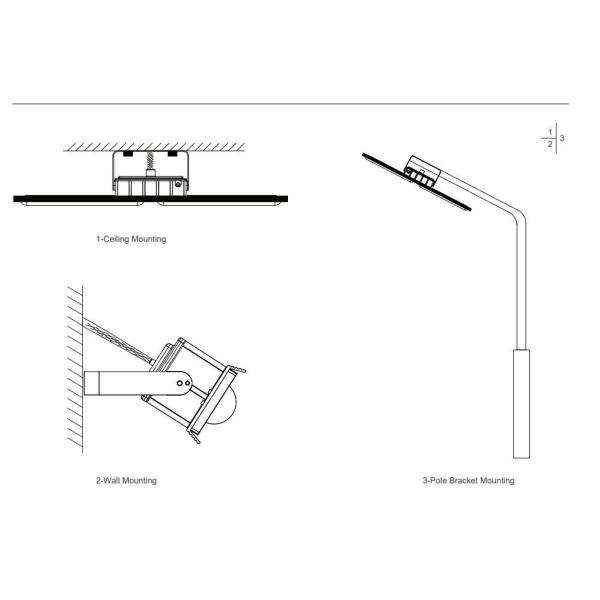

  • MOUNTING

ATEX Certified 20~60W LED Explosion Proof High Bay Fixtures-H SERIES 5

  • QA:

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production.
