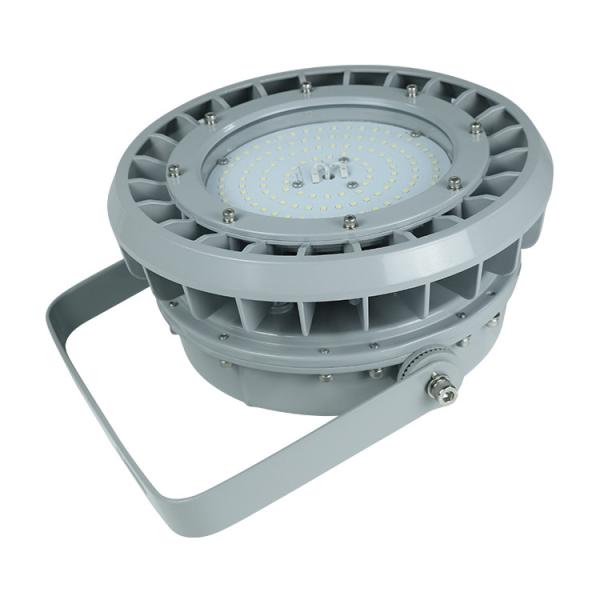

20-400W High Bay Explosion Proof LED Lights 2200K-7000K ATEX
20-400W High Bay Explosion Proof LED Lights 2200K-7000K ATEX
20-400W High Bay Explosion Proof LED Lights 2200K-7000K ATEX
20-400W High Bay Explosion Proof LED Lights 2200K-7000K ATEX
20-400W High Bay Explosion Proof LED Lights 2200K-7000K ATEX
20-400W High Bay Explosion Proof LED Lights 2200K-7000K ATEX
Specifications
Brand Name :
CODT
Model Number :
EX-20~400-B
Certification :
ATEX, IECEx,ETL,API,ABS
Place of Origin :
CHINA
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 pcs per day
Delivery Time :
5-20days
Packaging Details :
carton box standard, check the specification
Material :
Copper-free aluminum
power :
20,40,60,80,100,120,150,200,250,300,350,400
Item type :
Explosion- proof lights
Color temperature(cct) :
pure white, cool white ,warm white
Ip rating :
66
Input voltage(v) :
AC100-277V/DC12-48V AC200-480V
Description

ATEX Certified 20~400W LED Explosion Proof High Bay Fixtures

Marking

Marking ATEX

II 2 G Ex mb eb IIC T4 Gb

II 2 D Ex tb IIIC T120°C Db IP66

II 3 G Ex ec IIC T3 Gc

II 2 D Ex tb IIIC T85°C Db IP66

Marking IECEx

Ex mb eb IIC T4 Gb

Ex tb IIIC T120°C Db IP66

Ex ec IIC T3 Gc

Ex tb IIIC T85°C Db IP66

Marking UL844 (North American)

Class I, Division 2, Groups A, B, C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

Marine Marking

UL1598, UL1598A

ABS

Other Rating

I P 6 6

FEATURES

• Working Temperature: -40°C ~ +55°C.

• High quality SMT LED and Meanwell Driver.

• Heavy-duty and high impact resistance.

• Replaceable LED board and drivers.

• Integrated junction box for driver .

• Dimmable and battery back up function available.

• Marine rating powder coated finish treatment.

• Up to 5 years warranty .

• Various installation ways for different applications.

• Glass lens or polycarbonate lens to make different beam angles.

20-400W High Bay Explosion Proof LED Lights 2200K-7000K ATEX

SPECIFICATION

Product Number Wattage ColorTemperature Voltage Lumens CRI Emergency Time
　
EX-20W B2YZDA 20W 2200K-7000K AC100-277V/DC12-48V 2800 >70 3 Hours
EX-40W B2YZDA 40W 5600
　
EX-60W BYZDA 60W 2200K-7000K AC100-277V/DC12-48V/AC200-480V 8400 >70 3 Hours
EX-80W BYZDA 80W 11200
　
EX-100W B3YZDA 100W 2200K-7000K AC100-277V/DC12-48V/AC200-480V 14000 >70 3 Hours
EX-120W B3YZDA 120W 16800
EX-150W B3YZDA 150W 21000
EX-200W B3YZDA 200W 28000
　
EX-250W B4YZDA 250W 2200K-7000K AC100-277V/DC12-48V/AC200-480V 35000 >70 3 Hours
EX-300W B4YZDA 300W 42000
EX-350W B4YZDA 350W 49000
EX-400W B4YZDA 400W 56000

“B,B2,B3,B4”=Product code.“Y”=D or N D:Dimmable or N: non-dimmable “Z”=CCT,

from 2200-7000k, 22 for 2200k...70 for 7000K.

“D”=Beam angle, D40 for 40°, D60 for 60°, D90 for 90°, D120 for 120°

“A”=glass type. blank for flat glass, C for spherical glass.

PACKING

Model Quantity/Carton Length(cm) Width(cm) Height(cm) Net weight(kg) Gross weight(kg)
B2 1 36cm 35.4cm 26cm 3.5kg 5kg
B 1 38.6cm 33cm 22cm 4.4kg 5.5kg
B3 1 48cm 46cm 26.5cm 8.2kg 10.5kg
B4 1 53cm 53cm 30cm 18.8kg 21.5kg

Candela Distribution
