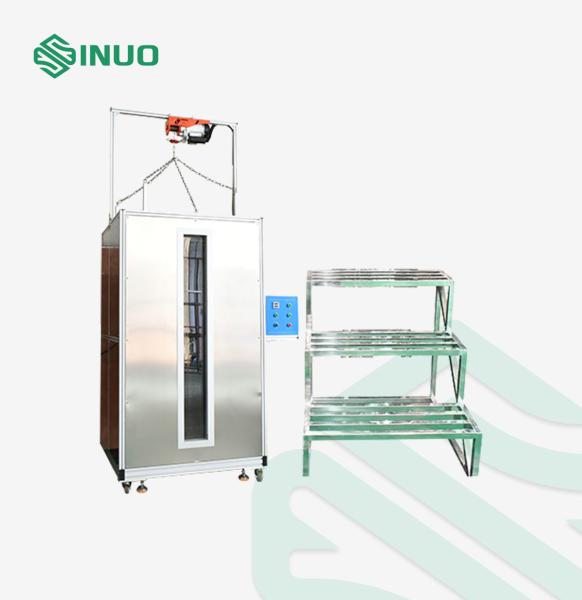

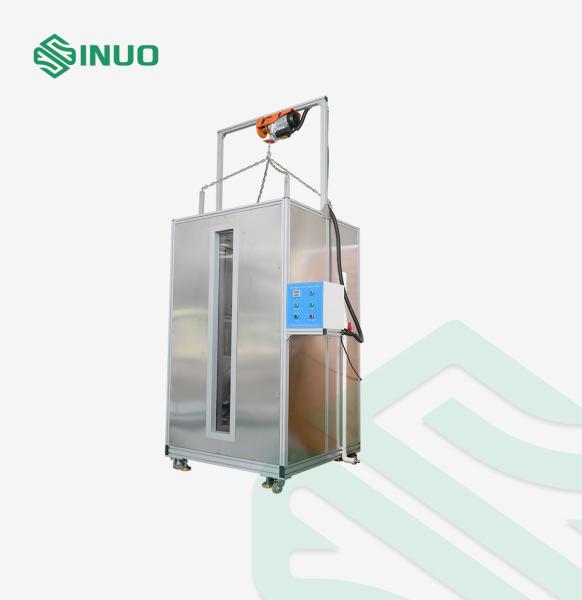

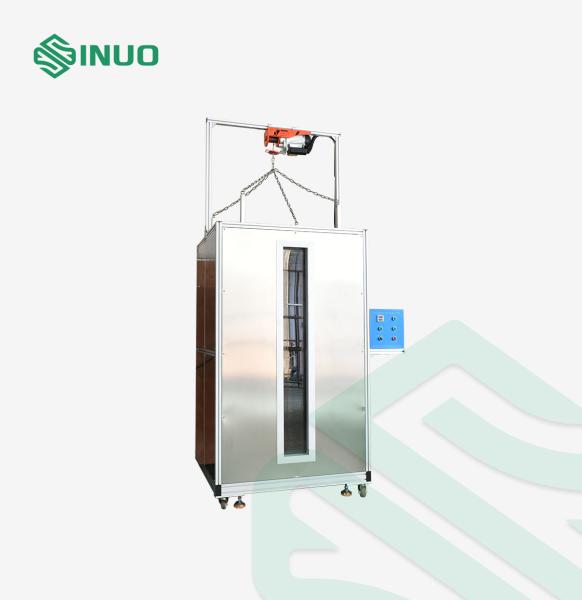

IPX7 Ingress Protection Test System IEC 60529 IPX7 Test Chamber
IPX7 Ingress Protection Test System IEC 60529 IPX7 Test Chamber
IPX7 Ingress Protection Test System IEC 60529 IPX7 Test Chamber
IPX7 Ingress Protection Test System IEC 60529 IPX7 Test Chamber
IPX7 Ingress Protection Test System IEC 60529 IPX7 Test Chamber
IPX7 Ingress Protection Test System IEC 60529 IPX7 Test Chamber
IPX7 Ingress Protection Test System IEC 60529 IPX7 Test Chamber
IPX7 Ingress Protection Test System IEC 60529 IPX7 Test Chamber
Specifications
Brand Name :
Sinuo
Model Number :
SN4410
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
30 sets/month
Delivery Time :
30 days
Packaging Details :
Plywood Case
Control & Operation :
Push-button operation
Applied Standard :
IEC 60529
Water Depth :
1200mm or customized
Inner Size :
Can be customized
Lifting Control :
Driven by electric hoist
Basket Size :
Can be customized
Tank Material :
Stainless steel
Test Duration :
30 min
Description

IPX7 Ingress Protection Test System IEC 60529 IPX7 Test Chamber

Complied Standards & Clauses

IEC 60529 degree of protection provided by enclosures (IP Code) of the IPX7, IEC60884-1, IEC60335-1, IEC60598-1.

Equipment Overview

It is used for the testing of IPX7. Mainly used to test the product waterproof performance in the soaking environment. Through the test, check whether the product waterproof level meet the requirements, for product design, R&D and factory inspection use.

Technical Parameters

Chamber external size Approximately W 1080* D 1080*H 2300mm (including casters)
Chamber inner size Length 1000* W 1000* H1800mm
Max. test water depth 1.8m
Observation window Tempered glass (thickness: 12mm)
Observation window width 200mm
Water level adjustment method Water inlet / drain valve, manual adjustment
Water level display Scale (accuracy 1mm)
External chamber material Stainless steel plates + Aluminum profile frame
Inner chamber material 2.0mm thickness stainless steel

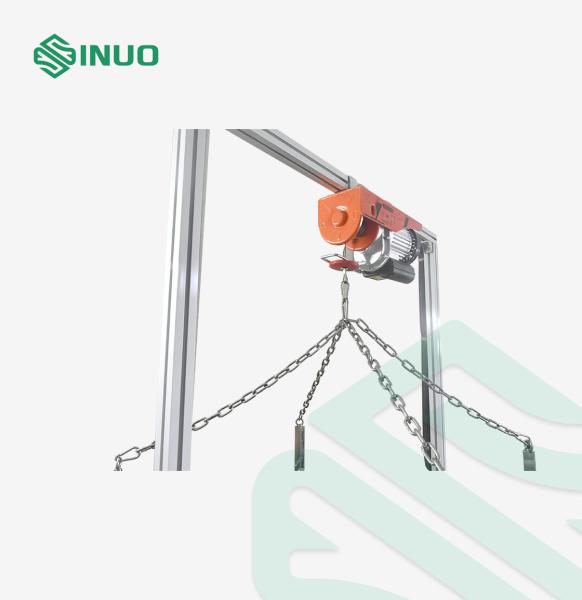

Electric lifting basket Made of stainless steel, controlled by electric hoist
Control method Buttons (non-PLC)
Test time 0.01 second-99.99hours can be preset
Immersion depth requirements

The lowest point of enclosure with a height less than 850 mm is located 1000mm below the surface of the water

The highest point of enclosure with a height equal to or greater than 850mm is located 150mm below the surface of the water
Test content IPX7
Power supply AC 220V,50Hz, 1KW

Details

IPX7 Ingress Protection Test System IEC 60529 IPX7 Test ChamberIPX7 Ingress Protection Test System IEC 60529 IPX7 Test Chamber
