IPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for Electronics
IPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for Electronics
IPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for Electronics
IPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for Electronics
IPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for Electronics
IPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for Electronics
IPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for Electronics
IPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for Electronics
Specifications
Brand Name :
Sinuo
Model Number :
SN442
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Flow range :
0.667-4.167 L/min
Drip area :
1000*1000mm
Test flow :
1~1.5mm/min(IPX1), 3~3.5mm/min(IPX2)
Water dripping height :
200mm
Equipment body material :
Industrial aluminum alloy
Test time :
1-9999 seconds
Description


IPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for Electronics

Complied Standards & Clauses

It is designed and manufactured in accordance with the standard requirement of IEC60529 IPX1 and IPX2, IEC60335-1 clause 15.etc.


Product Overview

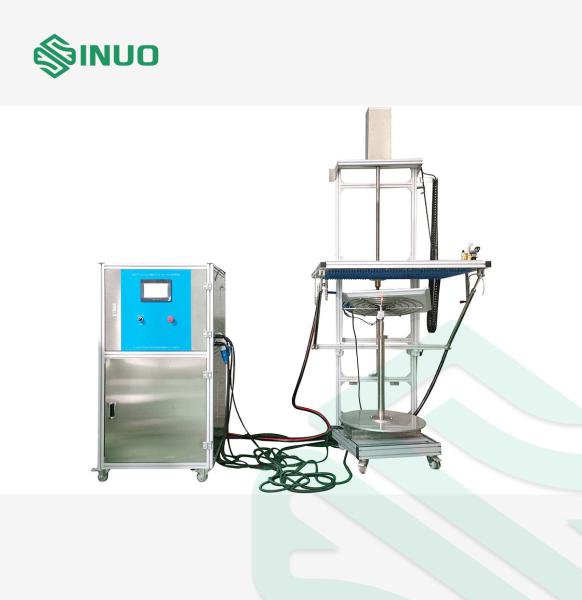

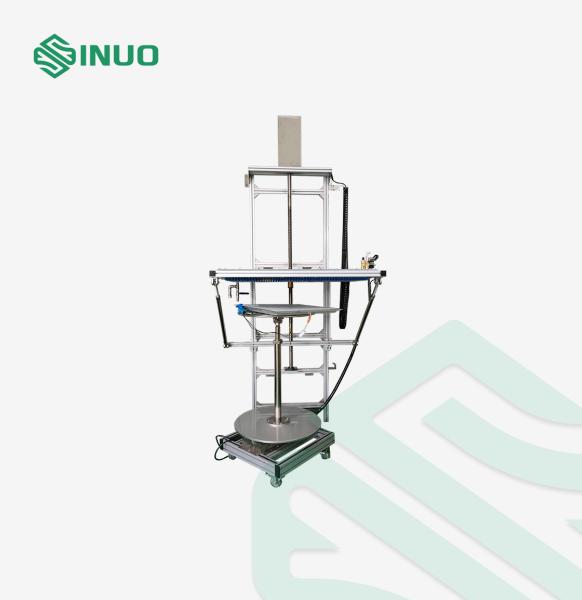

This test device is to verify Protection against Vertically Falling Water Drops. It is designed and manufactured in accordance with the standard requirement of IEC60529 IPX1 and IPX2, IEC60335-1 clause 15.etc.

The rise and fall of the drip box is controlled by the motor. The electrical control cabinet is with PLC and touch screen.

1. Stainless steel fine filter for dirt filtration.

2. Adopts compressed air (compressed air should be prepared by user) to blow out the water in the needles, to prevent water reactive substances and atmospheric blocking needles.

3. Stainless steel general medical needle nozzles, easy to buy, not easy to rust.

4. Needle nozzles and needle nozzle seats using taper connection, can be easily replaced without the tool, individual damage to the needle nozzle can be easily replaced quickly.

Technical Parameters

Item Specifications
Power supply of this equipment Three phase AC380V, 50Hz, 4KW
Power supply for test sample Single phase AC220V, 16A
LWGYD-4 flow rate Sensors Flow range: 0.667-4.167 L/min, pulse output
Small water pump Brand: South, model no.: CHL2-40, 380VAC, 50Hz, 0.55kw Protection class: IP55 Insulation class: F
Waterproof test range IPX1 test, IPX2 test, IPX1/IPX2 custom

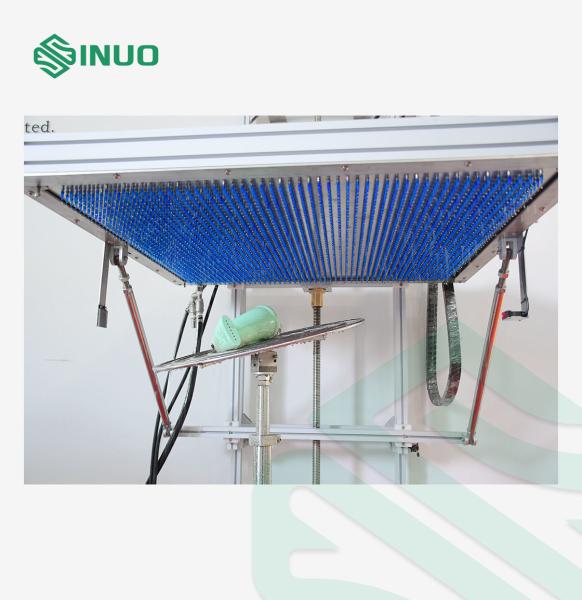

IPX1-IPX2 Drip area: 1000*1000mm
Diameter of drip hole: 0.4mm
Distance between each two neighbor holes:20mm
Test flow:1~1.5mm/min(IPX1), 3~3.5mm/min(IPX2)
Test time Set according to the test standard (range 1-9999 seconds), the unit is: second
Water dripping height 200mm (automatically controlled by the test equipment)
Water Drainage Automatically emptying the tank water after the test is completed, should connected with an air source (the 0.6MPa compressed air source should be prepared by user)
Equipment body material Industrial aluminum alloy
Installation method Wall Mount
Turntable 1-5r/ min, can be set

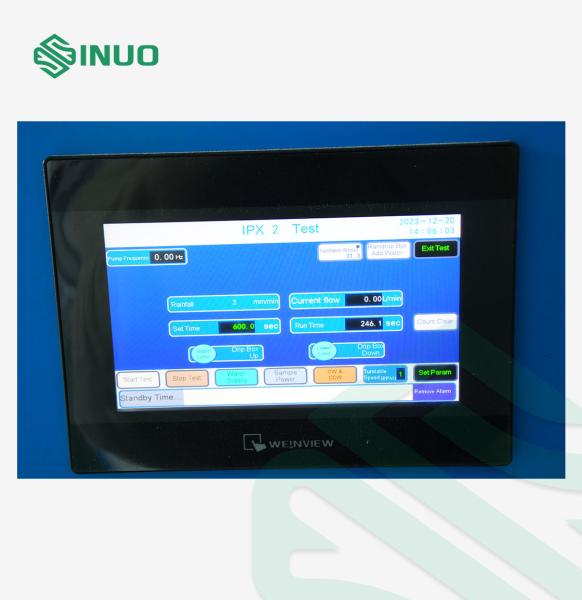

Control PLC & 7” touch screen

Details

IPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for ElectronicsIPX1 IPX2 Rain Test Vertical Rain Drip Proof Test System for Electronics
