Temperature Humidity Test Chamber Environmental Test Chamber -70°C to +150°C
Temperature Humidity Test Chamber Environmental Test Chamber -70°C to +150°C
Temperature Humidity Test Chamber Environmental Test Chamber -70°C to +150°C
Temperature Humidity Test Chamber Environmental Test Chamber -70°C to +150°C
Temperature Humidity Test Chamber Environmental Test Chamber -70°C to +150°C
Temperature Humidity Test Chamber Environmental Test Chamber -70°C to +150°C
Temperature Humidity Test Chamber Environmental Test Chamber -70°C to +150°C
Temperature Humidity Test Chamber Environmental Test Chamber -70°C to +150°C
Temperature Humidity Test Chamber Environmental Test Chamber -70°C to +150°C
Temperature Humidity Test Chamber Environmental Test Chamber -70°C to +150°C
Specifications
Brand Name :
Sinuo
Model Number :
SN881-1000L
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 days
Packaging Details :
Export packing
Temperature Range :
-70 °C ~+150°C
Humidity Range :
20% ~ 98% RH
Temperature deviation :
≤±2.0℃
Humidity deviation :
≤±3%
Internal dimensions :
1000 × 1000 × 1000 mm
External dimensions :
1280*2150*2050 mm
Heating time :
≥ 2–3°C/min (no load)
Cooling time :
≥ 1°C/min (no load)
Description



Humidity and Heat Test Equipment High and Low Temperature Alternating Test Chamber


Complied Standards & Clauses


IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”


Product Overview


The Temperature and Humidity Test Chamber is designed to simulate various environmental conditions such as cold, heat, humidity, and dryness, ensuring reliable performance testing for products under extreme climates. It is widely used for electronic components, electrical appliances, plastic materials, and other industrial products, helping manufacturers evaluate product durability and reliability during storage and transportation.

This chamber provides precise temperature and humidity control, enabling users to perform stability, aging, and cyclic tests with high accuracy. Built with advanced insulation and intelligent control systems, it ensures consistent and repeatable test results.

The equipment fully complies with international standards including IEC60068-2-1 (Cold Test), IEC60068-2-2 (Dry Heat Test), IEC60068-2-78 (Damp Heat, Steady State), and IEC60068-2-30 (Damp Heat, Cyclic Test) — making it an ideal solution for environmental reliability testing in R&D and quality assurance laboratories.


Technical Parameters


Technical Parameters
Control & Operation PLC and touch screen intelligent control system

Chamber Size


 Inner Size External Size
1000*1000*1000 mm 1280*2150*2050 mm
Temperature Range -70 °C ~+150°C
Humidity Range 20%～98%RH
Temperature fluctuation ±0.5℃
Humidity fluctuation ≤2.5%
Temperature deviation ≤±2.0℃
Humidity Deviation ≤±3%
Heating Rate ≧2-3°C/min
Cooling Rate ≧1°C/min, average no load
Load condition None
Working noise

A sound level≤70dB(A)

(Measured in a soundproof room with an ambient temperature of 25°C and low echo. Using A weighting, test the average of 9 points. Each test point is 1 meter away from the noise source horizontally and 1 meter above the ground.)

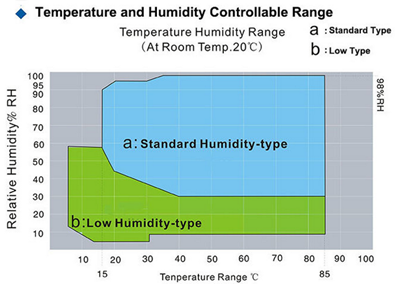

Temperature and Humidity Range Scheme
Structural features
Insulation enclosure structure

1. Outer wall material: A3 board spraying.

2. Inner wall material: brushed stainless steel plate SUS﹟304.

3. Chamber thermal insulation material: 100mm high temperature resistant rigid polyurethane foam.

4. Chamber door insulation material: 100mm high temperature resistant rigid polyurethane foam.
Bottom structure strength The weight capacity of the track at the bottom of the test chamber: ≤100Kg/m² (load)
Air conditioning channel

1. Stainless steel long-axis centrifugal fans: 2 sets/90W.

2. Fan, heater, evaporator (also dehumidifier), drainage device, pressure balance port, adjustable air deflector, temperature sensor
Standard configuration of test chamber

1. Observation window: 400x600x40mm 3-layer vacuum tempered glass

2. Flat embedded handles

3. Door hinges: SUS #304 imported hinges

4. Energy-saving lamp inside the chamber

5. Lead hole: φ50mm 1 piece
Chamber door

1. The single-piece door opens outwards, with the hinge on the left and the handle on the right (when facing the front of the box).

2. Equipped with a safety door locking mechanism (the door can be opened in the test room), the door is equipped with electric heat to prevent condensation, and the visible range of the insulating glass observation window (W400×H600mm). The door frame is equipped with an anti-condensation electric heating device.
Control panel Controller 7-inch display screen, temperature (humidity) control display screen, operating indicator light, and lighting button.
Mechanical room Refrigeration unit, compressor water tray, pressure relief device, heating device
Power distribution cabinet Distribution board, cooling fan, main power switch, transformer, intermediate relay, time relay, solid-state relay, AC contactor, circuit breaker
Heater

1. Fin-type radiator-shaped stainless steel electric heater

2. Heating control method: SSR (Solid State Relay) non-contact equal period pulse width modulation

3. Heating power: approximately 3KW
Power cable hole Located on the back of the chamber
Cooling system
Operation mode Air-cooled mechanical compression single-stage refrigeration mode
Heating and cooling devices

1. Hitachi or Emerson low-temperature and low-noise scroll compressor (air-cooled heat dissipation method).

2. Cooling method: air cooling
Heat and cold exchange device Single-stage refrigeration system, Emerson low-temperature and low-noise scroll compressor imported from the United States. Adopting ultra-high-efficiency SWEP cold coal heat and cold exchange design [made in Sweden (sus#316)], it is more efficient than the traditional internal spiral type.
Heating load adjustment

1. The automatic adjustment of the cold coal flow rate device is adopted to effectively take away the heating load of the product to be tested, which is synchronized with German/Japanese technology.

2. Compared with traditional designs, the control stability and reproducibility are higher, and it achieves ultra-high performance in terms of power saving and energy saving.
Refrigeration compressor

Hitachi or Emerson low temperature and low noise scroll compressor
High efficiency components

1. The condenser and evaporator adopt AC&R double spoiler type aluminum fin device.

2. The throttling devices adopt imported famous brand refrigeration accessories.
Expansion system Capacity controlled refrigeration system
Evaporative condenser All copper tube heat exchanger


Details


Temperature Humidity Test Chamber Environmental Test Chamber -70°C to +150°CTemperature Humidity Test Chamber Environmental Test Chamber -70°C to +150°C
