EV Battery Acceleration Test Equipment Hydraulic Lift Shock Test System
EV Battery Acceleration Test Equipment Hydraulic Lift Shock Test System
EV Battery Acceleration Test Equipment Hydraulic Lift Shock Test System
EV Battery Acceleration Test Equipment Hydraulic Lift Shock Test System
EV Battery Acceleration Test Equipment Hydraulic Lift Shock Test System
EV Battery Acceleration Test Equipment Hydraulic Lift Shock Test System
EV Battery Acceleration Test Equipment Hydraulic Lift Shock Test System
EV Battery Acceleration Test Equipment Hydraulic Lift Shock Test System
Specifications
Brand Name :
Sinuo
Model Number :
SN558-HSKT300
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
Work Platform :
800 × 800 mm
Half-sine pulse duration :
2.5—30ms
Half-sine peak acceleration :
15—350 G
Sampling frequency :
192KHz
Lifting method :
Hydraulic lift
Total equipment :
2000 kg
Device size :
1600× 1300× 2250mm
Description



Acceleration Shock Test System Hydraulic Lift Mechanical Shock Test Bench


Complied Standards & Clauses


Conforms to MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, and MIL-STD-883E, etc.



Product Overview


This device is primarily suitable for shock testing applications in electronics, aerospace, shipbuilding, military, automotive, and transportation. By selecting different waveform generators, it can perform shock tests using half-sine, post-peak sawtooth, or square waves.

Installation and Environmental Requirements

  1. Ambient Temperature: 5℃ ~ +28℃ (average temperature within 24 hours ≤ 28℃)

  2. Relative Humidity: ≤ 85% RH

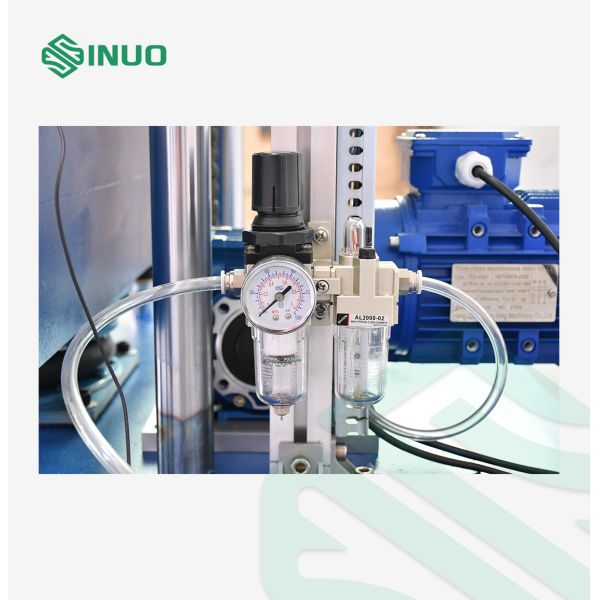

  3. Air Supply: 0.5 – 0.8 MPa

  4. Power Supply: Three-phase, five-wire system

  5. Voltage Input: AC 380V

  6. Frequency Fluctuation Range: (50 ± 0.5) Hz

  7. Grounding Resistance: PGND cable resistance < 4 Ω

  8. Installation Requirement:
    The user shall provide an air or power switch of appropriate capacity at the installation site. This switch must be dedicated exclusively to this equipment.


Technical Parameters


Working platform 800 × 800 mm
Working platform Material High-strength imported high-quality aluminum alloy
Maximum load 300kg
Half-sine peak acceleration 15—350 G
Half-sine pulse duration 2.5—30ms
Lifting method Hydraulic lift
Equipment size 1600× 1300× 2250mm
Equipment weight 2000 kg
Measuring System
Input channel 2 channels
Sampling frequency 192KHz
Input form Voltage, Electric Charge
Voltage range -10v--+10v
Coupling method AC, DC, ICP
Shock waveform Half Sine
Communication interface USB2.0
Support standard National standard, national military standard, U.S. military standard, user-defined standard
Operating system Microsoft Windows7/10
System Acceleration Sensor
Brand YMC
Output method Charge type
Sensitivity 3.93pC/g
Frequency range 0.5—12KHz
Acceleration range ±2500G
Working environment -40~+160℃
Other Instructions
Power supply 380V±10％

Details


EV Battery Acceleration Test Equipment Hydraulic Lift Shock Test SystemEV Battery Acceleration Test Equipment Hydraulic Lift Shock Test System
