Specifications
Brand Name :
Sinuo
Model Number :
SN885-1000L
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Export packing
External chamber material (W*H*D) :
1250*2150*1980 mm(W*H*D)
Inner chamber material (W*H*D) :
1000*1000*1000 mm(W*H*D)
Humidity Range :
20%～98%RH
Temperature Range :
-30 °C ~+100°C
Temperature deviation :
≤±2.0℃
Temperature fluctuation :
±0.5℃
Humidity fluctuation :
≤2.5%
Humidity Deviation :
≤±3%
Description


-30℃ Programmable Temperature and Humidity Chamber Environmental Test Chamber

Complied Standards & Clauses

It conforms to the following standards:

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”

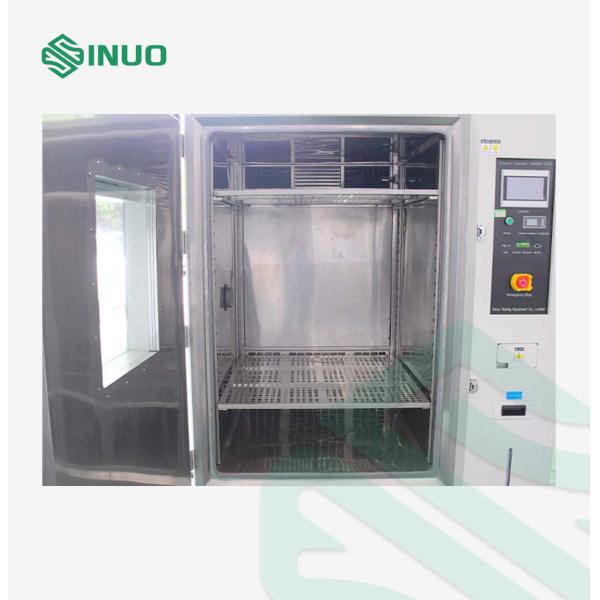

Product Overview

SN885-1000L(-30℃) Temperature and Humidity Chamber is a high-performance environmental testing solution designed to simulate extreme temperature and humidity conditions for large-scale products or components. With a wide range of -30°C to +100°C and humidity from 20% to 98% RH, it enables accurate and programmable testing of product reliability under harsh climate scenarios.

This chamber is widely used in electronics, automotive, aerospace, and materials industries for temperature cycling, humidity exposure, and storage/transport simulations. Its robust structure, intuitive touchscreen control system, and compliance with international standards such as IEC 60068 series make it an ideal choice for demanding R&D and quality assurance environments.

Engineered for stability, efficiency, and safety, this system ensures repeatable and precise test results — even under high load or extended testing cycles.

Technical Parameters

Item

Specification
Model SN885-1000L(-30℃)
Inner Dimensions (W×H×D) 1000 × 1000 × 1000 mm
External Dimensions (W×H×D) 1250 × 2150 × 1980 mm
Temperature Range -30°C ~ +100°C
Humidity Range 20% ~ 98% RH
Temperature Fluctuation ±0.5°C
Humidity Fluctuation ≤2.5% RH
Temperature Deviation ≤±2.0°C
Humidity Deviation ≤±3% RH
Heating Rate ≥6°C/min (from -30°C to +100°C, no load)
Cooling Rate ≥6°C/min (from +100°C to -30°C, no load)
Noise Level ≤70dB(A)
Controller 7-inch color touchscreen (programmable)
Refrigeration System Water-cooled, Emerson scroll compressor ×2
Insulation Material 100mm high-temp resistant rigid polyurethane foam
Observation Window 400 × 600 mm, triple-layer vacuum tempered glass
Humidity & Temp Sensors PT100 Level A Accuracy
Heating Power 8KW stainless steel fin heater
Power Supply AC380V, 50Hz, 3-phase 4-wire + PE
Maximum Power ≈ 20kW
Standards Compliance IEC 60068-2-1 / -2 / -30 / -78
Safety Protection Over-temp, over-current, leakage, fan overload etc.
