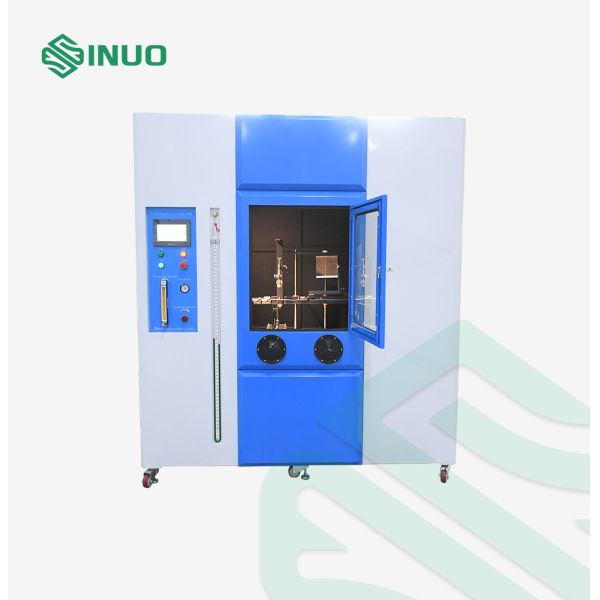

UL1581 Compliant Flammability Test Chamber with Adjustable Flame Angles and 1100°C Temperature Range for Flame Testing Equipment
UL1581 Compliant Flammability Test Chamber with Adjustable Flame Angles and 1100°C Temperature Range for Flame Testing Equipment
UL1581 Compliant Flammability Test Chamber with Adjustable Flame Angles and 1100°C Temperature Range for Flame Testing Equipment
UL1581 Compliant Flammability Test Chamber with Adjustable Flame Angles and 1100°C Temperature Range for Flame Testing Equipment
UL1581 Compliant Flammability Test Chamber with Adjustable Flame Angles and 1100°C Temperature Range for Flame Testing Equipment
UL1581 Compliant Flammability Test Chamber with Adjustable Flame Angles and 1100°C Temperature Range for Flame Testing Equipment
UL1581 Compliant Flammability Test Chamber with Adjustable Flame Angles and 1100°C Temperature Range for Flame Testing Equipment
UL1581 Compliant Flammability Test Chamber with Adjustable Flame Angles and 1100°C Temperature Range for Flame Testing Equipment
UL1581 Compliant Flammability Test Chamber with Adjustable Flame Angles and 1100°C Temperature Range for Flame Testing Equipment
UL1581 Compliant Flammability Test Chamber with Adjustable Flame Angles and 1100°C Temperature Range for Flame Testing Equipment
Specifications
Brand Name :
Sinuo
Model Number :
SN7711
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
1 sets/month
Delivery Time :
45 days
Packaging Details :
Other
Equipment weight :
350kg
Equipment size :
1.7*1.3*2.4m(W*D*H)
Gas Category :
Methane
Test Space :
4m³
Burning Angles :
0°, 20°, 45° adjustable
Burner diameter :
9.5mm ± 0.5mm
Temperature Measurement Range :
MAX 1100°C
Temperature Measurement Distance :
25±1mm/55±1mm
Description


UL94 Flammability Test Chamber Flame Testing for Wire & Cable Materials


Complied Standards & Clauses

This flammability test chamber meets the requirements of the UL1581 and UL94 flame tests.

Equipment Overview


Designed to meet the stringent requirements of UL1581 and UL94, the SN7711 Flammability Test Chamber from Sinuo Testing Equipment is a reliable solution for evaluating flame resistance in wires, cables, and cords. It simulates flame exposure in early fire stages to assess fire hazards effectively.

Key Features:

  • Compliant with UL1581 VW-1 & FT2 test standards

  • Dual flame power: 225W & 500W

  • Automatic ignition system for enhanced safety

  • Mitsubishi PLC control with 7” touchscreen interface

  • Durable stainless steel chamber with large observation window

  • High-accuracy Omega K-type thermocouple

  • Adjustable flame angles: 0°, 20°, 45°

Technical Parameters

Applicable StandardsUL1581, UL94
Overall Dimensions (W×D×H)1700 × 1300 × 2400 mm
WeightApproximately 350 kg
Chamber DesignStainless steel with matte black background and exhaust ventilation
Internal Test Volume4 m³
Gas TypeMethane
Flames225W and 500W
Typical Flow Rates (Reference)500W: 965±30 ml/min; 225W: 405±10 ml/min, etc.
Flame Height Range20mm to 125mm ±1mm, adjustable
Temperature RangeUp to 1100°C
Power SupplyAC 220V / 50Hz (customizable for 230V / 50Hz regions)
Control SystemMitsubishi PLC with 7-inch VEINVIEW touchscreen interface
Ignition MethodFully automatic ignition for operator safety
Burning Angle OptionsAdjustable to 0°, 20°, or 45°
Burner DimensionsØ9.5mm ± 0.5mm, Length: 100mm, compliant with ASTM 5025
Timing FunctionProgrammable timer up to 9999 x 0.1s
ThermocoupleU.S. Omega K-type, Ø0.5mm armored stainless steel
Temperature Sensing Distance25 ±1mm and 55 ±1mm
