IEC 61851-23 Cable Anchorage Test System EVSE Cable Pull & Torque Test Equipment
IEC 61851-23 Cable Anchorage Test System EVSE Cable Pull & Torque Test Equipment
IEC 61851-23 Cable Anchorage Test System EVSE Cable Pull & Torque Test Equipment
IEC 61851-23 Cable Anchorage Test System EVSE Cable Pull & Torque Test Equipment
IEC 61851-23 Cable Anchorage Test System EVSE Cable Pull & Torque Test Equipment
IEC 61851-23 Cable Anchorage Test System EVSE Cable Pull & Torque Test Equipment
IEC 61851-23 Cable Anchorage Test System EVSE Cable Pull & Torque Test Equipment
IEC 61851-23 Cable Anchorage Test System EVSE Cable Pull & Torque Test Equipment
IEC 61851-23 Cable Anchorage Test System EVSE Cable Pull & Torque Test Equipment
IEC 61851-23 Cable Anchorage Test System EVSE Cable Pull & Torque Test Equipment
Specifications
Brand Name :
Sinuo
Model Number :
SNQC1007B
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
Plywood box
Pull apply :
Meet 160N, 200N, 240N, 250N, 500N specifications, realized by superposition of weights
Torque apply :
Meet 0.6N•m, 0.7N•m, 1.4N•m, 2.7N•m, 5.4N•m, 11.0N•m, 16.3N•m specifications，realized by superposition of weights
Torque wheel :
R100mm(Ф200mm) ±0.5mm
Tensile frequency :
1 time/s
Pull cycles :
1-999999 cycles
Torque application time :
0-99H59M59S
Control operation mode :
PLC automatic control, touch screen operation
Power failure protection :
With power-off data storage memory function
Description

IEC 61851-23 Cable Anchorage Test System EVSE Cable Pull & Torque Test Equipment

Complied Standards & Clauses

It is designed and manufactured according to IEC 61851-23:2023 clause 11.6.102 and Figure 110, Figure 111 and Table 114.

Product overview

The Cable Anchorage Pull Force and Torque Test Apparatus (Model SNQC1007B) is a high-precision testing solution engineered for manufacturers and laboratories seeking reliable EVSE compliance. Developed strictly according to IEC 61851-23:2023 clause 11.6.102, this system evaluates whether EV AC/DC charging station cables and anchorage structures can withstand specified tensile forces and torque without exceeding displacement limits.

Equipped with PLC intelligent control, motor-driven force application, and precision weight loading, the SNQC1007B delivers stable, repeatable, and highly accurate test results. Its customizable parameters, durable mechanical structure, and intuitive touch-screen interface make operation effortless even for first-time users.

By realistically simulating real-world pull and twist conditions, this apparatus ensures that charging stations meet stringent international safety standards—helping manufacturers guarantee safer, more reliable, and fully compliant EV charging infrastructure.

Technical Parameter

Test content EV Charging Station Cable Pull and Torque Tests

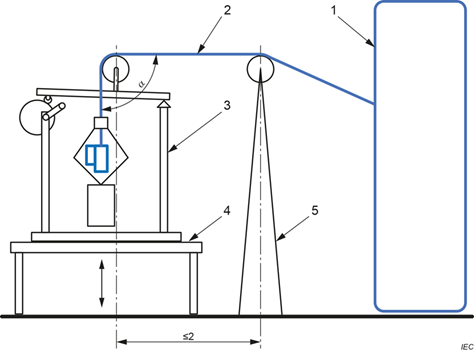

Equipment structure schematic diagram IEC 61851-23 Cable Anchorage Test System EVSE Cable Pull & Torque Test Equipment
Control operation mode PLC automatic control, touch screen operation
Torque apply Meet 0.6N·m, 0.7N·m, 1.4N·m, 2.7N·m, 5.4N·m, 11.0N·m, 16.3N·m specifications,realized by superposition of weights
Drive mode Electric
Pull apply Meet 160N, 200N, 240N, 250N, 500N specifications, realized by superposition of weights
Pull cycles 1-999999 cycles, can be preset, default is 100±1 cycles
Torque wheel R100mm(Ф200mm) ±0.5mm
Tensile frequency 1 time/s, the actual pull time is detected by electrical signal
Fixture Universal clamp, one set
Torque application time 0-99H59M59S,can be preset
Power failure protection With power-off data storage memory function
Additional configuration The equipment features an adjustable fixture height ranging from 500 to 1200 mm (i.e., the cable outlet position), allowing it to meet the testing requirements of charging stations with different cable outlet positions.

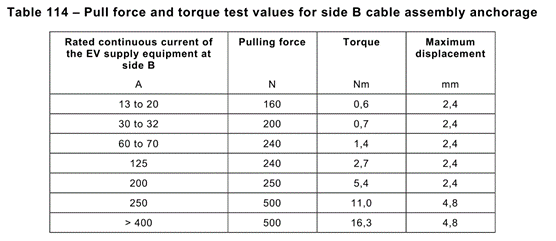

Weight matching selection table IEC 61851-23 Cable Anchorage Test System EVSE Cable Pull & Torque Test Equipment

Details

IEC 61851-23 Cable Anchorage Test System EVSE Cable Pull & Torque Test EquipmentIEC 61851-23 Cable Anchorage Test System EVSE Cable Pull & Torque Test Equipment
