Specifications
Model Number :
SN776
Flame Height :
38mm, adjusted by flowmeter
Supply Ability :
10 Sets/Month
Payment Terms :
T/T
Price :
Customized
Burning/self-extinguishing Time :
0-9999X0.1S
MOQ :
1
Delivery Time :
30 working days
Operation Mode :
button operation (optional PLC control touch screen operation)
Packaging Details :
Plywood case
Place of Origin :
China
Control :
Electrical control
Certification :
Calibration
Temperature :
0-150°C, displayed by a thermometer
Brand Name :
Sinuo
Burner :
Inner diameter Φ9.5±0.3mm, cylinder length 100±10mm
Description

FMVSS 302 Horizontal Flammability Test Chamber For Testing Automotive Interior Polymer Materials

Product information:

This flammability test apparatus is intended for comparing the relative horizontal burning rates of polymeric materials used in occupant compartments of motor vehicles (cars, multi-purpose passenger cars, trucks and buses). It meets the requirements of FMVSS 302, ISO3795, DIN75200, ASTM D5132-17, TL1010, GB8410 and etc.

The specimen is horizontally held on the U-shaped frame, and after the free end of the sample is ignited for 15 seconds in the combustion chamber using a predetermined height flame, it is determined whether the flame on the specimen is extinguished, or when it is extinguished, the burnt distance and the time to burn distance.

FMVSS 302 Horizontal Flammability Test Chamber For Testing Automotive Interior Polymer Materials

Structure:

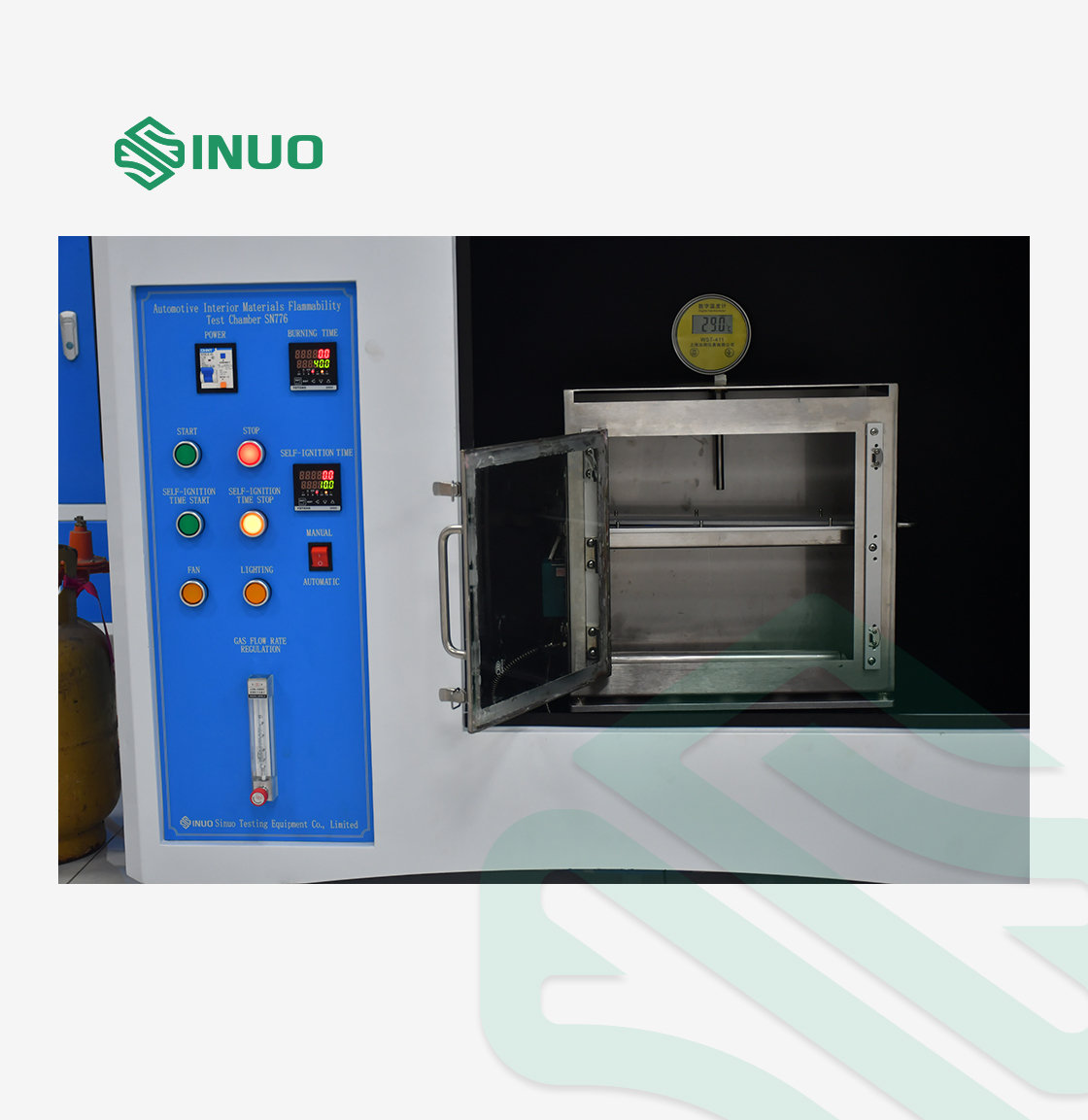

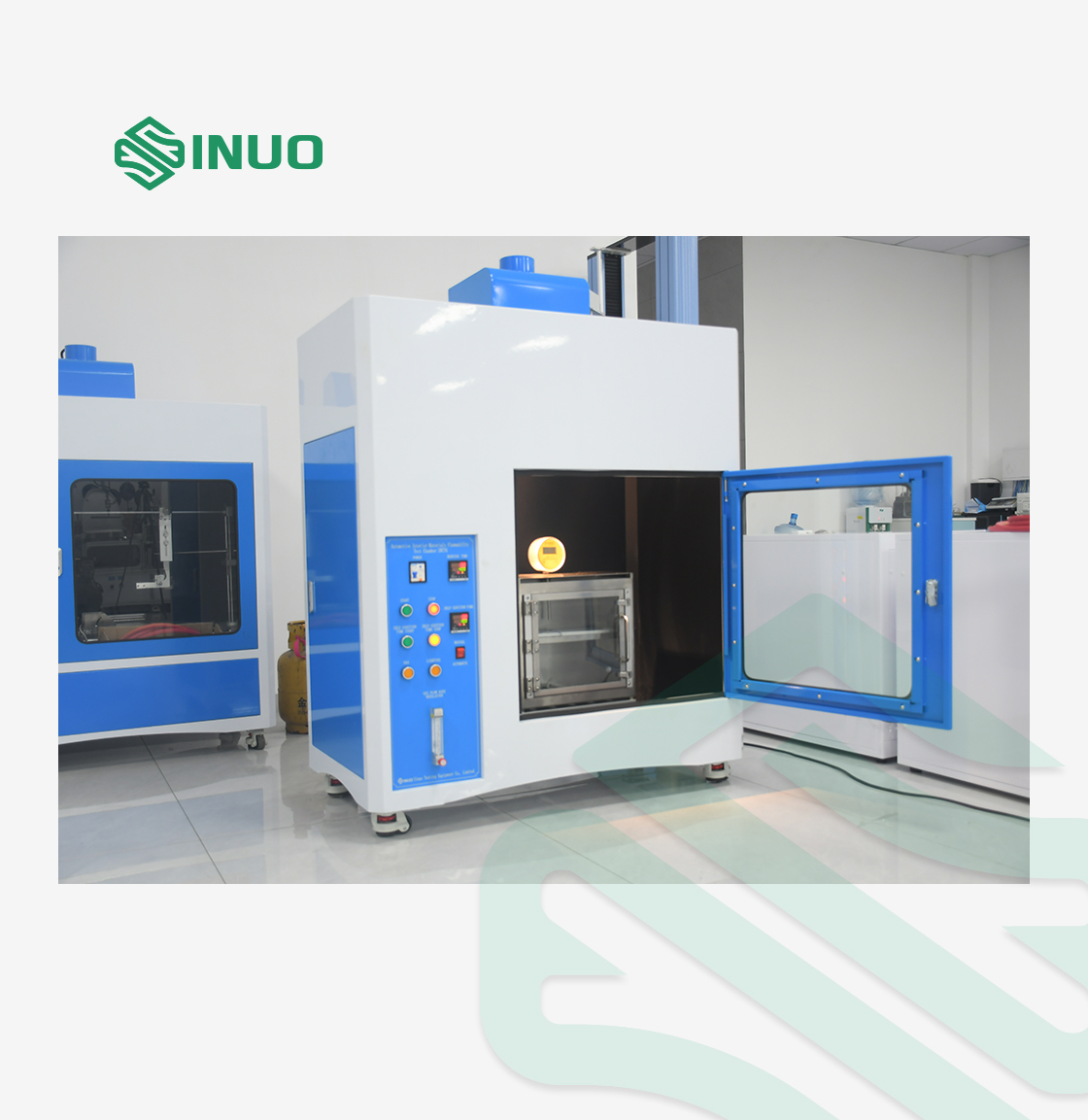

The testing machine is composed of a control chamber, a combustion chamber body, a combustion burner, a solenoid valve (flow meter), a high-pressure igniter, a thermometer, a signal control line, the upper and lower brackets of the sample, and a fume hood. The control box and the combustion chamber are made of stainless steel, beautiful appearance, smoke and gas corrosion resistance, and the control system has a high degree of automation, with automatic ignition, automatic air supply, automatic timing, automatic end of the test and other functions.

FMVSS 302 Horizontal Flammability Test Chamber For Testing Automotive Interior Polymer Materials

Technical parameters:

Control & Operation Mode Electrical control, button operation (optional PLC control touch screen operation)
Burner Inner diameter Φ9.5±0.3mm, cylinder length 100±10mm
Gas Flow and Gas Source Type Liquefied petroleum gas, natural gas and coal gas can also be used
Combustion Chamber Made of stainless steel, with heat-resistant glass observation windows, with ventilation holes around and at the bottom, W*D*H=385mm*204mm*360mm
Burning/self-extinguishing Time 0-9999X0.1S
Distance from The Top of The Torch to The Sample 19±1mm
Flame Height 38mm, adjusted by flowmeter
Metal Comb The length is at least 110mm, and there are 7-8 smooth round teeth in every 25mm
Test Chamber Temperature 0-150°C, displayed by a thermometer
External Dimensions Electrically controlled fume hood and combustion chamber, black matt background, built-in lighting, with exhaust fan, overall dimensions: WDH=1150*600*1200mm, 180kg
Use Environment Power supply: single-phase AC220V±10%, 50/60Hz
Ambient temperature: 10℃～35℃ Relative humidity: 30%～90%
