The Needle Flame Test Apparatus is designed to evaluate the fire hazard of electrical and electronic products, components, insulating materials and solid combustible materials under fault conditions.

The tester applies a controlled needle flame to the test specimen at a specified angle and evaluates whether the material ignites, as well as the flame duration and combustion behavior after exposure.

The equipment is designed in accordance with IEC 60695-11-5 and is suitable for needle flame testing under specified test conditions.

With PLC control and a 7-inch color touchscreen, the SN773 provides automated test operation and convenient parameter monitoring for laboratory and quality-control applications.

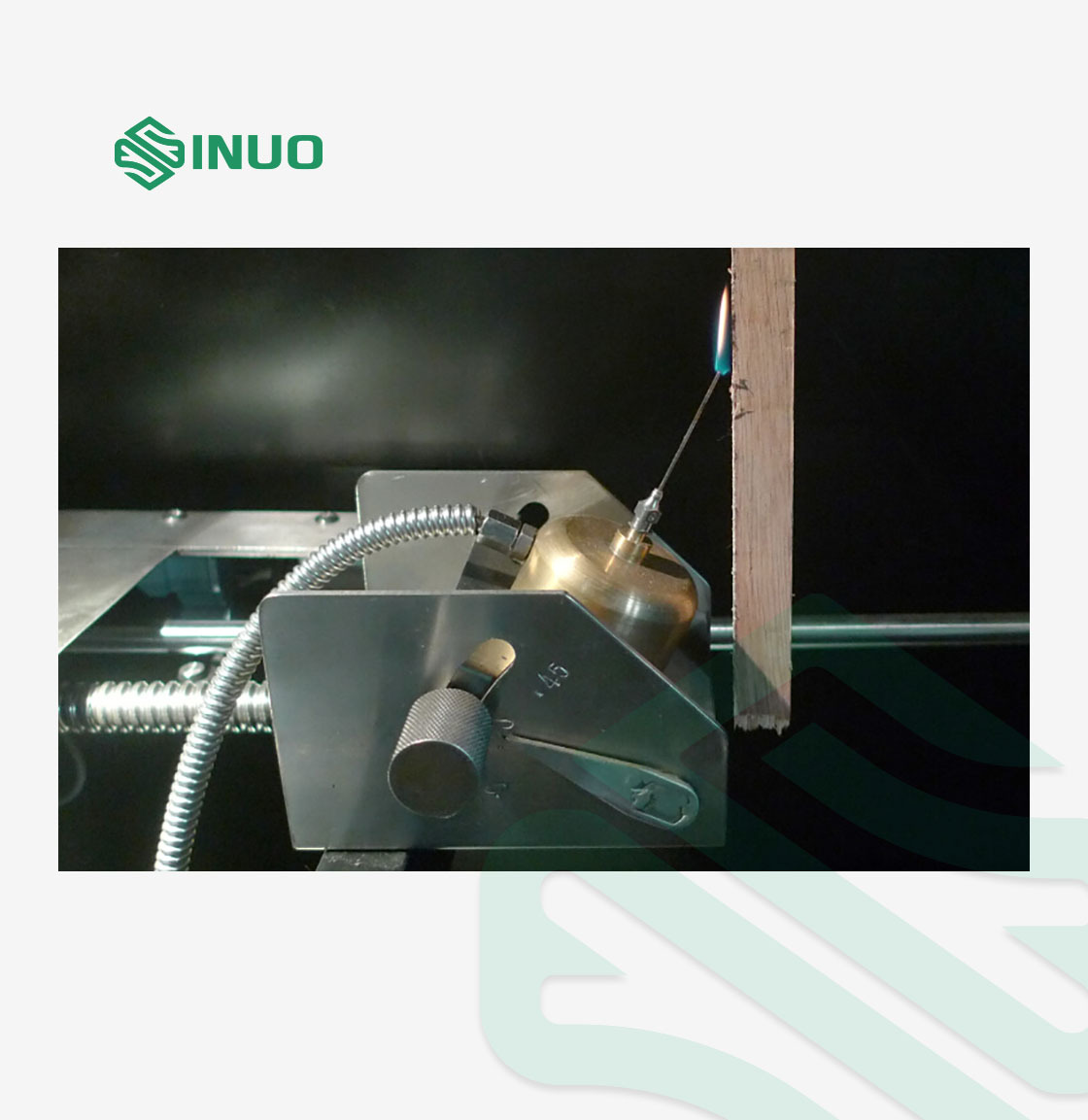

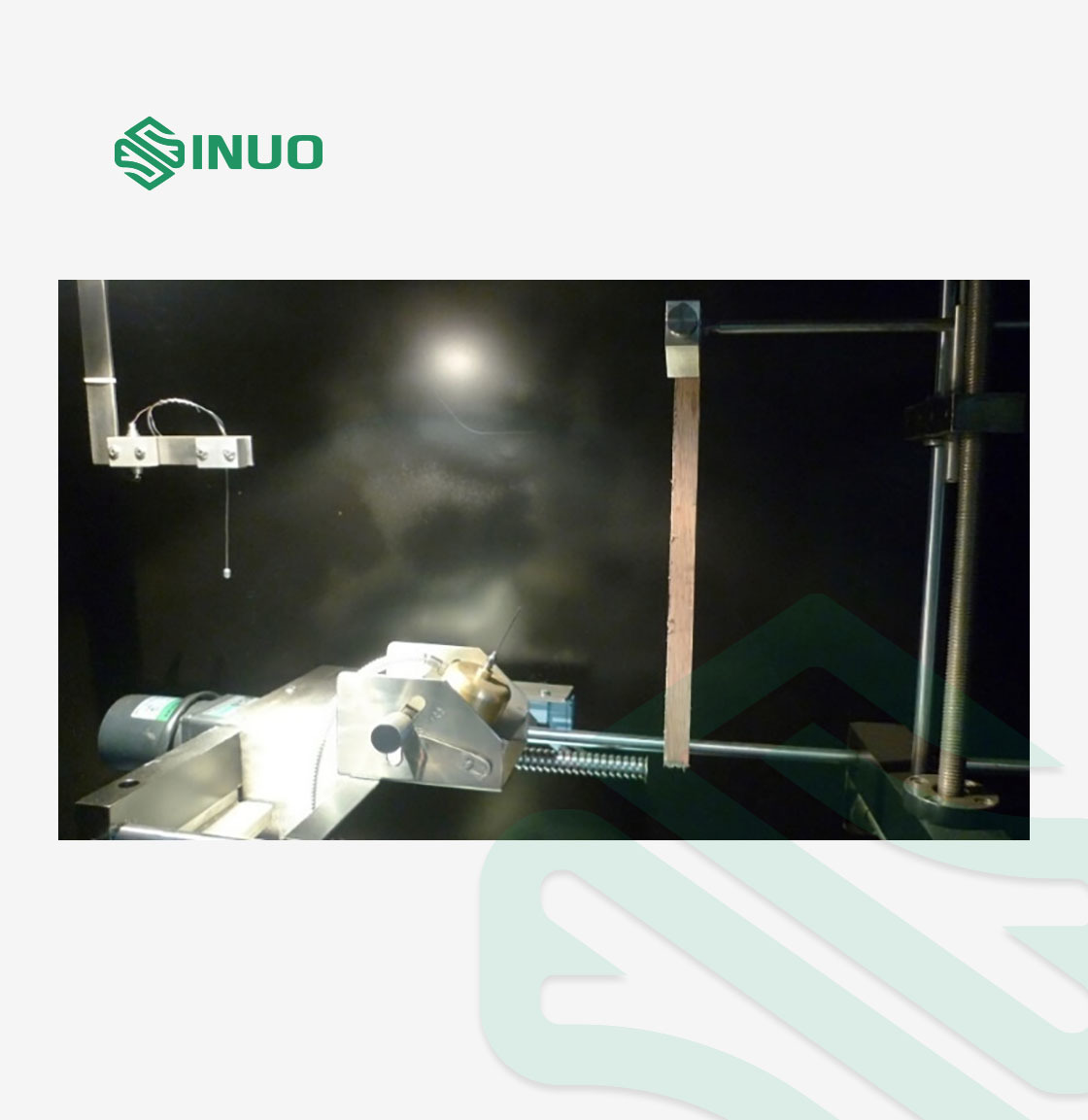

The test uses a needle-shaped burner supplied with butane gas. The burner is positioned at 45° to the specimen during the test.

A specified flame is applied to the sample for the required duration. The fire hazard is evaluated based on factors including:

• Whether the specimen ignites
• Whether combustion continues after flame application
• Burning duration
• Flame propagation or combustion behavior

The test helps assess the resistance of materials and components to ignition caused by a small external flame under abnormal or fault conditions.

The PLC control system automates the test sequence and improves testing repeatability.

A user-friendly touchscreen interface allows operators to set and monitor the test parameters conveniently.

The flame height is adjustable to 12 ± 1 mm and can be checked using the supplied flame height gauge.

The integrated timer supports precise measurement of ignition and combustion duration.

The test procedure incorporates an independent air-draft system to help maintain the required testing conditions.

Parameter/ model	SN773
Working voltage	AC 220V/50Hz
Control	PLC
Display	7 inch color touch screen
Timing device	9999X0.1S
Combustor	Inner boreφ0.5mm ± 0.1mm , OD ≤φ0.9mm, L ≥ 35mm, stainless steel
Combustion angle	tilt 45°( testing ) or vertical ( when adjust the height of the flame)
Height of the flame	12±1mm adjustable(with flame height gauge)
Gas category	95% butagas ( can use the bottled lighter gas)
Range of temperature test	0~1000℃
Flame warming requirement	From 100°to 700°,time for standard values within 23.5S±1S
Temperature thermocouple	φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple
Work shop	0.5 cube, staunless steel case, black yogon background
Testing process	Test procedure automatic control, independent air draft
Volume size adjustment	Flowmeter adjustment
Accessories	A White Pine Board *1 Tissue Paper *5 Flame height gauge as per figure A.3 *1 A remote controller*1: A aluminum foil exhaust pipe *1
Equipment size & weight	1100mm* 550mm* 1100mm, 120KGS
Conforms to standard	IEC 60695-11-5, etc.
