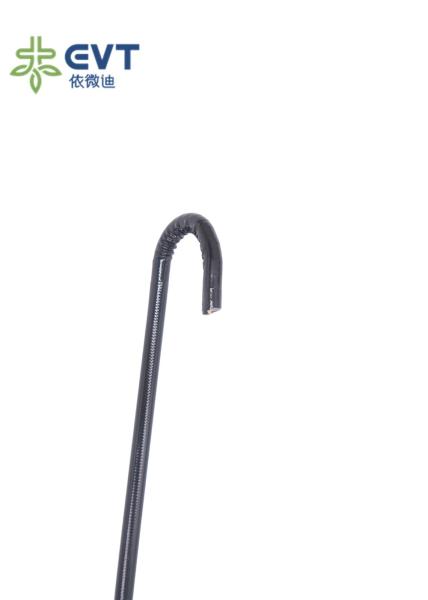

High-Definition Digital Ureteroscope System for Enhanced Visualization and Precision Stone Assessment
Product Attributes
| Attribute |
Value |
| Sterilization |
E.O. sterilization |
| Image Quality |
High-definition |
| Compatibility |
Exclusively compatible with EVT image processor |
| Usage Limit |
Single use only |
| Field Of View |
120° |
| Working Length |
60-70cm |
Product Overview
Our next-generation HD digital ureteroscope delivers exceptional intraoperative visualization and accurate stone assessment capabilities to optimize lithotripsy outcomes.
Key Advantages
- Advanced Imaging System:
- 160K pixel high-resolution imaging
- Submillimeter fragment detection
- Precision Quantification:
- Real-time stone burden measurement (mm² accuracy)
- 98% fragment detection sensitivity
- Data Management:
- Complies with medical data security standards
- Procedure data storage and analysis
Order Information
| Nominal Width (Fr) |
Working Length (mm) |
Working Channel (Fr) |
Description |
| 7.5 |
670 |
3.6 |
Deflection Lock Type |
| 7.5 |
670 |
3.6 |
Deflection Unlock Type |
| 8.5 |
670 |
3.6 |
Deflection Lock Type |
| 8.5 |
670 |
3.6 |
Deflection Unlock Type |
| 8.5 |
670 |
4.2 |
Deflection Lock Type |
| 8.5 |
670 |
4.2 |
Deflection Unlock Type |
Technical Specifications
- Resolution: 160K pixels
- Detection: <1mm particles
- Data Security: Medical-grade compliance
- Compatibility: Standard laser systems
Clinical Value
Provides reliable intraoperative assessment through HD imaging and precise quantification, supporting better surgical decision-making and improved treatment outcomes.
