7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
Specifications
Place of Origin :
Guangdong, China
Model Number :
SC07750
Brand Name :
Max Power
Packaging Details :
Plywood boxes
Supply Ability :
3000 Set/Sets per Month
Price :
$482.35/sets >=1 sets
Interface Standard :
GB/T
Output Current :
DC, 20A
Output Power :
7kW, 7KW/15KW/20KW/30KW/40KW
Input Voltage :
90-265V
Product name :
Ocpp GBT Fast Wallbox DC Ev Charging Station EV Car Charger
Output voltage :
200-750V
Connectors :
Optional CCS,ChadeMo,GB/T
Weight :
20KG
IP Level :
IP54
Certificate :
CE
Warranty :
12 Months
Port :
Guangzhou
Description
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
Product Description
Production Parameters
Model
7KW
AC Input
Input Rating
220Vac±10%
AC Input Connection
L2+L3+PE (NEMA,JPS)
Max. Input Current
32A
Frequency
50 /60 Hz
Power Factor
>0.99@full load
Efficiency
95%
DC Output
Output Voltage Range
200-750Vdc
Max. Output Power
7KW
Max. Output Current
20A
User Interface
TFT-LCD Touch Panel
Yes(swiping card without TFT-LCD Touch Panel)
Push Buttons
Yes
Interface
Yes
Packing

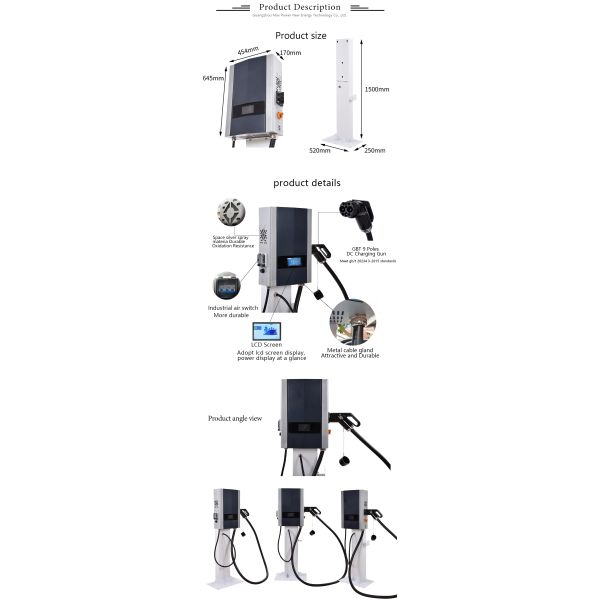

Dimension
W:548 × 378× 160mm U:1500×520× 250mm
Weight
Wall:22KG Upright:25KG
Environmental
Operating Temperature
-40~85℃,25℃(TYPE)
Humidity
5%-90% RH, non-condens,ng
Altitude
2000m
IP Level
IP54
Mechanical
Cable Length
5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable
Regulation
EN61851-1
Regulation
Certification
CE , ROHS
Charging protocol
CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24
Please feel free to click here for more information!
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
Please feel free to click here for more information!
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial

OVERVIEW:

This charger is great for mounting in your garage, business, racing, or RV park. It is very useful to have as a backup
charger for use on the race track, in a tow truck, in an SUV, trailer or anywhere you need power. This affordable 7-40 KW DCFC is perfect to install for charging electric vehicle at maximum speed as well as many EV cars. take on road trips through rural areas with RV or industrial areas being the main power sources for EV travelers. This unit will greatly speed up you or your customers charging.

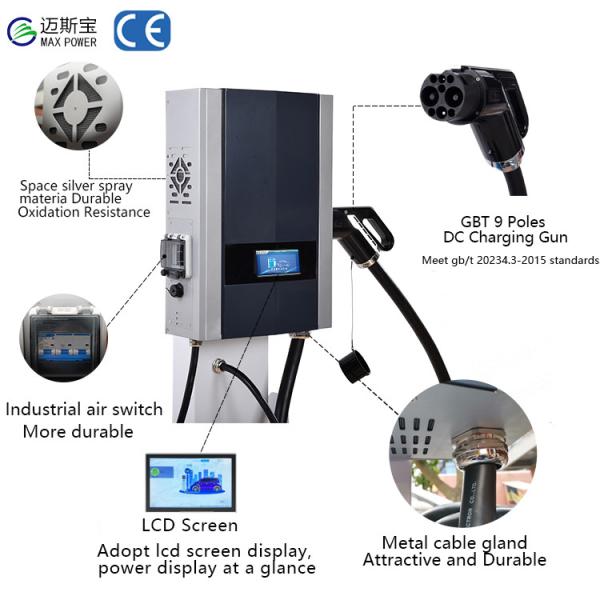

FEATURES:

♦ Features Small size and light weight.
♦ 4.3-inch touchscreen display.
♦ Scan or swipe the card to charge.
♦ Support remote charging monitoring and control of mobile phones.
♦ IP54 protection level.
♦ Fashion and high-end modeling.
Note:All product outward appearance, the color take the material object as, the picture only supply the reference
Please feel free and click here for more information.
Applications
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
Company Profie
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
Please feel free and click here for more information.
Exhibition
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
Packaging and shipping
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
Customer Reviews
7kw 15kw 20kw Ocpp Type 2 EV Charging Station for Commercial
Please feel free and click here for more information.
FAQ
Q1.Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
