22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA
22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA
22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA
22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA
22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA
22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA
22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA
22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA
22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA
22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA
Specifications
Place of Origin :
Tianjin, China
Brand Name :
RuiQ
Packaging Details :
Printed Cardboard Box
Supply Ability :
10000 Piece/Pieces per Week
MOQ :
2 pieces
Price :
$525.00/pieces 2-9 pieces
Interface Standard :
CCS/GBT/CHAdeMO/TESLA
Output Current :
32A
Output Power :
30KW
Input Voltage :
220V
Product name :
Level 3 Portable DC EV Charger Station
Rated Power :
7KW, 15KW, 20KW, 30KW, 40KW
Weight :
20KG, 25KG, 28KG, 35KG, 44KG, 60KG
Socket Stardard :
GBT Combo, CCS Combo 1, CCS Combo 2, CHAdeMO
LCD Display :
optional 4.3-inch touch LCD screen shows charging data
Cable length :
5 meters or customization
Charging Standard :
LEVEL 3 / MODE 3
Mechanical life :
No-load socket in/pull out >10000 times
Vibration resistance :
Meet JDQ53.36.1.1-53.36.1.2 requirements
Operating voltage :
220V DC
Port :
Tianjin
Description
If you have any questions about ev chargers, pls feel free to contact us.We will provide you with a suitable solution even if you don't buy our products.
22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA
22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA

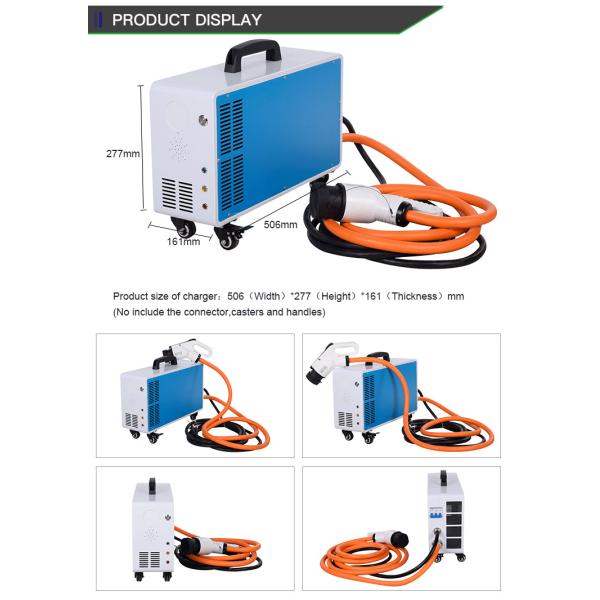

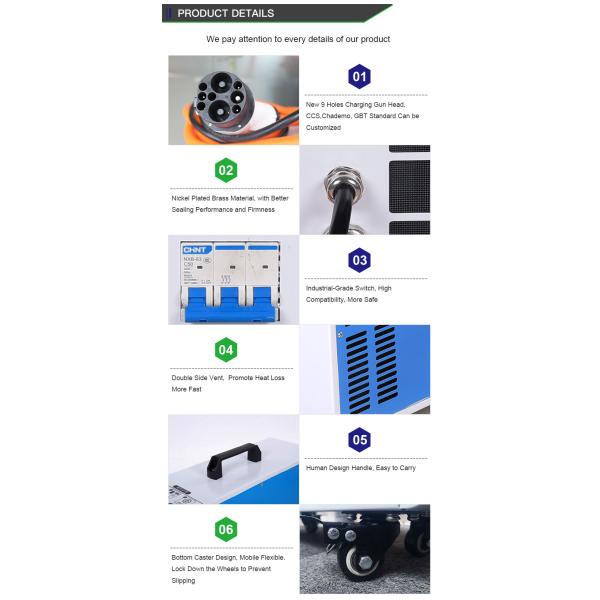

Details Images
Model
30KW
AC Input
Input Rating
380Vac±15%
AC Input Connection
3P + N +PE, Wye connection
Max. Input Current
60A
Frequency
50 /60 Hz
Power Factor
>0.99@full load
Efficiency
95%
DC Out put
Output Voltage Range
200-750Vdc
Max, Output Power
30KW
Max. Output Current
50A
User Interface
TFT-LCD Touch Panel
YES
Push Buttons
No
Interface
USB
Packing
Dimension
570×190×350mm
Weight
44KG
Environmental
Operating Temperature
-40~85℃,25℃(TYPE)
Humidity
5%-90% RH, non-condens,ng
Altitude
2000m
IP Level
IP43
Mechanical
Cable Length
5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable
Regulation
EN61851-1
Regulation
Certification
CE , ROHS
Charging protocol
CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24
22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA
22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA
22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA
22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA

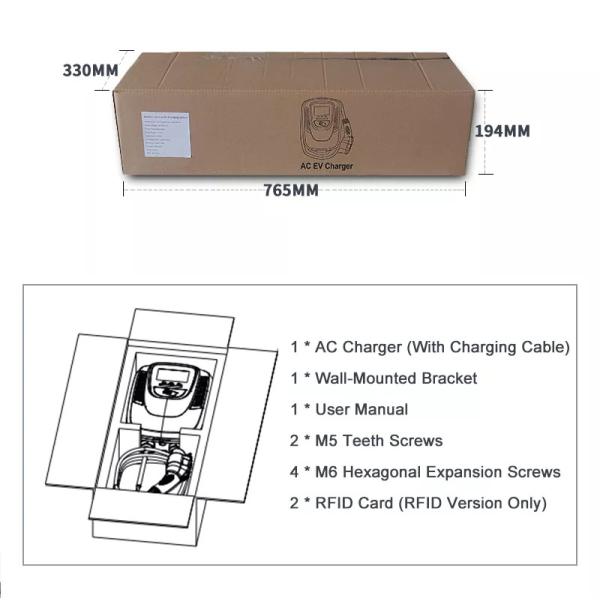

Packaging & Shipping
22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA
22KW EVSE EV Charger GBT CCS Level 3 DC Fast Charger For Volkswagen VW ID4 ID6 TESLA
FAQ
Q1: Can I get a lower price if I order large quantities?

A1: Yes, the larger the quantity, the lower the price.

Q2: Can I get the pre-production sample?

A2: Yes, we can provide pp sample, and then start production after confirmation.

Q3: When will my order be shipped?

A3: Normally 2-3 days after payment, but it varies depending on quantity.

Q4: How about the quality guarantee period?

A4: 1~3 years depending on specific products.

Q5: How can you guarantee the production quality ?

A5: Our team has more than 15 years of QC experience, the production quality follows ISO9001, there is strict quality
control system in our production process, and multiple inspections for each finished product before packaging.

Q6: How to choose EV chargers?

Speed: Charging speed differs based on an EV charger’s amperage and voltage. For example, 32 amps electrical car
chargers add about 25 miles of Range Per Hour of charging. To avoid unnecessary upgrade in the future, it is also a good
idea to choose EV charging stations with a higher amperage.

Supply: An electrical circuit is normally required to be rated for at least 25% greater amperage than your charger’s output.
For example, if you are going to purchase a 40-amp Level 2 charger, you will need a circuit breaker that’s rated for 50
samps and above.

Location: It is recommended to install an EV home charger near your electrical panel, otherwise a lot of conduit will be
costly. A waterproof EV charger wallbox suitable for outdoor use provides the flexibility to install indoors or outdoor.

Smart Features: Some EV charger stations comes with an app to manage charging, set a schedule, track charging costs
and miles driven, etc.

Plug-in or Hardwired: Electric car chargers are available in plug-in or hardwired options. Plug-in EV charger wallbox can be

easily relocated, while Hardwired car EV chargers are affixed to the wall permanently.

Cable Length: An EV charger box comes with cables of various lengths, be sure to choose an EV charging cable that is
long enough to reach the charge port of your car.
