RFID Wi-Fi 4G EV Fast Charging Station 30mA Type A 6mA DC 230V 32A
RFID Wi-Fi 4G EV Fast Charging Station 30mA Type A 6mA DC 230V 32A
RFID Wi-Fi 4G EV Fast Charging Station 30mA Type A 6mA DC 230V 32A
RFID Wi-Fi 4G EV Fast Charging Station 30mA Type A 6mA DC 230V 32A
RFID Wi-Fi 4G EV Fast Charging Station 30mA Type A 6mA DC 230V 32A
RFID Wi-Fi 4G EV Fast Charging Station 30mA Type A 6mA DC 230V 32A
RFID Wi-Fi 4G EV Fast Charging Station 30mA Type A 6mA DC 230V 32A
RFID Wi-Fi 4G EV Fast Charging Station 30mA Type A 6mA DC 230V 32A
Specifications
Brand Name :
Hongshunjin
Model Number :
NK-GS7-AC-B01
Certification :
CE,ROHS.FCC
Place of Origin :
Sichuan,China
MOQ :
1 pieces
Price :
USD 229-282/PCS
Payment Terms :
T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability :
1000 Set/Sets per Week
Delivery Time :
3-30 work days
Packaging Details :
L175xW80xH55mm
Application :
Home EV Charging Pile
Function :
Hands-free, APP Control, screen display, Voltage Monitoring, APP,WIFI optional
Protocol :
OCPP-1.6 (JSON)
Protection :
OCP OVP OTP SCP
Start Method :
RFID Card/APP
Cable length :
5M(Customizable)
Waterproof :
IP54
Weight :
8KG
Description

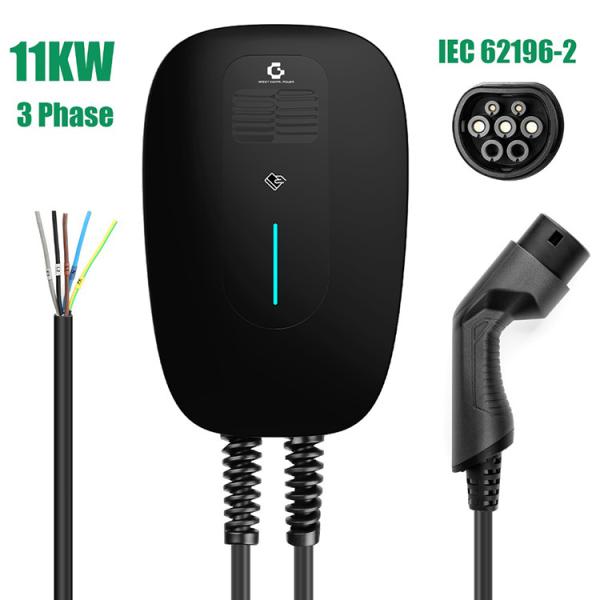

RFID Wi-Fi 4G ev fast charging station K08 30mA Type A 6mA DC 230V 32A

Use the tutorial

--Electric ev car charger with type 1 type 2 plug to charge cars.(TESLA needs a adapter.)
--Screens show ev car charger electricity consumption, current, voltage, hours etc.
--Managing system for adjusting current, observing charging data and history etc.
--Build in type B RCD leakage protection: detect all leakages from cars.
--App control start and stop ev cars charging, make appointment for charging.
--Self adjustable power to coordinate with ev cars' obc power.
--customize logo, language, manual, RFID card for ev chargers.

product details

Data
Model
GS7-AC-HO1
GS11-AC-HO1
GS22-AC-HO1
Input
Power Supply
1P+N+PE
3P+N+PE
3P+N+PE
Rated Voltage
230V AC
400V AC
400V AC
Rated Current
32A
16A
32A
Output
Output Voltage
230V AC
400V AC
400V AC
Output Current
32A
16A
32A
Rated Power
7KW
11KW
22KW
User Interface
Charging Port
Type 2
Cable Length
3.5M/4M/5M/10M
LED Indicator
Yellow/Green/Red
Start Mode
Plug&Play / RFID Card / APP
Emergency Stop
YES
Communication
WIFI
Optional
3G/4G/5G
Optional
OCPP
OCPP 1.6 Json (OCPP 2.0 Optional)
Package
Unit Size
340*285*147mm
Package Size
480*350*210mm
480*350*210mm
480*350*210mm
Net Weight
3.8KGS
4.5KGS
4.5KGS
Gross Weight
4KGS
5KGS
5KGS

RFID Wi-Fi 4G EV Fast Charging Station 30mA Type A 6mA DC 230V 32ARFID Wi-Fi 4G EV Fast Charging Station 30mA Type A 6mA DC 230V 32ARFID Wi-Fi 4G EV Fast Charging Station 30mA Type A 6mA DC 230V 32A

About the factory
Is this a factory, an agent or a trading company?
Sichuan Hongshunjin Co., Ltd. is committed to providing system solutions for the new energy industry, and providing new energy vehicle accessories including motors, electric controls, batteries, electronic steering, electric air conditioners, air compressors, chargers and so on.Products are manufactured by our own factory or the factory of strategic partners.
Which models are the motors used in?
Our motor is used in 1. Electric Vehicle 2. Electric Truck 3. Electric Bus 4.Electric ship 5. Electric construction machinery 6. Electric tractors 7. Industrial field
What accessories do you mainly sell for new energy vehicles?
Trucks, buses, boats: motors, electric controls, batteries, OBC, water pumps, air conditioning systems, steering pumps, air compressors.
Car: All above except battery.
Electric Charging station
Electric bus chassis and bus parts as a whole. Used cars, used electric cars
What is the difference between an AC motor and a DC motor?
The biggest difference: their power source is a direct current, one is alternating current

RFID Wi-Fi 4G EV Fast Charging Station 30mA Type A 6mA DC 230V 32ARFID Wi-Fi 4G EV Fast Charging Station 30mA Type A 6mA DC 230V 32A

Type Type 1 (J1772) Type 2 (IEC 62196)
Current 16Amp 32Amp 40Amp 50Amp 16Amp 32Amp
Charging Power 3.84kW 7.68kW 9.6W 12kW 3.84kW 7.68kW
Cable Length 20ft/6m 20ft/6m 20ft/6m 20ft/6m 20ft/6m 20ft/6m
Item Weight 3.5kg 3.5kg 4.0kg 4.5kg 3.5kg 3.5kg
Phase Single-phase Single-phase Single-phase Single-phase Single-phase Single-phase
