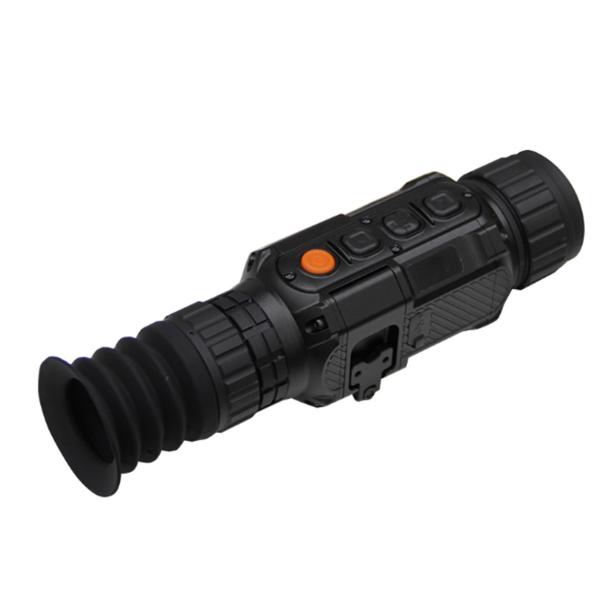

Multi Functional Advanced Thermal Vision Monocular Infrared Thermal Goggles
Multi Functional Advanced Thermal Vision Monocular Infrared Thermal Goggles
Specifications
Price Term :
EXW price
Special Features :
thermal camera
Advance :
Compact, light
Pan :
360 degree auto tracking
Country of Origin :
China
Brand :
EV
MOQ :
1
Price :
100-50000（CNY）
Packaging Details :
Carton
Delivery Time :
Spot goods: 3-7 days Customized/imported products: 15-60 days
Payment Terms :
T/T
Supply Ability :
In stock
Description

Features:
1.Advanced Thermal Imaging Technology
High-resolution infrared sensor (384×288 or higher)
<50mK thermal sensitivity for superior target detection
8-14μm spectral range for optimal performance
2.Multi-Function Display System
High-contrast AMOLED display
Multiple color palettes (white hot/black hot/rainbow etc.)
On-screen display (OSD) with ballistic data
3.Precision Shooting Features
Integrated ballistic calculator
Multiple reticle patterns with zeroing capability
Range-finding function (up to 1000m)
4.Enhanced Optical Performance
3-5x digital zoom
50Hz refresh rate for smooth tracking
Wide field of view (≥12°)

Details

Detector

Uncooled vanadium oxide microbolometer

Resolution

384×288/12µm

Lens focal length

35mm

Field of view

7.5°×5.7°

Visual magnification

3.37～13.48

Working band

8～14 µm

Frame rate

50Hz

NETD

≤50mk@300K

Display

0.39" OLED 1024x7 68

Eyepiece diopter

-5～＋5

Exit pupil distance

45mm

Power supply

2 CR123A lithium batteries

Weight

500g

Battery life

≥2.5h

Dimensions

208×57×58mm (including eyepiece/objective cover)

Interface

external power supply/Type-C

Working temperature

-30℃～ ＋50℃

Protection level

IP67

Reliability

shock 8009

Altitude

≥5000m
