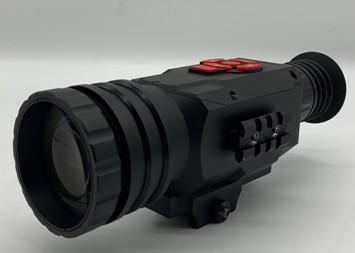

Infrared High Resolution Thermal Optic Goggles Long Range Thermal Binoculars PIP Enhanced Zoom
Infrared High Resolution Thermal Optic Goggles Long Range Thermal Binoculars PIP Enhanced Zoom
Specifications
MOQ :
1
Price :
100-50000（CNY）
Packaging Details :
Carton
Delivery Time :
Spot goods: 3-7 days Customized/imported products: 15-60 days
Payment Terms :
T/T
Supply Ability :
In stock
Price Term :
EXW price
Special Features :
thermal camera
Advance :
Compact, light
Pan :
360 degree auto tracking
Country of Origin :
China
Brand :
EV
Description

Features:
1.Picture-in-Picture (PiP) Display
Dual-view mode combines thermal imaging with a magnified zoom window for precise target identification.
Seamless toggling between wide-field and detailed close-up views.
2.High-Resolution Thermal Sensor
384×288 or higher IR resolution for crisp heat signatures in total darkness.
Detects temperature differences as subtle as <0.05°C.
3.Enhanced Digital Zoom
3x–8x continuous zoom without losing image clarity.
Maintains detail even at long ranges (e.g., 1,000+ meters for human-sized targets).
4.Multi-Spectral Imaging Modes
Adjustable color palettes (black-hot/white-hot/rainbow/fusion) for optimal contrast.
Low-light visible light overlay (optional) for hybrid imaging.

Details

Detector type

Uncooled vanadium oxide or polysilicon

Detector specifications

384×288 (640×480 optional)

Response band

8~14μmm

Pixel size

17μmm

Frame rate

25Hz/50Hz

Graduation lines

eight types

Polarity

white hot/black hot

False color mode

nine types

Hotspot tracking

supported

Boundary detection

supported

Picture-in-picture enhanced zoom

supported

Electronic amplification

1~8 times continuous amplification

Lens focal length

19mm/35mm/f=1.0/50mm f=1.2

Field of view

7.15° × 5.35°

Focusing method

manual

Horizontal viewing angle

4.63°×3.64°

Aperture

F0.8

image storage

Video format

MP4

Image resolution

1024×576 (D1)

Image storage

JPG

Storage capacity

8G standard (maximum optional 64G)

Eyepiece parameters

Display

OLED 0.5 inches

Contrast

10000:1

Exit pupil distance

26mm

Magnification

12x

Eyepiece resolution

1024×768

Observation distance

Personnel (1.8m×0.5m) Detection

1.5km Identification: 0.38km

Vehicle (2.3m×2.3m) Detection

3km Recognition: 0.875km

Interface features

Video output

PAL/NTSC

External power supply

DC 5V, maximum current 1A

Wireless data

wireless image transmission RTSP

Reverse power connection

positive and negative adaptive

Data export

USB 2.0

data sensor

Satellite positioning

Beidou/GPS/GLNSS

Height sensor

support

Electronic compass

(geomagnetic sensor) support

Azimuth

Support

Attitude detection

support

physical properties

Working temperature

-45℃～+60℃

Storage temperature

-45℃～+60℃

Working humidity

95% RH MAX (no condensation)

Protection level

IP66

Input voltage

DC2.5V～5V

Power consumption

average power consumption 4W

Impact resistance

military grade

Battery capacity

25500 rechargeable lithium batteries 3.7V@3500mAH;

Working hours

Continuous working time >5 hours

Dimensions (mm)

220 (L) × 85 (W) × 80 (H)

Net weight

<1.1kg (including battery, hand strap)
