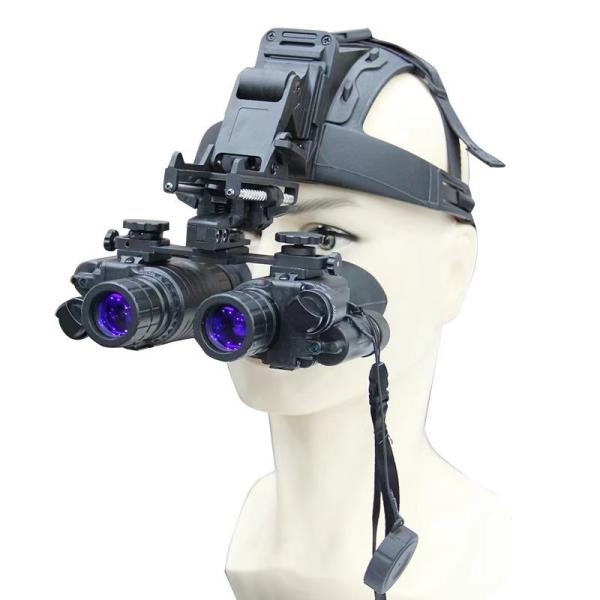

Compact Night Vision Goggles Low Light With Ruggedized Housing
Compact Night Vision Goggles Low Light With Ruggedized Housing
Specifications
Price Term :
EXW price
Special Features :
thermal camera
Advance :
Compact, light
Pan :
360 degree auto tracking
Country of Origin :
China
Brand :
EV
MOQ :
1
Price :
100-50000（CNY）
Packaging Details :
Carton
Delivery Time :
Spot goods: 3-7 days Customized/imported products: 15-60 days
Payment Terms :
T/T
Supply Ability :
In stock
Description

Features:
1.Binocular Design (Dual-Tube System)
3D depth perception for natural viewing, reducing eye strain during prolonged use.
2.High Light Sensitivity (≥2000 μA/lm)
Exceptional low-light performance in starlight-only conditions (0.001 lux).
3.Built-in IR Illuminator
Adjustable 850nm IR beam for total darkness operation (stealth or high-power modes).
4.Magnification & FOV
Typically 1x magnification with 40°+ field of view for situational awareness.
5.Ruggedized Housing
Mil-spec materials (e.g., magnesium alloy), waterproof to IPX7 standards.
6.Modular Accessories
Compatible with helmet mounts, J-arm adapters, and external power packs.

Details

Image intensifier level

Super 2nd generation

Magnification

1X

Resolution

45-57

Cathode surface type

S25

Signal-to-noise ratio (dB)

15-21

Optical sensitivity (microamps/lumens)

450-500

Uptime (hours)

10,000

Field of view (degrees)

42+/-3

Observation distance (meters)

180-220

Eye distance adjustable range

65+/- 5

Eyepiece diopter adjustment range (diopter)

+5/-5

Lens system

F1.2, 25mm

Optical coating

Multi-layer composite broadband ultra-vacuum ion anti-reflection coating

Objective lens adjustment range (meter)

0.25--∞

Automatic anti-strength Light

Highly sensitive, ultra-fast, broadband detection

Flip detection

All-solid-state non-contact automatic gesture recognition

Power supply voltage (volts)

2.6-4.2V

Battery type (volts)

2-cell lithium battery

Continuous working time (hours)

80 ( Infrared is not turned on) 40 (infrared is turned on)

Working temperature range (℃)

-40/+50

Relative humidity

5%-98%

Dustproof and waterproof grade

IP65

Dimensions

115x127x69mm (excluding eye mask)

Product material

All aviation

Aluminum alloy weight

645g
