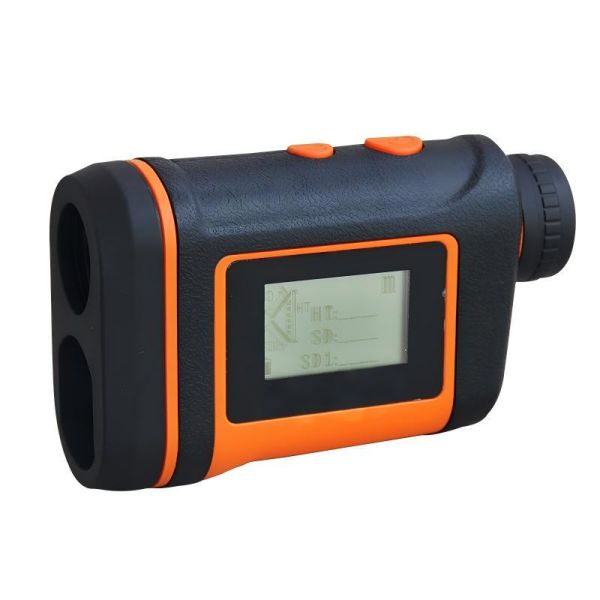

360AS Colorful Display Screen Multifuntion Laser Range Finder
360AS Colorful Display Screen Multifuntion Laser Range Finder
360AS Colorful Display Screen Multifuntion Laser Range Finder
360AS Colorful Display Screen Multifuntion Laser Range Finder
360AS Colorful Display Screen Multifuntion Laser Range Finder
360AS Colorful Display Screen Multifuntion Laser Range Finder
360AS Colorful Display Screen Multifuntion Laser Range Finder
360AS Colorful Display Screen Multifuntion Laser Range Finder
360AS Colorful Display Screen Multifuntion Laser Range Finder
360AS Colorful Display Screen Multifuntion Laser Range Finder
Specifications
Brand Name :
EV
Model Number :
360AS
Place of Origin :
China
MOQ :
1
Price :
15-7000(USD)
Payment Terms :
T/T
Supply Ability :
Spot goods: 3-7 days Customized/imported products: 15-60 days
Delivery Time :
In stock
Packaging Details :
Carton
Price Term: :
EXW Price
Description

Product Feature:

1,Distance measurement (horizontal distance, vertical distance, oblique distance)

2,Angle of inclination measurement

3,Azimuth measurement, compensation measurement (three-point altimetry)

4,The span between any two points in space can be measured

5,Bluetooth data transmission, can connect to the APP

6,Nearest, farthest, multi-object continuous measurement mode

The 360AS can use RS232 interface to transfer measurement data to PPC, data loggers, GPS receivers and other mobile devices. Optional Bluetooth function, easy to achieve real-time wireless data transmission. It can cooperate with GPS receiver for eccentricity measurement, and output the collected data to GPS in real time.

Product Parameter:

Model 360AS
Distance range 0-2000m (standard environment)
Accuracy:) ± 0.2m (<300m),± 1m (300m above)
Display Internal and external LCD display
Measures Azimuth YES
Calculates SD, HD, VD and INC between two remote points Yes, plus AZ
Azimuth Accuracy ±1°
Inclination range ±90°
Inclination Accuracy ±0.25°
Bluetooth® Wireless Communication YES
Magnification 7.0X
Objective lens diameter 26 mm
Field of view 6° /@1000 meters:104 meters
Operating humidity <=80%
Exit pupil diameter 3.7 mm
Exit pupil distance 18.8 mm
Laser type FDA Class 1 CFR21
Focus mode Eyepiece focus
Measurement mode Normal distance, horizontal distance, vertical distance, height,Azimuth
Battery 1200MA/H rechargeable lithium battery
Temperature -20° to 40° C
Size 126x79.5x44mm
Weight 246 g
