QZYB-2/180 Polyesterimide Enameled Rectangular Copper Winding Wire
QZYB-2/180 Polyesterimide Enameled Rectangular Copper Winding Wire
QZYB-2/180 Polyesterimide Enameled Rectangular Copper Winding Wire
QZYB-2/180 Polyesterimide Enameled Rectangular Copper Winding Wire
QZYB-2/180 Polyesterimide Enameled Rectangular Copper Winding Wire
QZYB-2/180 Polyesterimide Enameled Rectangular Copper Winding Wire
QZYB-2/180 Polyesterimide Enameled Rectangular Copper Winding Wire
QZYB-2/180 Polyesterimide Enameled Rectangular Copper Winding Wire
QZYB-2/180 Polyesterimide Enameled Rectangular Copper Winding Wire
QZYB-2/180 Polyesterimide Enameled Rectangular Copper Winding Wire
Specifications
MOQ :
1000 Kgs
Delivery Time :
7-15 working days
Conductor Material :
Electrolytic Copper (Cu-ETP, high purity)
Price :
11.50-20.00 USD/Kg
Insulation Material :
Modified Polyesterimide
Film Build :
Grade 2 (Heavy Build / Double Coating)
Packaging Details :
Wooden Spools, Pallets
Certification :
RoHS
Place of Origin :
Zhejiang
Brand Name :
CHINGCUNG
Standards Compliance :
IEC 60317-0-2, GB/T 6109.5, NEMA MW 30-C
Model Number :
QZYB-2/180
Cut-through Temperature :
≥300°C
Payment Terms :
T/T
Thermal Class :
180 (H-Class)
Conductor Shape :
Rectangular / Flat
Supply Ability :
500 tons/month
Product Type :
Enameled Copper Rectangular Wire
Description

CHINGCUNG®

Shanghai Husu M&E Technology Co., Ltd · Enameled Wire Specialist

QZYB-2/180

QZYB-2/180 (EIW) Enameled Copper Rectangular Wire

Class 180 (H) · Polyesterimide Grade 2 Heavy Build IEC 60317-0-2 / GB/T 6109.5

High-performance rectangular copper winding wire for transformers, reactors, and large motors. Excellent thermal stability and mechanical strength.


Product Specifications QZYB-2/180 (EIW Series)

Model Number

QZYB-2/180 (also known as EIW / polyesterimide enameled rectangular copper wire)

Brand

CHINGCUNG®

Thermal Class

180 (H-Class) — continuous operation

Conductor Material

Electrolytic Copper (Cu-ETP, high purity)

Insulation Type

Modified Polyesterimide resin

Film Build

Grade 2 (Heavy / double coating) — standard

Conductor Shape

Rectangular / Flat

Thickness (T) Range

2.0 mm – 5.6 mm

Width (W) Range

3.0 mm – 7.0 mm

Cut-through Temperature

≥300°C

Standards Compliance

IEC 60317-0-2, GB/T 6109.5, NEMA MW 30-C

Application

Transformers, reactors, traction motors, inductors, wind turbine generators


Standard Bare Conductor Sizes (T × W) — Grade 2 Thickness × Width in mm

Thickness (T) mm

Width (W) mm

Min Film Increase (mm)

Max O.D. (T × W) mm

Approx. Equivalent Round Cu

2.00

3.00

0.12

2.24 × 3.24

φ2.0 mm

2.00

4.00

0.12

2.24 × 4.24

φ2.5 mm

2.00

5.00

0.12

2.24 × 5.24

φ3.0 mm

2.50

4.00

0.14

2.78 × 4.28

φ3.0 mm

2.50

5.00

0.14

2.78 × 5.28

φ3.5 mm

3.00

4.00

0.15

3.30 × 4.30

φ3.5 mm

3.00

5.00

0.15

3.30 × 5.30

φ4.0 mm

3.00

6.00

0.15

3.30 × 6.30

φ4.5 mm

3.50

5.00

0.15

3.80 × 5.30

φ4.5 mm

3.50

6.00

0.15

3.80 × 6.30

φ5.0 mm

4.00

5.00

0.16

4.32 × 5.32

φ5.0 mm

4.00

6.00

0.16

4.32 × 6.32

φ5.5 mm

4.00

7.00

0.16

4.32 × 7.32

φ6.0 mm

4.50

6.00

0.17

4.84 × 6.34

φ5.5 mm

4.50

7.00

0.17

4.84 × 7.34

φ6.0 mm

5.00

6.00

0.17

5.34 × 6.34

φ6.0 mm

5.00

7.00

0.17

5.34 × 7.34

φ6.5 mm

5.60

7.00

0.18

5.96 × 7.36

φ6.5 mm

*Grade 1 / Grade 3 available upon request. Film increase values are minimum per side. Custom dimensions available for volume orders.


Key Advantages

· ✓ High conductivity — electrolytic copper core

· ✓ Excellent thermal endurance up to 200°C

· ✓ Grade 2 heavy build for superior dielectric strength

· ✓ Outstanding mechanical strength & abrasion resistance

· ✓ Resistant to moisture, chemicals & refrigerants

· ✓ Optimized space factor for rectangular slots

Primary Applications

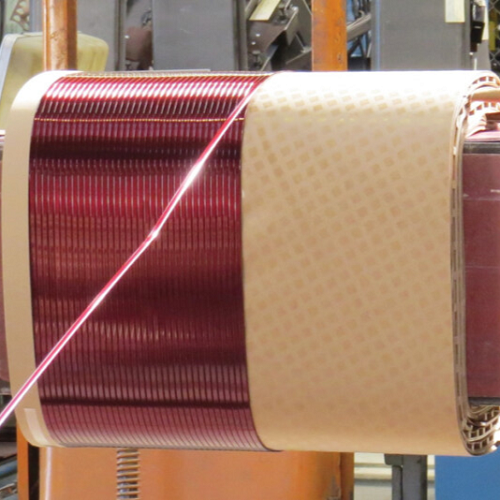

· ✓ Power transformers & distribution transformers

· ✓ Reactor windings & chokes

· ✓ Traction motors (railway, EV)

· ✓ Wind turbine generators

· ✓ High-current inductors

· ✓ Rectifier transformers

Manufacturing & Quality

· ✓ ISO 9001:2015 certified facilities

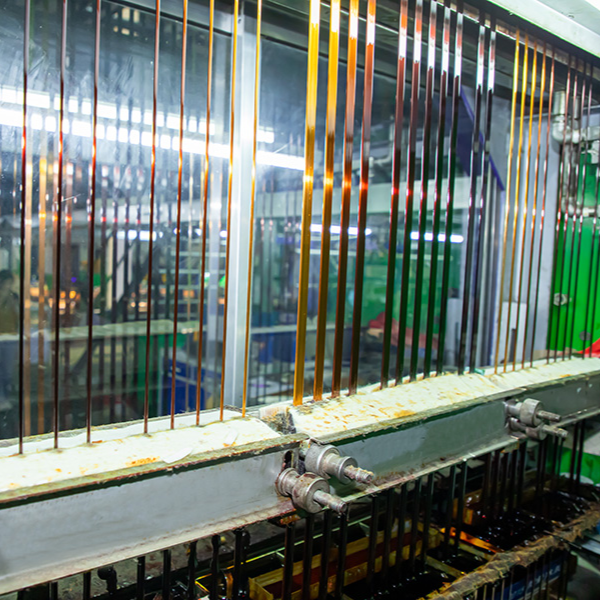

· ✓ Automated enameling lines with real-time QC

· ✓ 100% continuity & dielectric testing

· ✓ Precision dimensional control

· ✓ Strict raw material traceability

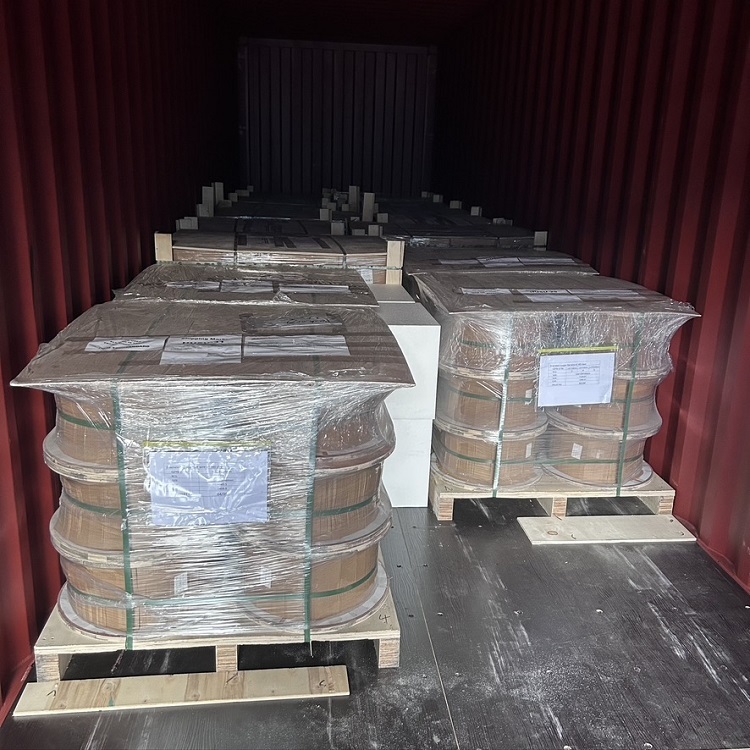

Packaging — Export-ready Wooden Spools

Standard packaging: CHINGCUNG enameled rectangular copper wires are wound on heat-treated, fumigation-free wooden spools (ISPM 15 compliant), suitable for direct export to all global markets. The spools are robustly constructed to protect the wire during long-distance shipping and handling.

Spool options: Custom spool sizes available upon request. Wooden spools are secured with moisture-resistant wrapping and labeled per customer requirements.

Export advantage: ISPM 15 heat-treated wood — no additional fumigation required at destination ports. Safe, reliable, and environmentally responsible.


Customization: In addition to standard sizes listed above, we offer custom thickness/width combinations, non-standard dimensions, and special spool packaging. Grade 1 (single coating) and Grade 3 (triple coating) available for specific insulation requirements. Contact our technical team for consultation.

CHINGCUNG · Shanghai Husu M&E Technology Co., Ltd
Professional Enameled Wire Manufacturer · Established 2015

Tel: +86 13621982708 | Email:️ leon.xu@chingcung.com
Web: https://chingcung.com

QZYB-2/180 Enameled Copper Rectangular Wire · Specifications subject to continuous improvement · Complies with RoHS & REACH
