ES series helical worm gear motor
ES series helical worm gear motor
ES series helical worm gear motor
ES series helical worm gear motor
ES series helical worm gear motor
ES series helical worm gear motor
Specifications
Brand Name :
EVERGEAR
Model Number :
ES37~ES97
Certification :
ISO9001,ISO14001,ISO24001,CE
Place of Origin :
CHINA
MOQ :
1
Price :
$59
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
99999999
Delivery Time :
20-30Days
Packaging Details :
Export Strong wooden case and pallet
Power range :
0.18KW-22KW
Ratio :
4.81-259.74
Output Speed :
0.3-150rpm
Output torque :
92N.m-4000N.m
Input  speed :
500rpm,750rpm,1000rpm,1500rpm,1800rpm
Output shaft diameter :
20mm-70mm

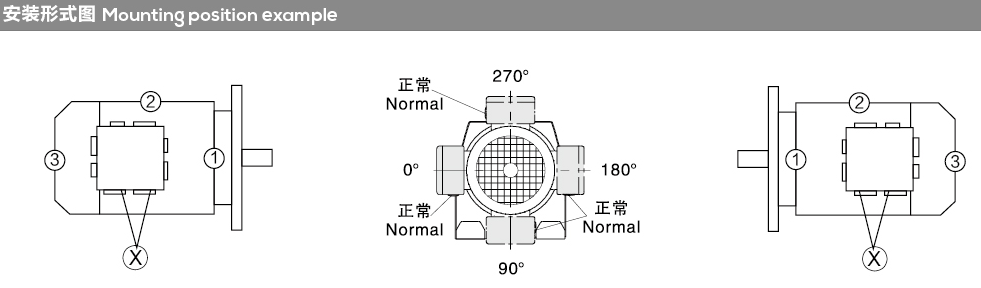

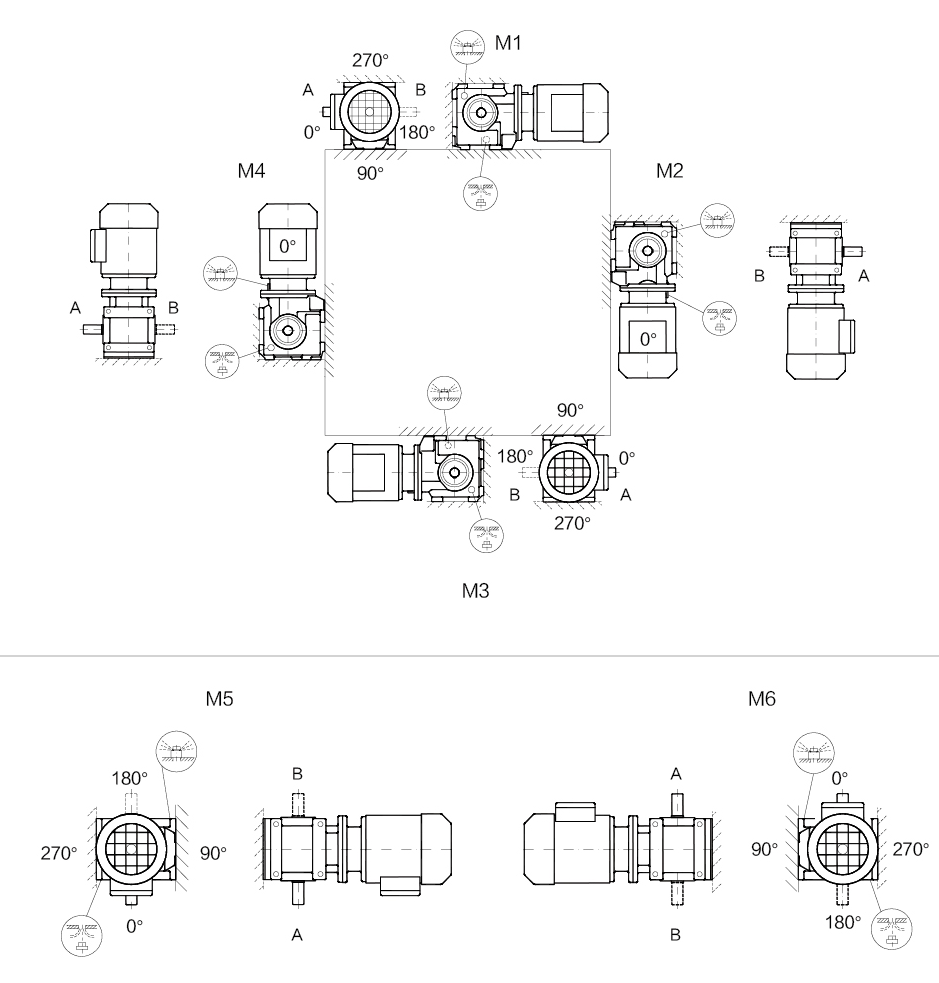

Mounting way :
foot mounted, shaft mounted, flange mounted，torque arm mount,shrink disc mount,spline shaft mount
Input way :

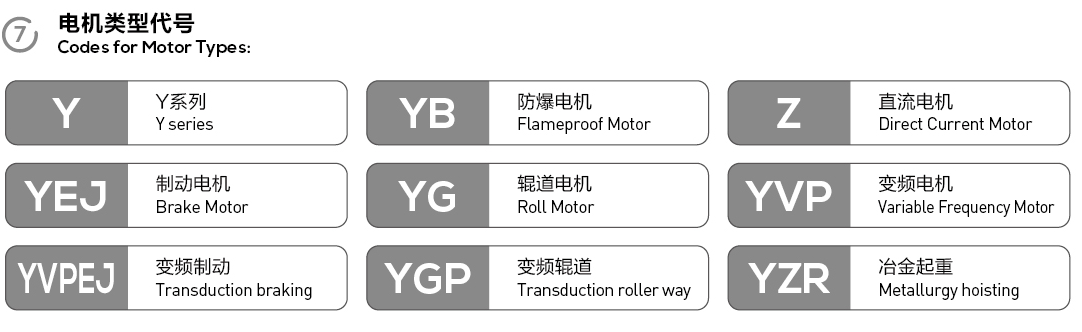

Solid Shaft Input, Hand Wheel Input, AC Motor Input, Servo Motor Input
Output way :
Solid shaft , hollow shaft,shrink disc,spline shaft
Weight :
11KGS-158KGS
Ambient temperature :
-15.00 [°C] ~ +40 [°C]
Direction of rotation of gear output shaft :
CW rotation or CCW
Corrosion protection :
Conservation acc. to Norm C1,C2,C3,C4,C5
Coating system :
Standard coating, finishing coat, for all climatic zones
Color :
blue RAL5010 /Grey RAL7031 or any color you need
Description

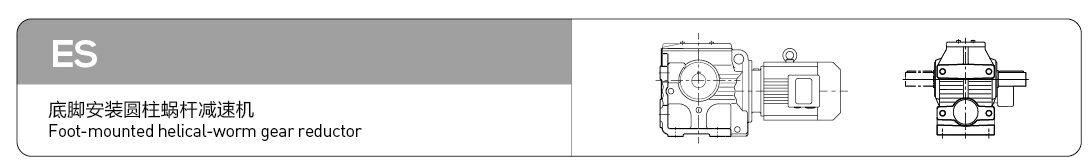

Model: ES series helical worm gear motor

Size: ES37, ES47, ES57, ES67, ES77, ES87, ES97

Model selection table:

Model ES37 ES47 ES57 ES67
Structure form ES/ESA /ESF/ESAF/ESAT/ESAZ
Input power(KW) 0.18-0.75 0.18-1.5 0.18-2.2 0.18-4
Ratio 9.24-167.2 11.46-210.57 10.78-201 11.66-224.65
Permissible torque(Nm) 92 170 295 520

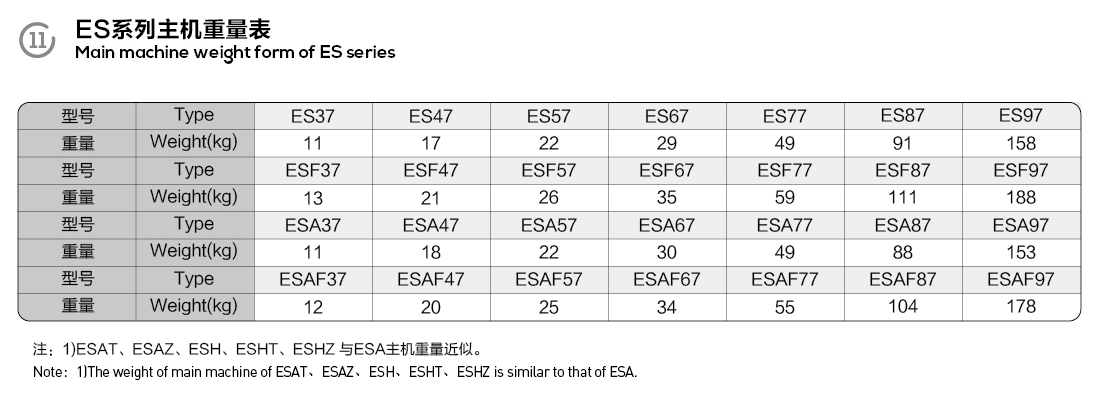

Weight(KGS) 11 17 22 29
Model ES77 ES87 ES97
Structure form ES/ESA /ESF/ESAF/ESAT/ESAZ
Input power(KW) 0.37-7.5 0.37-15 0.75-22
Ratio 10.94-240 10.29-308 10.13-280
Permissible torque(Nm) 1270 2280 4000
weight(KGS) 49 91 158

ES series helical worm gear motor

ES series helical worm gear motor

ES series helical worm gear motor

ES series helical worm gear motor

ES series helical worm gear motor

ES series helical worm gear motor

ES series helical worm gear motor

ES series helical worm gear motor

For detailed technical specifications, custom configurations, or application support, please contact our engineering team online!
