Specifications
Brand Name :
EVERGEAR
Model Number :
NMRV025~NMRV150
Certification :
ISO9001,ISO14001,ISO24001,CE
Place of Origin :
CHINA
MOQ :
1
Price :
$39
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
99999999
Delivery Time :
20-30Days
Packaging Details :
Cartoon or wooden cases
Power range :
0.06~22kw
Ratio :
7.5,10,15,20,30,40,50,60,80,100 Combined reducer ratio:300,400,500,600,750,900,1200,1500,1800,2400,3000,3200
Output Speed :
0.4~186.7rpm
Output torque :
2.6~1760 Nm
Input speed :
750rpm,1000rpm,1500rpm,1800rpm.
Output shaft diameter :
18mm-50mm
Reduction stage :
single transmission stage
Accessory :

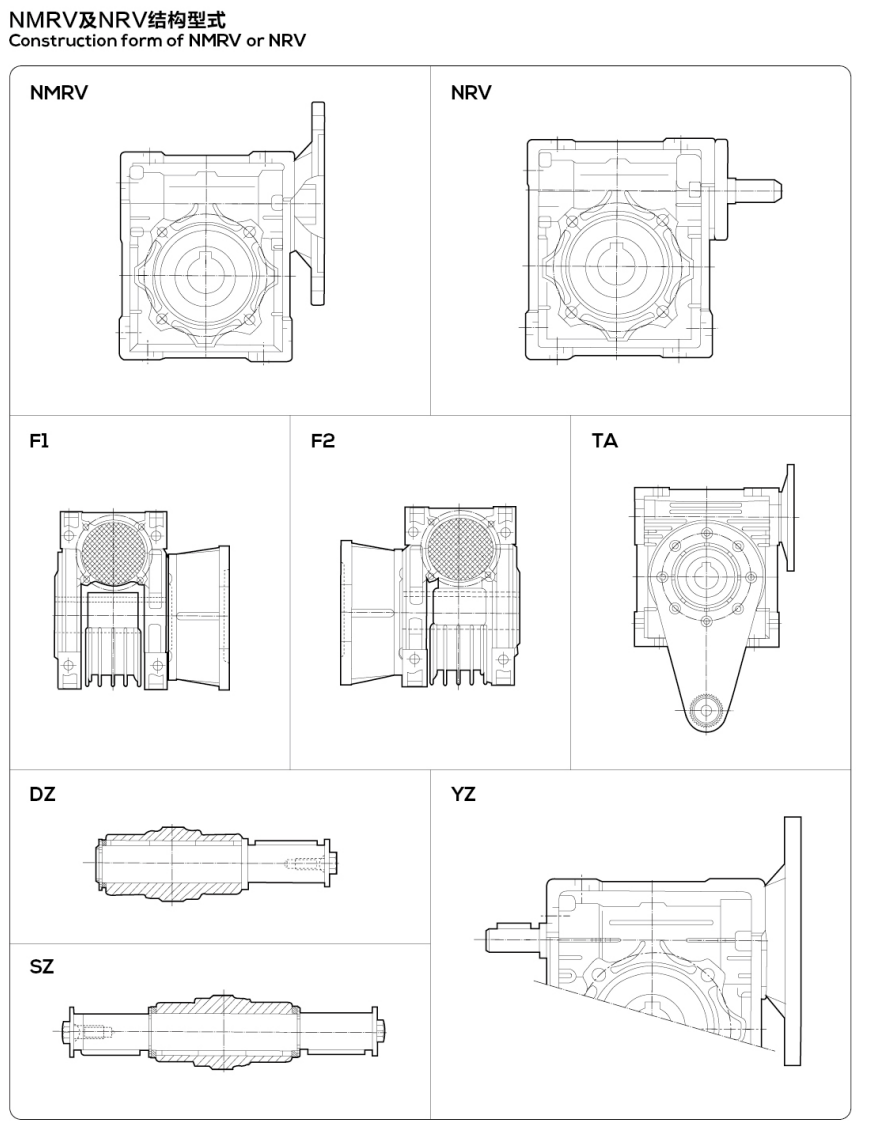

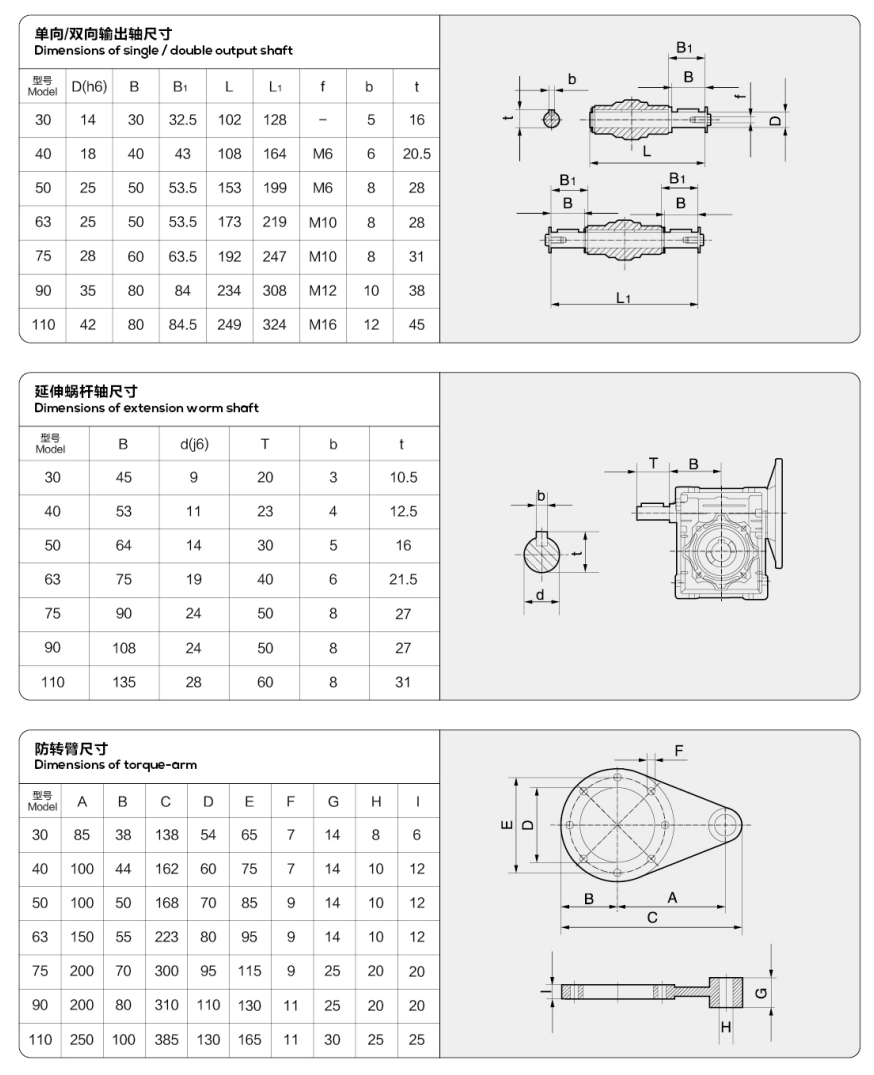

Single or double output shaft, output flange, Torque arm, Extension worm shaft

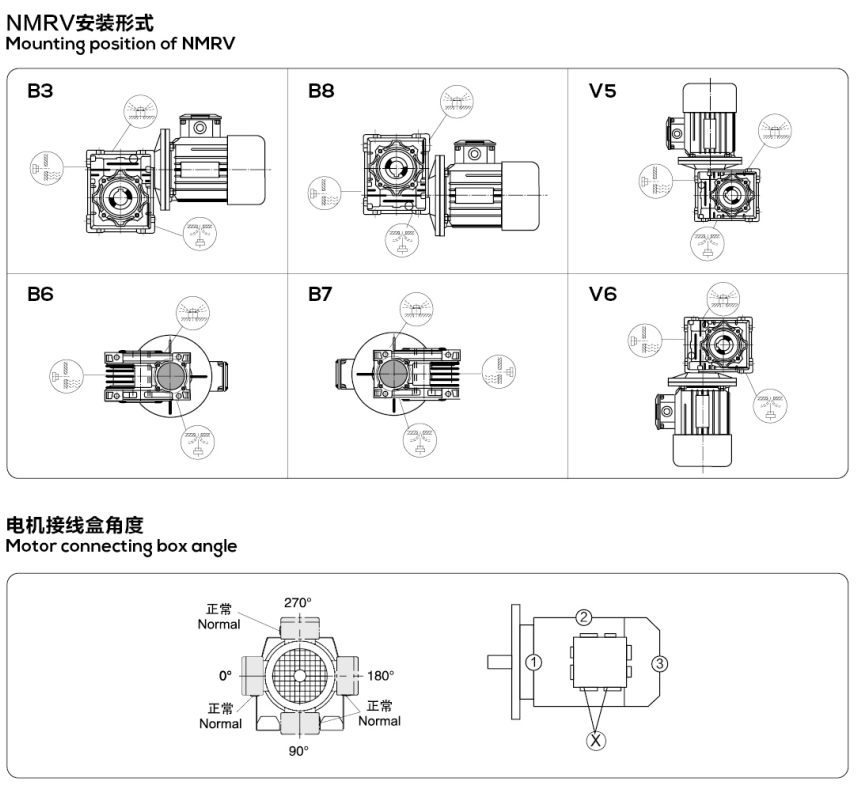

Mounting way :
B3, B8, V5, B6, B7, V6
Weight :
1.2KGS-84KGS
Color :
Blue or Silver
Description
Model: NMRV Worm gear reducer
Size:

RV25 RV30 RV40 RV50 RV63 RV75 RV90 RV110 RV130 RV150

NMRV30 NMRV30 NMRV40 NMRV50 NMRV63 NMRV75 NMRV90 NMRV110 NMRV130 NMRV150

NRV25 NRV30 NRV40 NRV50 NRV63 NRV75 NRV90 NRV110 NRV130 NRV150

Advantages:

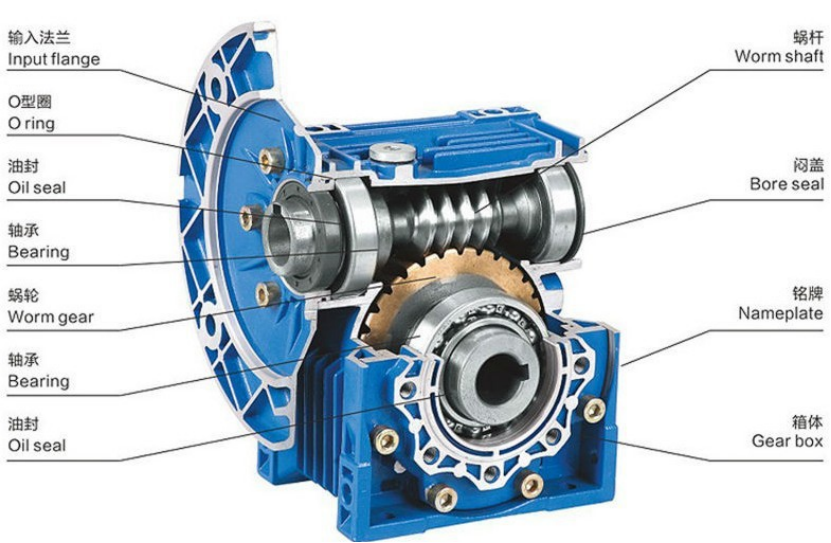

  • High quality die casting aluminum alloy housing, suitable for universal mounting
  • Hardened worm with fine grinding has the features of higher efficiency and big output torque
  • Low noise and stably running, can adapt long term work condition in terrible environments
  • Light weight, high mechanical strength

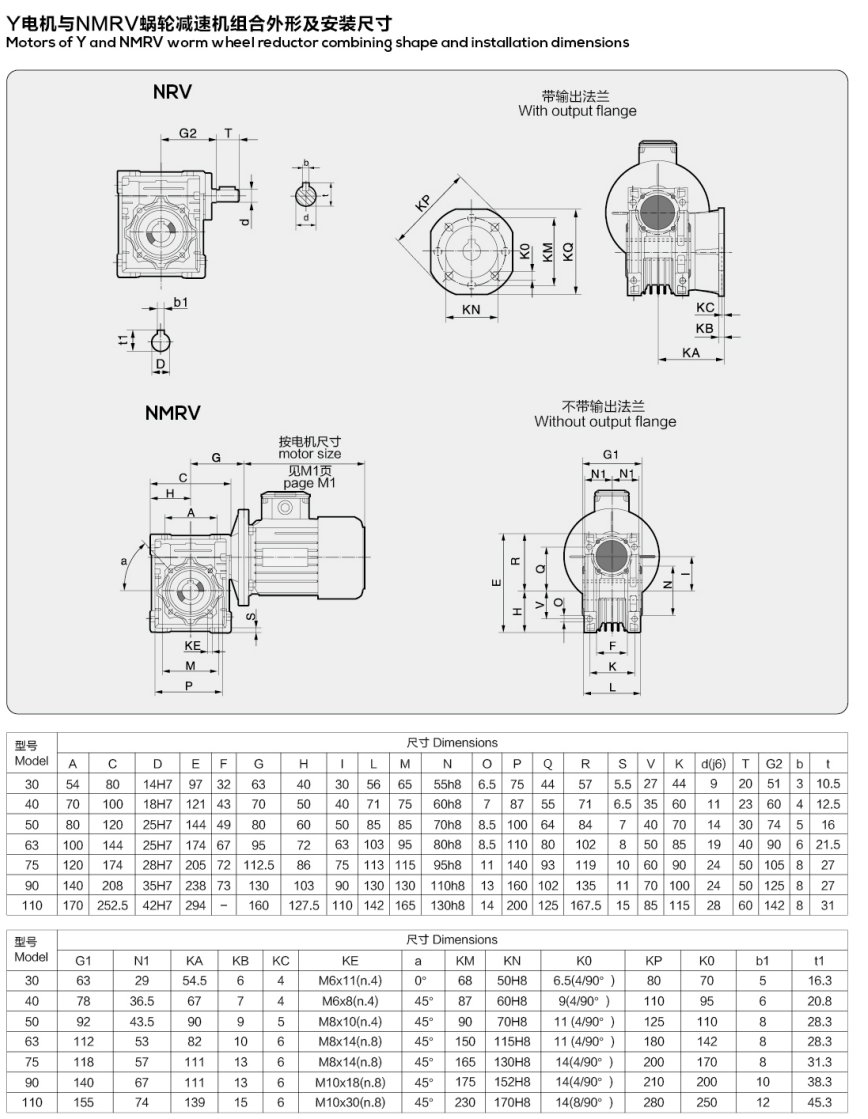

Model Shaft Dia.(mm) Center Height
(mm)		 Output Flange Dia.
(mm)		 Power
(kw)		 Ratio Permitted Torque Weight
(KGS)
Solid(h6) Hollow(h7) (Nm) (KGS)
NMRV030 14 14 40 80 0.09~0.3 7.5~100 22 1.5
NMRV040 19 18/19 50 110 0.12~0.5 7.5~100 55 2.5
NMRV050 25 25 60 125 0.18~0.7 7.5~100 120 4
NMRV063 25 25 72 180 0.37~1.5 7.5~100 175 6
NMRV075 28 28 86 200 0.55~3 7.5~100 280 9
NMRV090 35 35 103 210 0.75~4 7.5~100 425 13.5
NMRV110 42 42 127.5 270 1.1~5.5 7.5~100 585 43
NMRV130 45 45 147.5 320 1.5~7.5 7.5~100 850 67
NMRV150 50 50 170 320 2.2~15 7.5~100 1500 100
Remark: the weight is for basic model, without oil and motor
  • 7.5:1 - 100:1 ratios
  • Box sizes 30 - 90
  • Aluminum alloy housing for light weight design
  • Hardened worm shaft for increased durability
  • Two bearings on input and output shafts
  • IEC or NEMA motor input flanges
  • All units filled with synthetic oil
  • No vent plug or breather needed - maintenance free reducer
  • Double lip oil seals prevent leakage
  • Multiple mounting holes for all angle mounts
  • Epoxy paint applied to inside and outside of reducer to protect against rust
  • Hollow output bores with plug-in output shafts
  • 1-year warranty
NMRV Worm Gear Reducer with Aluminum Alloy Housing, Hardened Worm Shaft, and 0.06~22kw Power Range
NMRV Worm Gear Reducer with Aluminum Alloy Housing, Hardened Worm Shaft, and 0.06~22kw Power Range
NMRV Worm Gear Reducer with Aluminum Alloy Housing, Hardened Worm Shaft, and 0.06~22kw Power Range

NMRV Worm Gear Reducer with Aluminum Alloy Housing, Hardened Worm Shaft, and 0.06~22kw Power Range
NMRV Worm Gear Reducer with Aluminum Alloy Housing, Hardened Worm Shaft, and 0.06~22kw Power Range
NMRV Worm Gear Reducer with Aluminum Alloy Housing, Hardened Worm Shaft, and 0.06~22kw Power Range
NMRV Worm Gear Reducer with Aluminum Alloy Housing, Hardened Worm Shaft, and 0.06~22kw Power Range

If you need more technical data, welcome to contact us online!
