Specifications
Brand Name :
EVERGEAR
Model Number :
EH3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26
Certification :
ISO9001,ISO14001,ISO24001,CE
Place of Origin :
CHINA
MOQ :
1
Price :
$199
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
999999
Delivery Time :
30Days
Packaging Details :
Export strong wooden case and pallet
Power range :
4KW-4823KW
Ratio :
1.25 – 450
Output Speed :
1.7-1200rpm
Output torque :
2-900KNm
Input  speed :
750rpm,1000rpm,1500rpm,1800rpm
Input shaft diameter :
30mm-140mm
Output shaft diameter :
80mm-420mm
Reduction stage :
two transmission stages, three transmission stages, four transmission stages
Mounting way :
foot mounted, shaft mounted,shrink disc,spline shaft
Output way :
Solid shaft ,hollow shaft, hollow shaft , shrink disk,spline shaft
Weight :
190KGS-16500KGS
Oil supply :
Dip lubrication ,Forced lubrication
Cooling way :
without auxiliary cooling, with fan cooling, with cooling coil, with fan and cooling coil,with water cooling,with gear pump,with electric pump,with fan coolig,with independent fan cooling
Ambient temperature :
-40.00 [°C] ~ +50 [°C]
Direction of rotation of gear output shaft :
CW rotation or CCW
Corrosion protection :
Conservation acc. to Norm C1,C2,C3,C4,C5
Coating system :
Standard coating, finishing coat, for all climatic zones
Color :
blue RAL5010 /Grey RAL7031 or any color you need
Gear arrangement :
Helical gear ,Bevel gear
Backstop :
can be mounted with backstop if you request
Description
EB Series Right angle 90 degree Bevel helical Gearbox for Industrial Gear Drive
High-performance parallel helical gearbox designed for demanding industrial applications with superior reliability and efficiency.
Available Model Sizes
3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26
Key Advantages
  • Modular design system enabling multi-purpose use of housing and internal components
  • Progressive ratio of sizes for optimum selection and performance matching
  • Improved noise reduction through ground bevel gear teeth and noise-absorbing housings

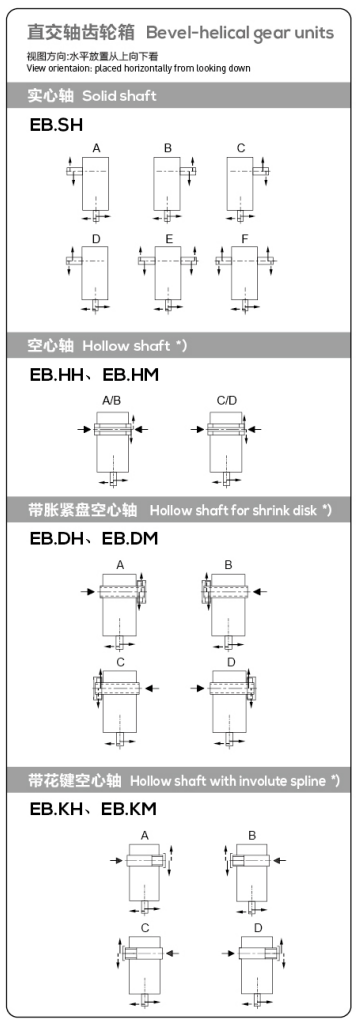

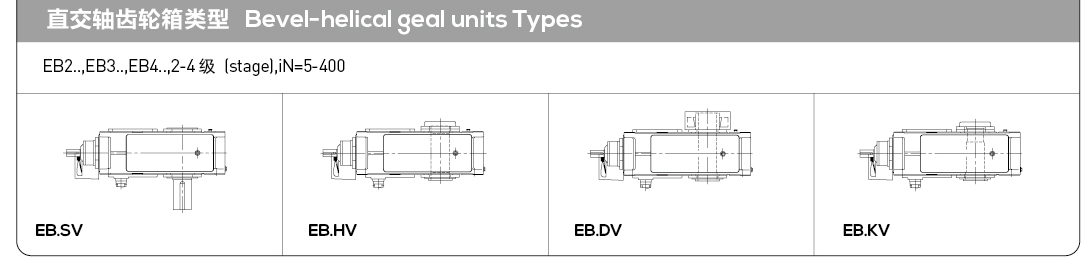

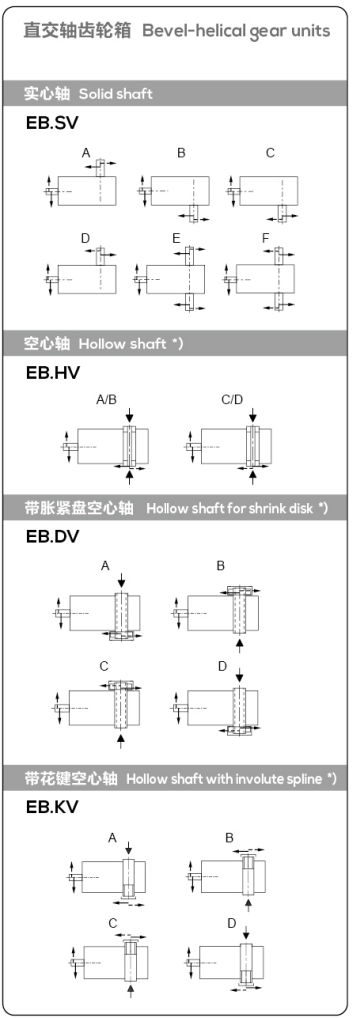

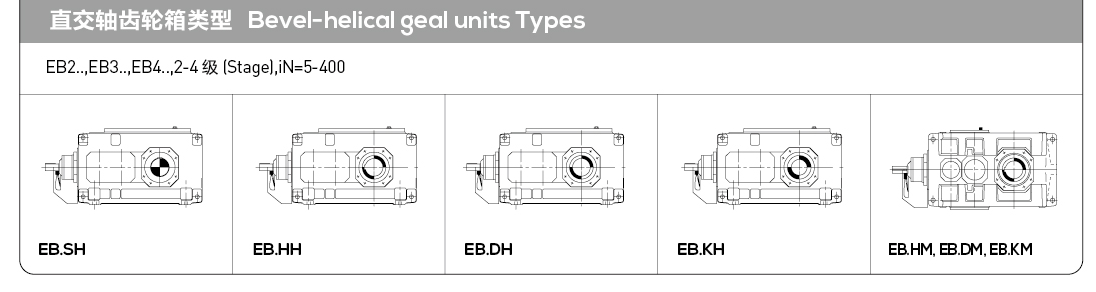

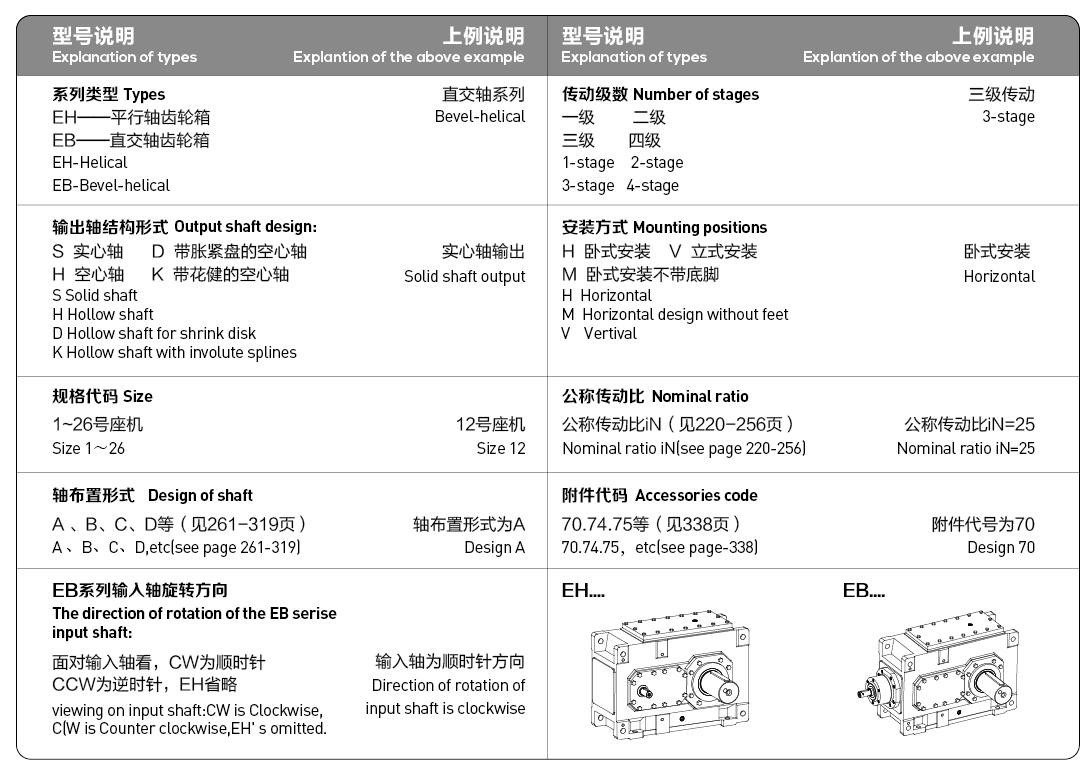

Helical Industrial Gear Unit Models

  • Bevel helical gear units

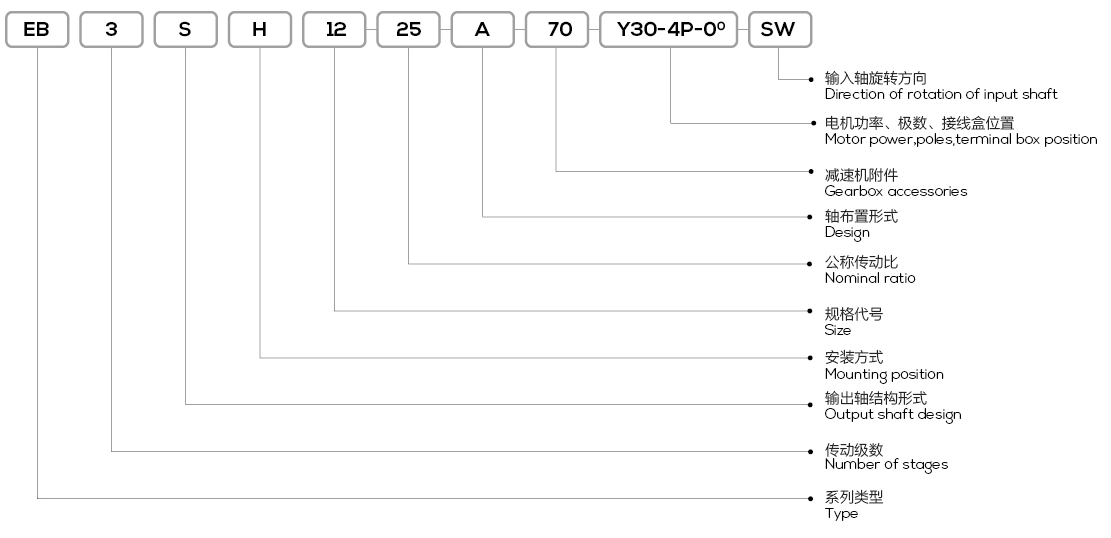

    EB2SH,EB2HH,EB2DH,EB2KH,EB2HM,EB2DM,EB2KM

    EB3SH,EB3HH,EB3DH,EB3KH,EB3HM,EB3DM,EB3KM

    EB4SH,EB4HH,EB4DH,EB4KH,EB4HM,EB4DM,EB4KM

    EB Series 90 Degree Right Angle Bevel Helical Gearbox with 4KW-4823KW Power Range and Modular Design for Industrial Gear DriveEB Series 90 Degree Right Angle Bevel Helical Gearbox with 4KW-4823KW Power Range and Modular Design for Industrial Gear DriveEB Series 90 Degree Right Angle Bevel Helical Gearbox with 4KW-4823KW Power Range and Modular Design for Industrial Gear Drive


EB Series 90 Degree Right Angle Bevel Helical Gearbox with 4KW-4823KW Power Range and Modular Design for Industrial Gear Drive
EB Series 90 Degree Right Angle Bevel Helical Gearbox with 4KW-4823KW Power Range and Modular Design for Industrial Gear DriveEB Series 90 Degree Right Angle Bevel Helical Gearbox with 4KW-4823KW Power Range and Modular Design for Industrial Gear Drive
EB Series 90 Degree Right Angle Bevel Helical Gearbox with 4KW-4823KW Power Range and Modular Design for Industrial Gear Drive


EB Series 90 Degree Right Angle Bevel Helical Gearbox with 4KW-4823KW Power Range and Modular Design for Industrial Gear Drive

EB Series 90 Degree Right Angle Bevel Helical Gearbox with 4KW-4823KW Power Range and Modular Design for Industrial Gear Drive





Wide Range of Applications
  • Bucket elevator drives
  • Separator drives
  • Water mixer drives
  • Conveyor drives
  • Dryer section drives
  • Mining industry drives
For detailed technical specifications and custom requirements, please contact our engineering team online for professional assistance.
