Specifications
Brand Name :
EVERGEAR
Model Number :
EQ
Certification :
ISO9001,ISO14001,ISO24001,CE
Place of Origin :
CHINA
MOQ :
1
Price :
$199
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
99999
Delivery Time :
40-60Days
Packaging Details :
Export strong wooden case and pallet
Power range: :
0.19KW-12934KW
Ratio :
25 – 4000
Output torque :
22-2600KNm
Input  speed :
500rpm,750rpm,1000rpm,1500rpm,1800rpm
Input shaft diameter :
30mm-190mm
Output shaft diameter :
120mm-640mm
Reduction stage :
two transmission stages, three transmission stages, four transmission stages

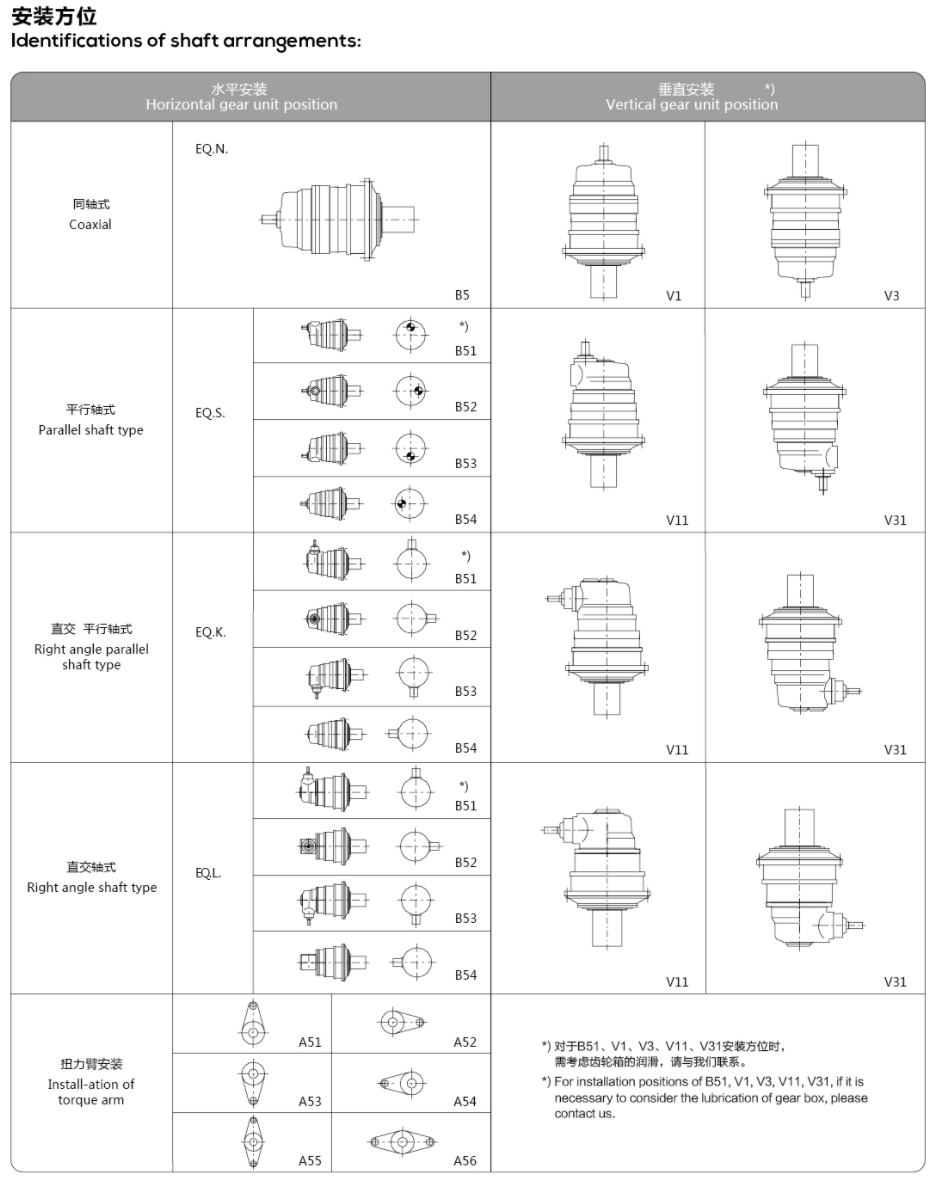

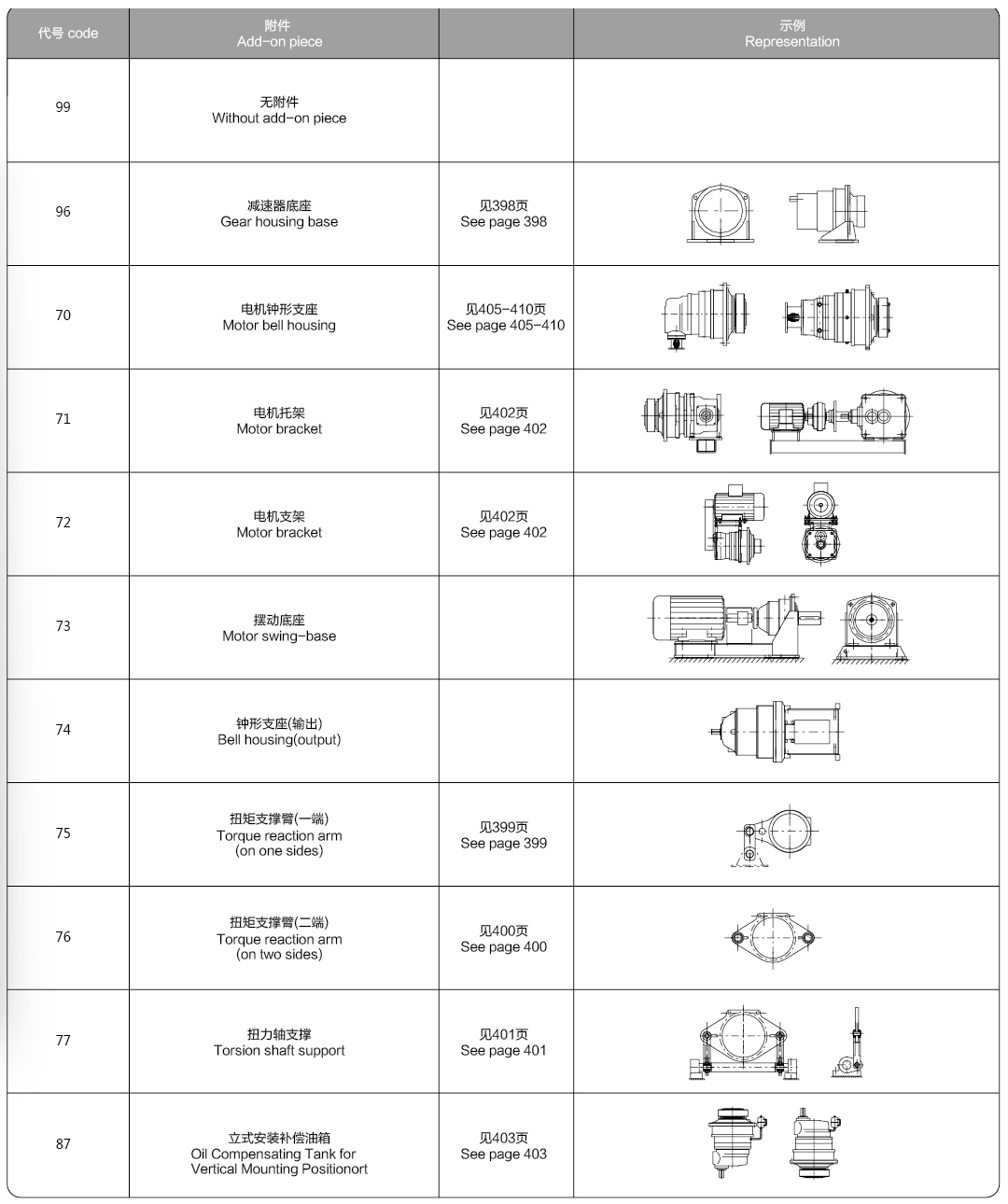

Mounting way :
shaft mounted, Gear housing base, Motor Braket, Motor swing base, Torque arm supporting,Involute Spline shaft
Output way :
Solid shaft ,hollow shaft, hollow shaft for shrink disk ,Involute Spline shaft
Ambient temperature :
-40.00 [°C] ~ +50 [°C]
Direction of rotation of gear output shaft :
CW rotation or CCW
Corrosion protection :
Conservation acc. to Norm C1,C2,C3,C4,C5
Coating system :
Standard coating, finishing coat, for all climatic zones
Lubrication :
Dip lubrication, Splash lubrication, Pump lubrication
Shaft Key :
Parallel shaft key and Keyway ,shrink disk,Involute spline
Color :
blue RAL5010 /Grey RAL7031 or any color you need
Description
EQ Series Right Angle Planetary Gear Reducer With High Power for Crushing Machines
The EQ series planetary gear reducer offers advanced performance and flexibility for industrial applications with modular design and optimized engineering.
Available Model Sizes
9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36
Key Advantages
  • Modular design system for multi-purpose use of housing and internal components
  • Progressive ratio of sizes for optimum selection and application matching
  • Improved noise reduction through grounded bevel gear teeth and noise-absorbing housings
Gearbox Overview
  1. EQ series features gear speed reducers with one or two free wheels
  2. Flexible combination types with modular design for versatile configurations
  3. Compact design with small volume, light weight, wide transmission ratio range, high efficiency, and stable operation
  4. High-rigidity ductile iron housing with superior anti-shock performance

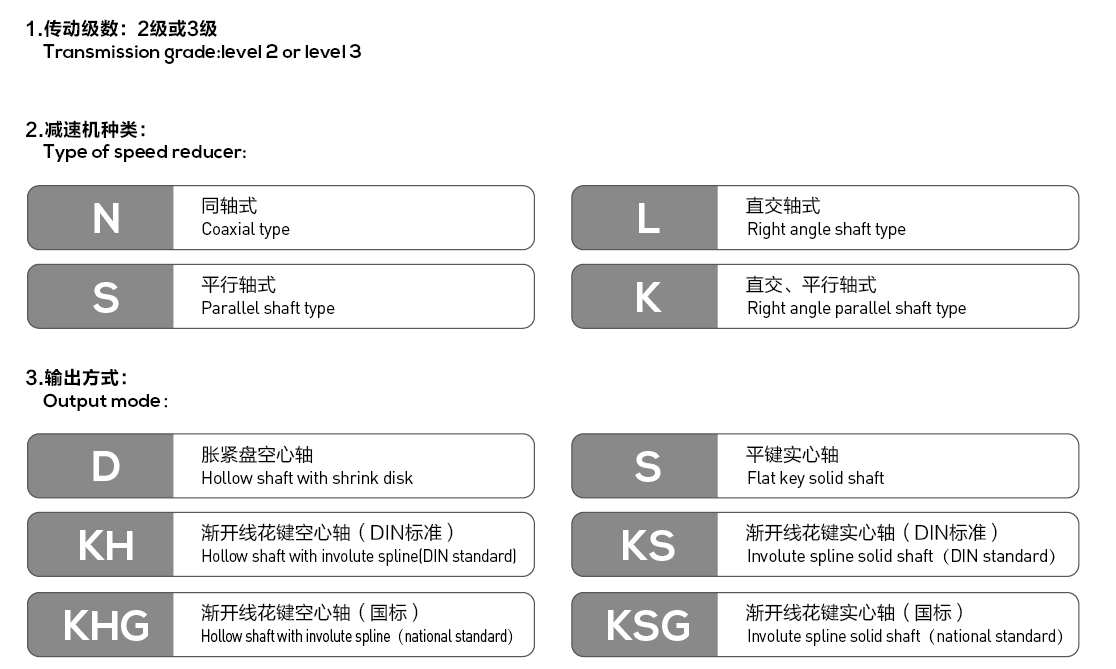

  5. Input modes: coaxial type, parallel shaft type, right angle shaft type, right angle parallel shaft type
  6. Output modes: expansion plate hollow shaft, involute spline hollow shaft (DIN standard), involute spline hollow shaft (national standard), flat key solid shaft, involute spline solid shaft (DIN standard), involute spline solid shaft (national standard)
Working Environment Specifications
  1. Operating temperature range: -40°C to 50°C (lubrication heating required below 0°C)
  2. Maximum operating altitude: 1,000 meters above sea level
  3. Relative humidity: less than 85%
  4. Maximum input rotational speed: 1800 RPM
  5. Suitable for normal and reverse rotation applications
  6. Universal industrial compatibility across all industry sectors
  7. Consult manufacturer for specialized operating conditions
EQ Series Right Angle Planetary Gear Reducer with Modular Design for High Power Crushing Applications EQ Series Right Angle Planetary Gear Reducer with Modular Design for High Power Crushing Applications EQ Series Right Angle Planetary Gear Reducer with Modular Design for High Power Crushing Applications EQ Series Right Angle Planetary Gear Reducer with Modular Design for High Power Crushing Applications
Need more technical data? Contact us online for comprehensive specifications and application support.
