Specifications
Model :
520, CALIBER
Year :
2003-2005, 1988-1992, 1995-1996, 2000-2005, 2006-2008
Type :
Other
Voltage :
12V/24V
Car Fitment :
BMW - Europe, Dodge - Europe
Power :
12W
Applicable Models :
all car
Combination :
SDK
Place of Origin :
Guangdong, China
Brand Name :
AOT
Model Number :
AOT
Warranty :
12 Months
Material :
ABS/PVC
Pins Plating :
Nickel/Golden
Pins Qty :
1-16p
Temperature :
-20~80℃
Pins :
9PINS
Wire color :
Green
Cable length :
L=1M
Weight :
150g
MOQ :
50pcs
Product Name :
J1939 type2
Port :
shenzhen
Supply Ability :
5000 Piece/Pieces per Month
Price :
CN¥36.32/pieces 1-499 pieces
Description

16PIN OBD Cable OBDII J1962 Male Connector to Open Plug Wire OBD Diagnostic Extension Cable

Product Description

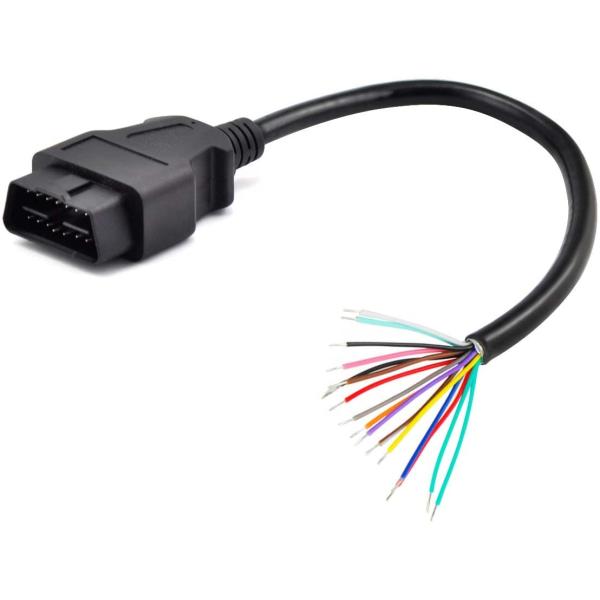

  • 16 Pin OBDII J1962 male connector pigtail cable open wire
  • All 16 Pins male connected with different colors wires for different applications
  • Cable Pigtail Length: 30cm / 12'',it can be used for 12V Car and 24V Truck
  • Great for DIY and homemade projects,DIY Mobley USB Adapter
  • One of pinout, 1-Brown ,2-Brown/white,3-Red,4-Red/white,5-Green,6-Green/white,7-Black,8-Black/white,9-Oranges,10-White,11-Yellow,12-Pink,13-Grey,14-Teal,15-Blue,16-Purple.Different device with different pinout, please check it before install it, thanks

Specification
OBD connectors
OBD2 male 12V/ 24V
Pins of OBD connector
Copper,nickel-plated or gold-plated
Overmold of OBD connector
slim design, right angle 90-degree, or standard straight
OBD2 connector
standard,16pin
Cable shape
around OD:7.0,8.0 or customized
Wire
26AWG, pure copper
Material of overmolded part
PVC
Pin assignment or pin out
customized
Cable length
customized
Pins or terminals
copper, nickel-plated or gold-plated
Contact Resistance
3 ohm max.
Insulation Resistance
5M ohm min.
Working Temperature
−25℃ ~ +85℃
Testing
100% open, short and mis-wire testing
Testing Voltage
DC300V 5M ohm/10ms
Warranty
1 year

16PIN OBD Cable OBDII J1962 Male Connector to Open Plug Wire OBD Diagnostic Extension Cable 150g Voltage 12V/24V 12V/24V

Related Products

16PIN OBD Cable OBDII J1962 Male Connector to Open Plug Wire OBD Diagnostic Extension Cable 150g Voltage 12V/24V 12V/24V 16PIN OBD Cable OBDII J1962 Male Connector to Open Plug Wire OBD Diagnostic Extension Cable 150g Voltage 12V/24V 12V/24V 16PIN OBD Cable OBDII J1962 Male Connector to Open Plug Wire OBD Diagnostic Extension Cable 150g Voltage 12V/24V 12V/24V

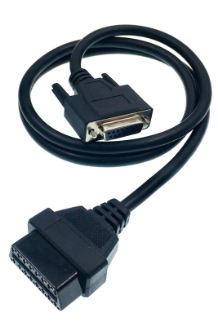

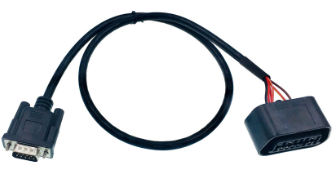

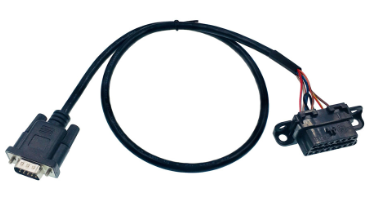

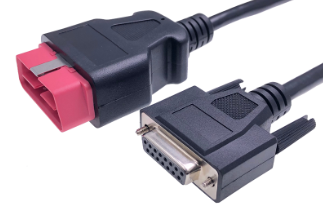

16P OBD2 M TO DB25 F OBD2 male to DB9 F OBD2 F to DB25 F
16PIN OBD Cable OBDII J1962 Male Connector to Open Plug Wire OBD Diagnostic Extension Cable 150g Voltage 12V/24V 12V/24V 16PIN OBD Cable OBDII J1962 Male Connector to Open Plug Wire OBD Diagnostic Extension Cable 150g Voltage 12V/24V 12V/24V 16PIN OBD Cable OBDII J1962 Male Connector to Open Plug Wire OBD Diagnostic Extension Cable 150g Voltage 12V/24V 12V/24V

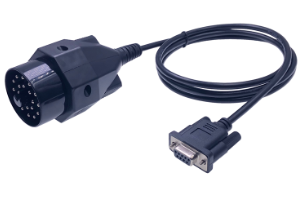

OBD2 BWM to DB9 M OBD2 BENZ to DB9 M OBD2 Ford to DB9 M
16PIN OBD Cable OBDII J1962 Male Connector to Open Plug Wire OBD Diagnostic Extension Cable 150g Voltage 12V/24V 12V/24V 16PIN OBD Cable OBDII J1962 Male Connector to Open Plug Wire OBD Diagnostic Extension Cable 150g Voltage 12V/24V 12V/24V 16PIN OBD Cable OBDII J1962 Male Connector to Open Plug Wire OBD Diagnostic Extension Cable 150g Voltage 12V/24V 12V/24V

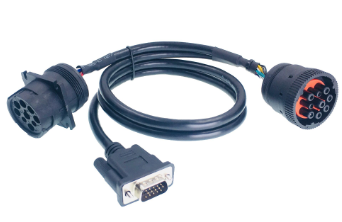

J1939 M to F+DB9 M J1939 type2 M to F+DB15F BMW 20P to DB9 F
